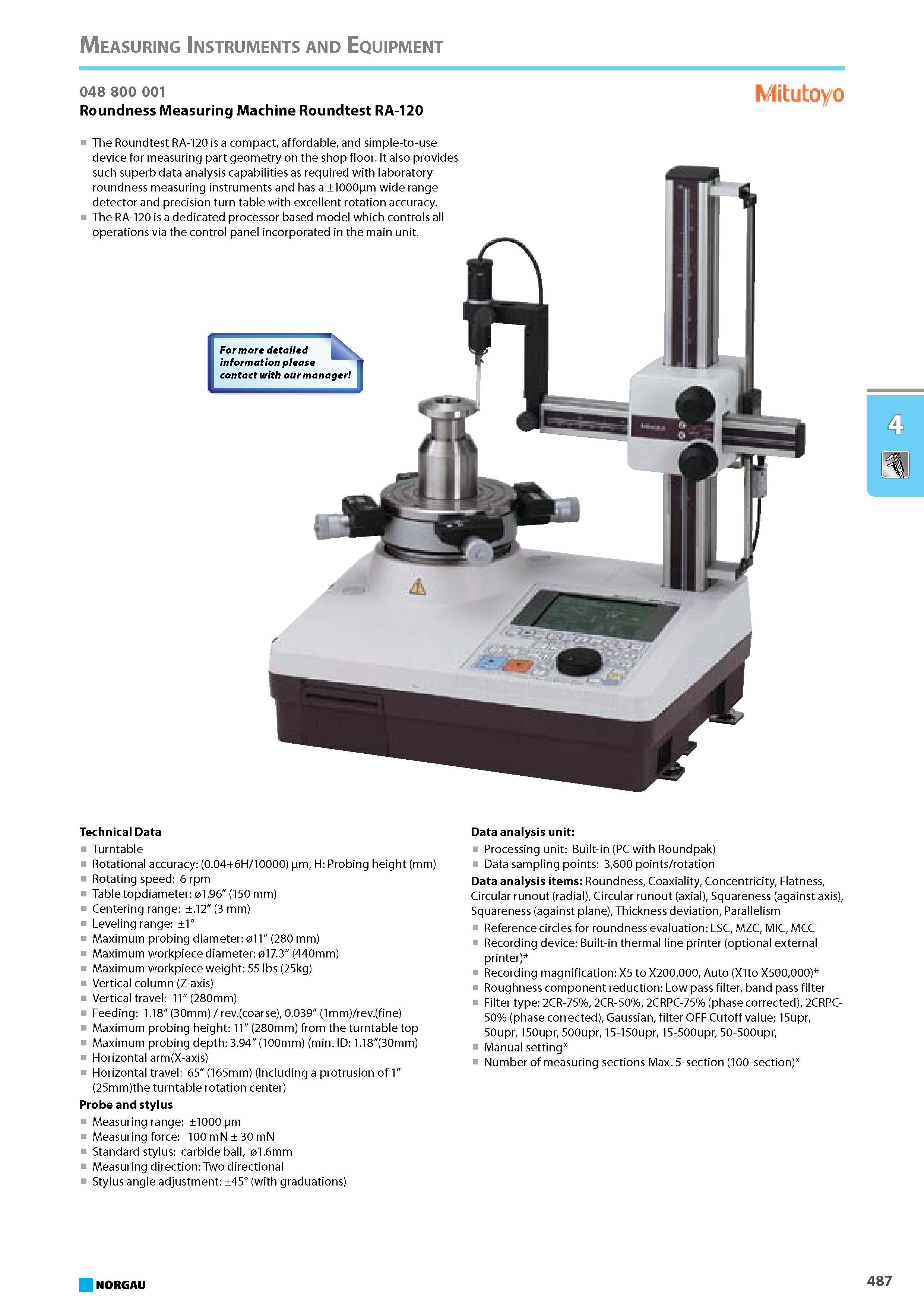

The Roundtest RA-120 is a compact affordable and simple-to-use device for measuring part geometry on the shop floor. It also provides such superb data analysis capabilities as required with laboratory roundness measuring instruments and has a 1000pm wide range detector and precision turn table with excellent rotation accuracy. The RA-120 is a dedicated processor based model which controls all operations via the control panel incorporated in the main unit. Technical Data Turntable Rotational accuracy (0.04+6H 10000) pm H Probing height (mm) Rotating speed 6 rpm Table topdiameter 01.96 (150 mm) Centering range .12 (3 mm) Leveling range 1 Maximum probing diameter 011 (280 mm) Maximum workpiece diameter 017.3 (440mm) Maximum workpiece weight 55 lbs (25kg) Vertical column (Z-axis) Vertical travel 11 (280mm) Feeding 1.18 (30mm) rev.(coarse) 0.039 (1mm) rev.(fine) Maximum probing height 11 (280mm) from the turntable top Maximum probing depth 3.94 (100mm) (min. ID 1.18(30mm) Horizontal arm(X-axis) Horizontal travel 65 (165mm) (Including a protrusion of 1 (25mm)the turntable rotation center) Probe and stylus Measuring range 1000 pm Measuring force 100 mN 30 mN Standard stylus carbide ball 01.6mm Measuring direction Two directional Stylus angle adjustment 45 (with graduations) Data analysis unit Processing unit Built-in (PC with Roundpak) Data sampling points 3600 points rotation Data analysis items Roundness Coaxiality Concentricity Flatness Circular runout (radial) Circular runout (axial) Squareness (against axis) Squareness (against plane) Thickness deviation Parallelism Reference circles for roundness evaluation LSC MZC MIC MCC Recording device Built-in thermal line printer (optional external printer) Recording magnification X5 to X200000 Auto (X1to X500000) Roughness component reduction Low pass filter band pass filter Filter type 2CR-75% 2CR-50% 2CRPC-75% (phase corrected) 2CRPC-50% (phase corrected) Gaussian filter OFF Cutoff value 15upr 50upr 150upr 500upr 15-150upr 15-500upr 50-500upr Manual setting Number of measuring sections Max. 5-section (100-section) NORGAU 487 Measuring Instruments and Equipment 048 800 001 Roundness Measuring Machine Roundtest RA-120
