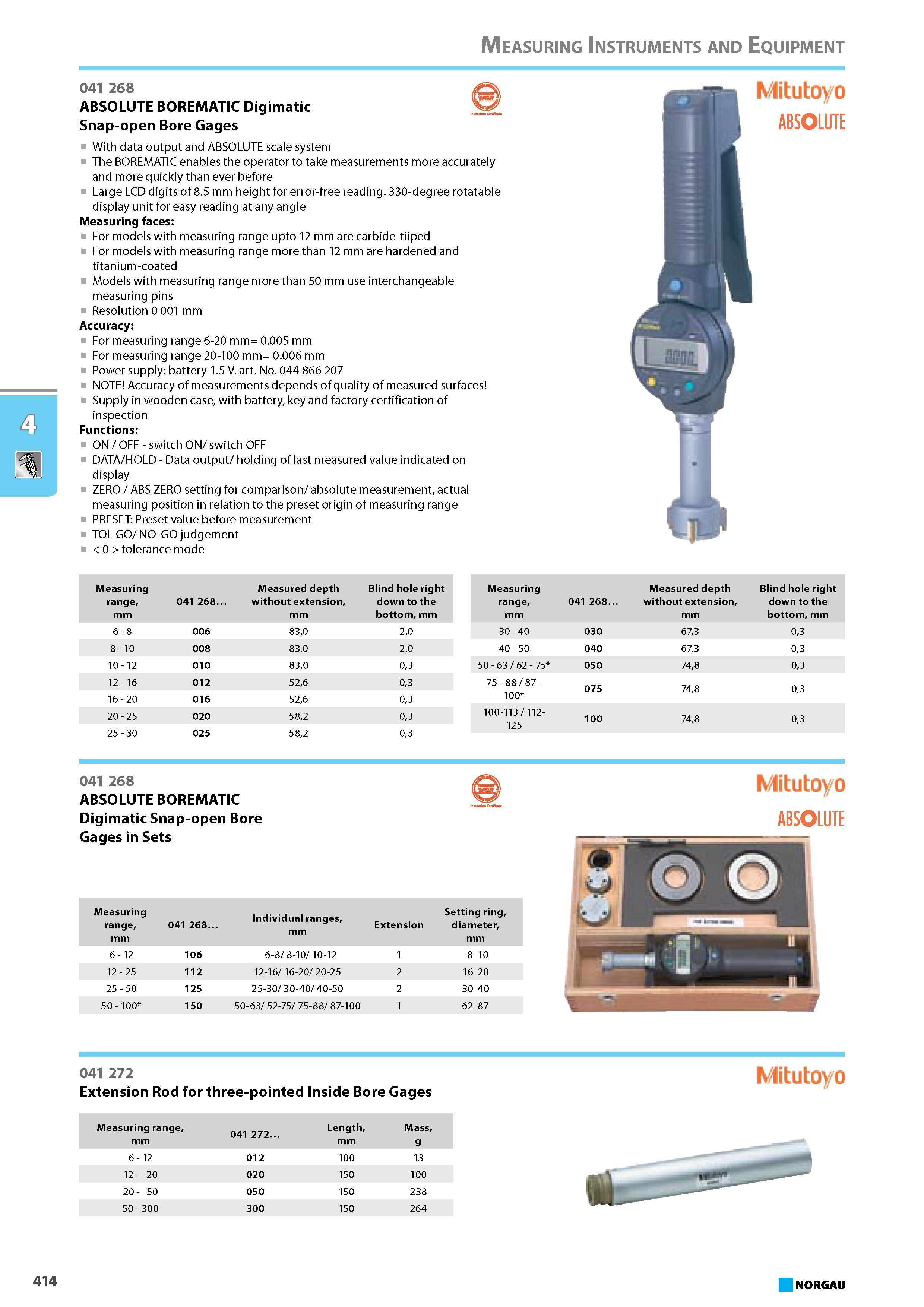

ABSOLUTE BOREMATIC Digimatic Snap-open Bore Gages With data output and ABSOLUTE scale system The BOREMATIC enables the operator to take measurements more accurately an

ABSOLUTE BOREMATIC Digimatic Snap-open Bore Gages With data output and ABSOLUTE scale system The BOREMATIC enables the operator to take measurements more accurately and more quickly than ever before Large LCD digits of 8.5 mm height for error-free reading. 330-degree rotatable display unit for easy reading at any angle Measuring faces For models with measuring range upto 12 mm are carbide-tiiped For models with measuring range more than 12 mm are hardened and titanium-coated Models with measuring range more than 50 mm use interchangeable measuring pins Resolution 0.001 mm Accuracy For measuring range 6-20 mm 0.005 mm For measuring range 20-100 mm 0.006 mm Power supply battery 1.5 V art. No. 044 866 207 NOTE Accuracy of measurements depends of quality of measured surfaces Supply in wooden case with battery key and factory certification of inspection Functions ON OFF - switch ON switch OFF DATA HOLD - Data output holding of last measured value indicated on display ZERO ABS ZERO setting for comparison absolute measurement actual measuring position in relation to the preset origin of measuring range PRESET Preset value before measurement TOL GO NO-GO judgement 0 tolerance mode Measuring range mm 041 268. Measured depth without extension mm Blind hole right down to the bottom mm 6 - 8 006 830 20 8 - 10 008 830 20 10 - 12 010 830 03 12 - 16 012 526 03 16 - 20 016 526 03 20 - 25 020 582 03 25 - 30 025 582 03 Measuring Measured depth Blind hole right range 041 268. without extension down to the mm bottom mm 30 - 40 030 673 03 40 - 50 040 673 03 50 - 63 62 - 75 050 748 03 75-88 87- 100 075 748 03 100-113 112-125 100 748 03 041 268 ABSOLUTE BOREMATIC Digimatic Snap-open Bore ABSOLUTE Gages in Sets Measuring range mm 041 268. Individual ranges mm Extension Setting ring diameter mm 6 - 12 106 6-8 8-10 10-12 1 8 10 12 - 25 112 12-16 16-20 20-25 2 16 20 25 - 50 125 25-30 30-40 40-50 2 30 40 50 - 100 150 50-63 52-75 75-88 87-100 1 62 87 041 272 Extension Rod for three-pointed Inside Bore Gages Measuring range mm 041 272. Length mm Mass g 6 - 12 012 100 13 12 - 20 020 150 100 20 - 50 050 150 238 50 - 300 300 150 264 NORGAU Measuring Instruments and Equipment 414 041 268
