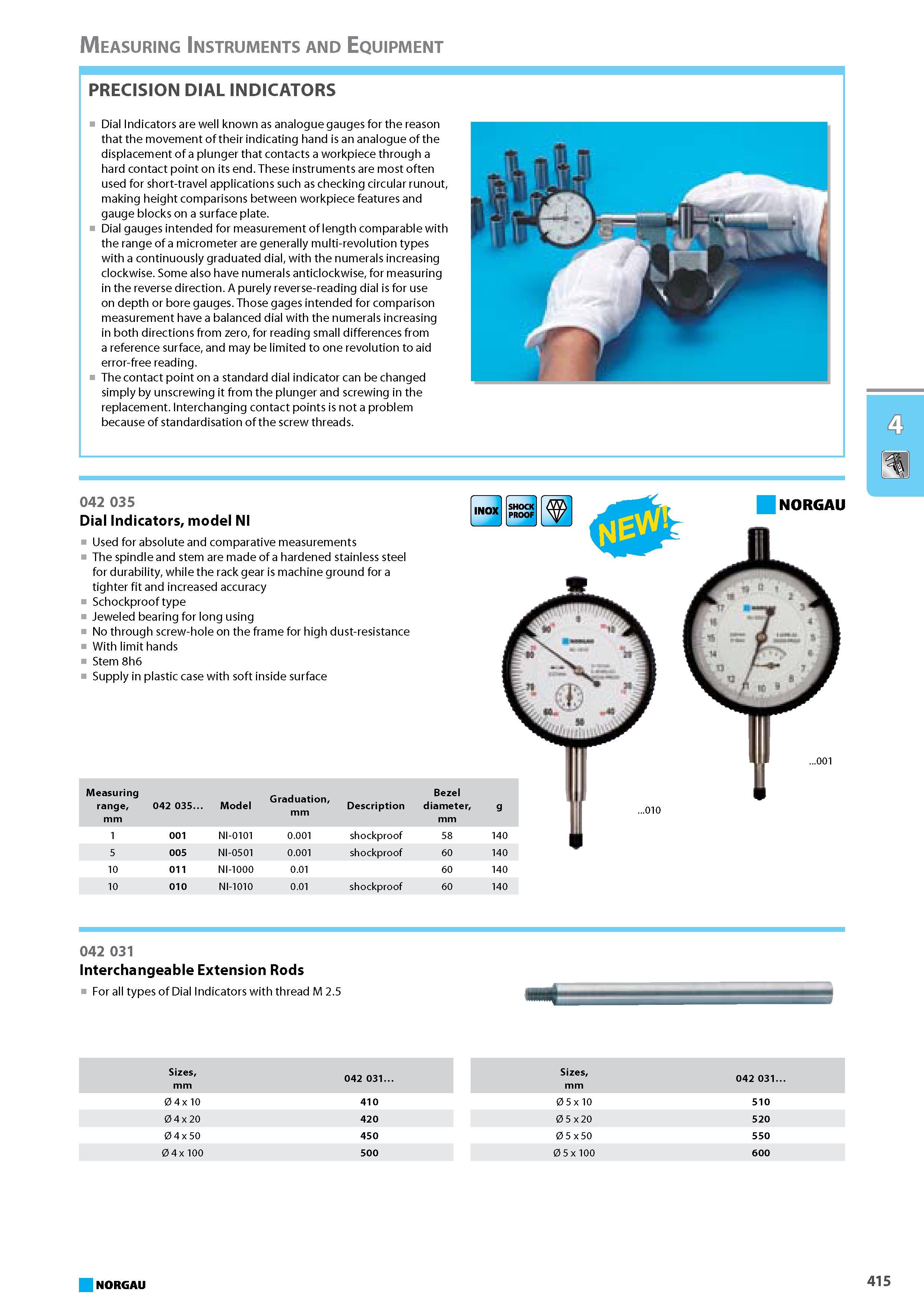

Dial Indicators are well known as analogue gauges for the reason that the movement of their indicating hand is an analogue of the displacement of a plunger that contac

Dial Indicators are well known as analogue gauges for the reason that the movement of their indicating hand is an analogue of the displacement of a plunger that contacts a workpiece through a hard contact point on its end. These instruments are most often used for short-travel applications such as checking circular runout making height comparisons between workpiece features and gauge blocks on a surface plate. Dial gauges intended for measurement of length comparable with the range of a micrometer are generally multi-revolution types with a continuously graduated dial with the numerals increasing clockwise. Some also have numerals anticlockwise for measuring in the reverse direction. A purely reverse-reading dial is for use on depth or bore gauges. Those gages intended for comparison measurement have a balanced dial with the numerals increasing in both directions from zero for reading small differences from a reference surface and may be limited to one revolution to aid error-free reading. The contact point on a standard dial indicator can be changed simply by unscrewing it from the plunger and screwing in the replacement. Interchanging contact points is not a problem because of standardisation of the screw threads. 042 035 Dial Indicators model NI Used for absolute and comparative measurements The spindle and stem are made of a hardened stainless steel for durability while the rack gear is machine ground for a tighter fit and increased accuracy Schockproof type Jeweled bearing for long using No through screw-hole on the frame for high dust-resistance With limit hands Stem 8h6 Supply in plastic case with soft inside surface NORGAU Measuring range mm 042 035. Model Graduation mm Description Bezel diameter mm g 001 NI-0101 0.001 shockproof 58 140 5 005 NI-0501 0.001 shockproof 60 140 10 011 NI-1000 0.01 60 140 10 010 NI-1010 0.01 shockproof 60 140 042 031 Interchangeable Extension Rods For all types of Dial Indicators with thread M 2.5 NORGAU 415 Measuring Instruments and Equipment PRECISION DIAL INDICATORS
