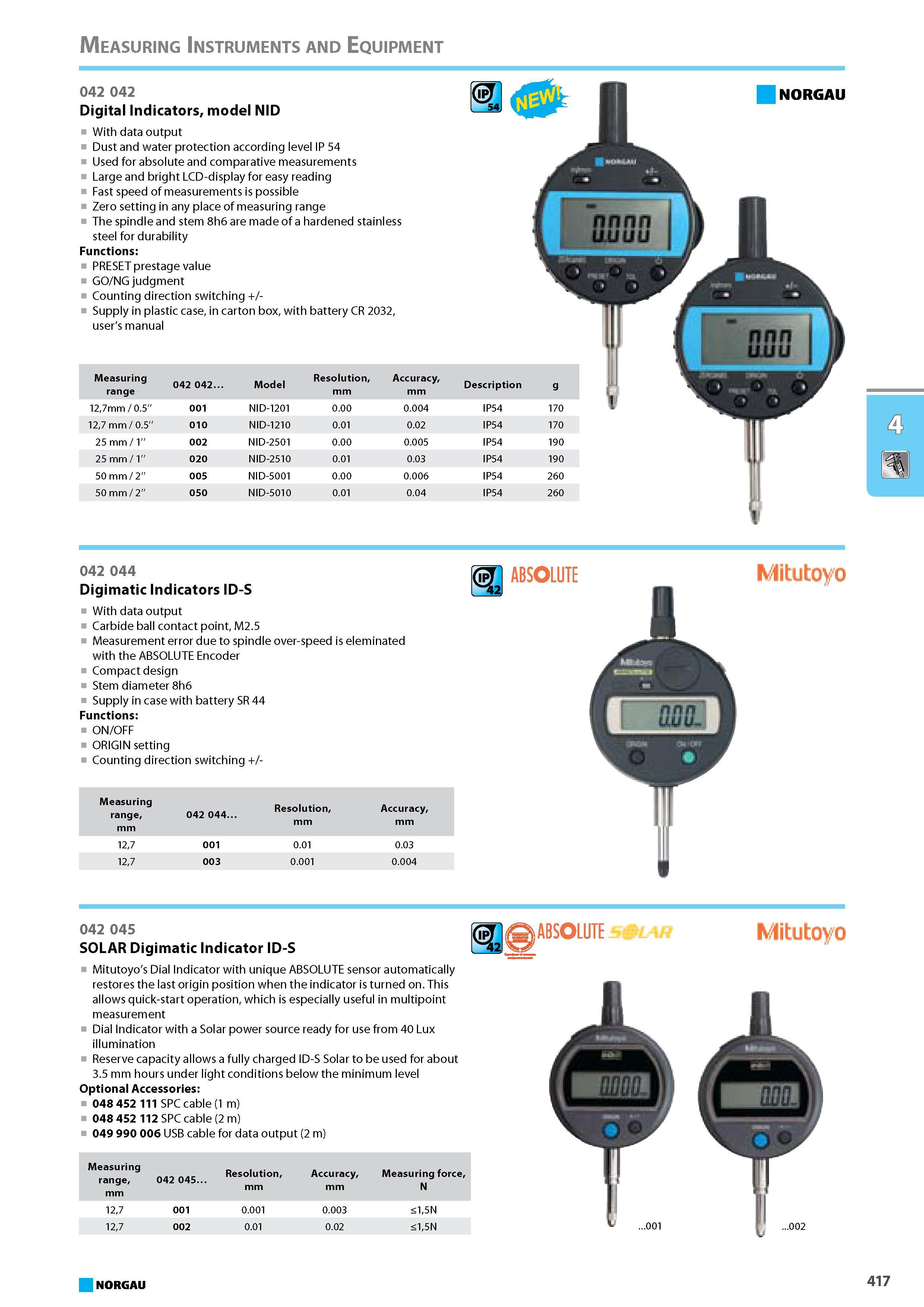

Digital Indicators model NID With data output Dust and water protection according level IP 54 Used for absolute and comparative measurements Large and bright LCD-display for easy reading Fast speed of measurements is possible Zero setting in any place of measuring range The spindle and stem 8h6 are made of a hardened stainless steel for durability Functions PRESET prestage value GO NG judgment Counting direction switching - Supply in plastic case in carton box with battery CR 2032 user's manual NORGAU 042 044 Digimatic Indicators ID-S With data output Carbide ball contact point M2.5 Measurement error due to spindle over-speed is eleminated with the ABSOLUTE Encoder Compact design Stem diameter 8h6 Supply in case with battery SR 44 Functions ON OFF ORIGIN setting Counting direction switching - Measuring range mm 042 044. Resolution mm Accuracy mm 127 001 0.01 0.03 127 003 0.001 0.004 042 045 SOLAR Digimatic Indicator ID-S Mitutoyo's Dial Indicator with unique ABSOLUTE sensor automatically restores the last origin position when the indicator is turned on. This allows quick-start operation which is especially useful in multipoint measurement Dial Indicator with a Solar power source ready for use from 40 Lux illumination Reserve capacity allows a fully charged ID-S Solar to be used for about 3.5 mm hours under light conditions below the minimum level Optional Accessories 048 452 111 SPC cable (1 m) 048 452 112 SPC cable (2 m) 049 990 006 USB cable for data output (2 m) .ABSOLUTE Measuring range mm 042 045. Resolution mm Accuracy mm Measuring force N 127 001 0.001 0.003 15N 127 002 0.01 0.02 15N NORGAU ABSOLUTE 001 002 417 Measuring Instruments and Equipment 127mm 0.5'' 001 NID-1201 0.00 0.004 IP54 170 127 mm 0.5'' 010 NID-1210 0.01 0.02 IP54 170 25 mm 1'' 002 NID-2501 0.00 0.005 IP54 190 25 mm 1'' 020 NID-2510 0.01 0.03 IP54 190 50 mm 2'' 005 NID-5001 0.00 0.006 IP54 260 50 mm 2'' 050 NID-5010 0.01 0.04 IP54 260 Measuring 042 042. Model Resolution Accuracy Description g 042 042
