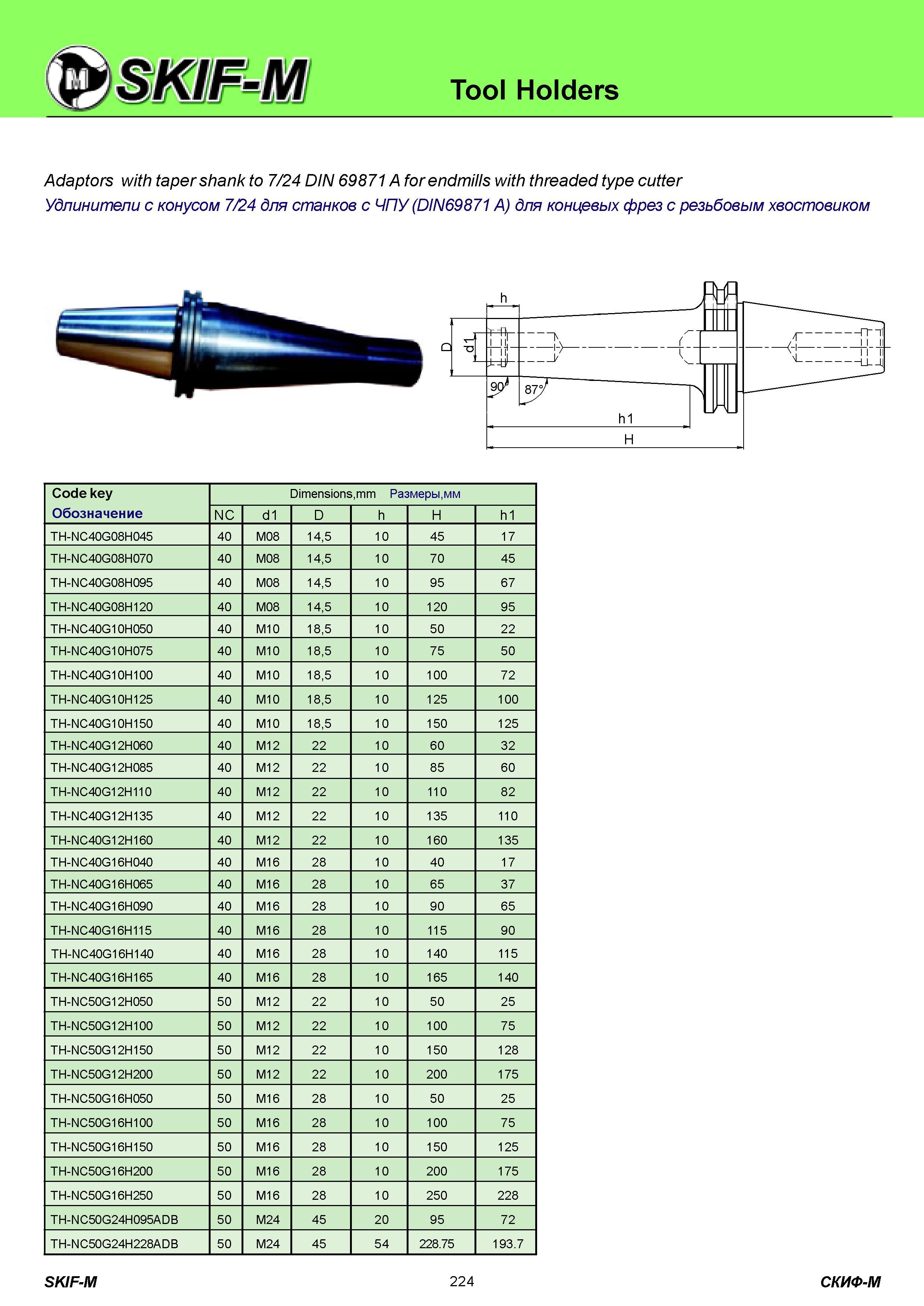

Tool Holders Adaptors with taper shank to 7/24 DIN 69871A for endmills with threaded type cutter Удлинители c конусом 7/24 для станков с ЧПУ (DIN69871A)

Tool Holders Adaptors with taper shank to 7/24 DIN 69871A for endmills with threaded type cutter Удлинители c конусом 7/24 для станков с ЧПУ (DIN69871A) для концевых фрез с резьбовым хвостовиком Code key Обозначение Dimensions,mm Размеры,мм NC d1 D h H h1 TH-NC40G08H045 40 M08 14,5 10 45 17 TH-NC40G08H070 40 M08 14,5 10 70 45 TH-NC40G08H095 40 M08 14,5 10 95 67 TH-NC40G08H120 40 M08 14,5 10 120 95 TH-NC40G10H050 40 M10 18,5 10 50 22 TH-NC40G10H075 40 M10 18,5 10 75 50 TH-NC40G10H100 40 M10 18,5 10 100 72 TH-NC40G10H125 40 M10 18,5 10 125 100 TH-NC40G10H150 40 M10 18,5 10 150 125 TH-NC40G12H060 40 M12 22 10 60 32 TH-NC40G12H085 40 M12 22 10 85 60 TH-NC40G12H110 40 M12 22 10 110 82 TH-NC40G12H135 40 M12 22 10 135 110 TH-NC40G12H160 40 M12 22 10 160 135 TH-NC40G16H040 40 M16 28 10 40 17 TH-NC40G16H065 40 M16 28 10 65 37 TH-NC40G16H090 40 M16 28 10 90 65 TH-NC40G16H115 40 M16 28 10 115 90 TH-NC40G16H140 40 M16 28 10 140 115 TH-NC40G16H165 40 M16 28 10 165 140 TH-NC50G12H050 50 M12 22 10 50 25 TH-NC50G12H100 50 M12 22 10 100 75 TH-NC50G12H150 50 M12 22 10 150 128 TH-NC50G12H200 50 M12 22 10 200 175 TH-NC50G16H050 50 M16 28 10 50 25 TH-NC50G16H100 50 M16 28 10 100 75 TH-NC50G16H150 50 M16 28 10 150 125 TH-NC50G16H200 50 M16 28 10 200 175 TH-NC50G16H250 50 M16 28 10 250 228 TH-NC50G24H095ADB 50 M24 45 20 95 72 TH-NC50G24H228ADB 50 M24 45 54 228.75 193.7 SKIF-M 224 СКИФ-М
