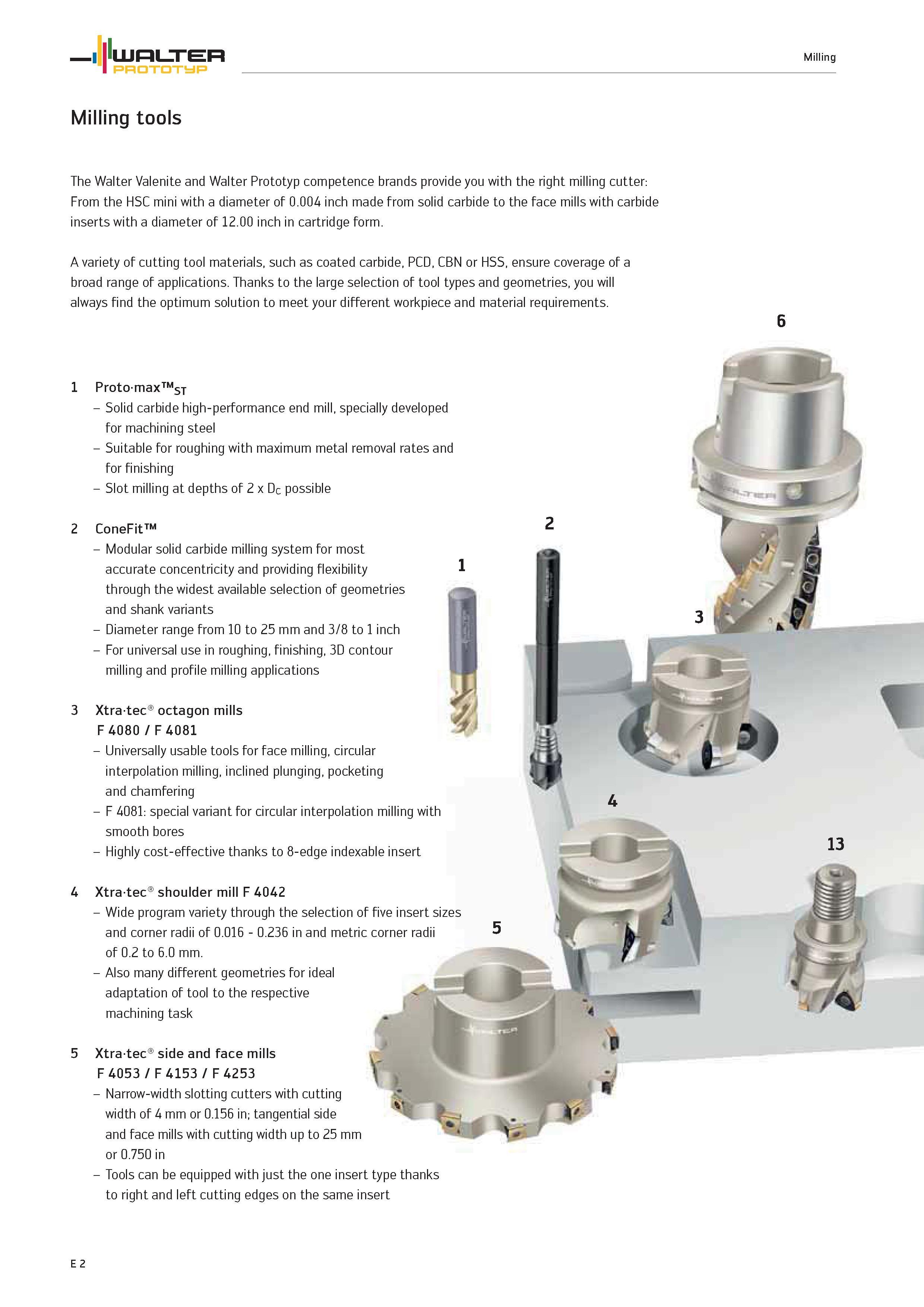

The Walter Valenite and Walter Prototyp competence brands provide you with the right milling cutter From the HSC mini with a diameter of 0.004 inch made from solid carbide to the face mills with carbide inserts with a diameter of 12.00 inch in cartridge form. A variety of cutting tool materials, such as coated carbide, PCD, CBN or HSS, ensure coverage of a broad range of applications. Thanks to the large selection of tool types and geometries, you will always find the optimum solution to meet your different workpiece and material requirements. 1 Protomax sT Solid carbide high-performance end mill, specially developed for machining steel Suitable for roughing with maximum metal removal rates and for finishing Slot milling at depths of 2 x Dc possible 2 ConeFit Modular solid carbide milling system for most accurate concentricity and providing flexibility through the widest available selection of geometries and shank variants Diameter range from 10 to 25 mm and 3/8 to 1 inch For universal use in roughing, finishing, 3D contour milling and profile milling applications 3 Xtra-tec octagon mills F 4080 / F 4081 Universally usable tools for face milling, circular interpolation milling, inclined plunging, pocketing and chamfering F 4081 special variant for circular interpolation milling with smooth bores Highly cost-effective thanks to 8-edge indexable insert 4 Xtra-tec shoulder mill F 4042 Wide program variety through the selection of five insert sizes and corner radii of 0.016 0.236 in and metric corner radii of 0.2 to 6.0 mm. Also many different geometries for ideal adaptation of tool to the respective machining task 5 Xtra-tec side and face mills F4053/F4153/F4253 Narrow-width slotting cutters with cutting width of 4 mm or 0.156 in tangential side and face mills with cutting width up to 25 mm or 0.750 in Tools can be equipped with just the one insert type thanks to right and left cutting edges on the same insert E 2 WALTER Milling PROTOTYP Milling tools
