For use in shoulder milling and for trimming operations on an extremely wide range of materials Diameter range from 20 to 125 mm or 0 750 3 00 in

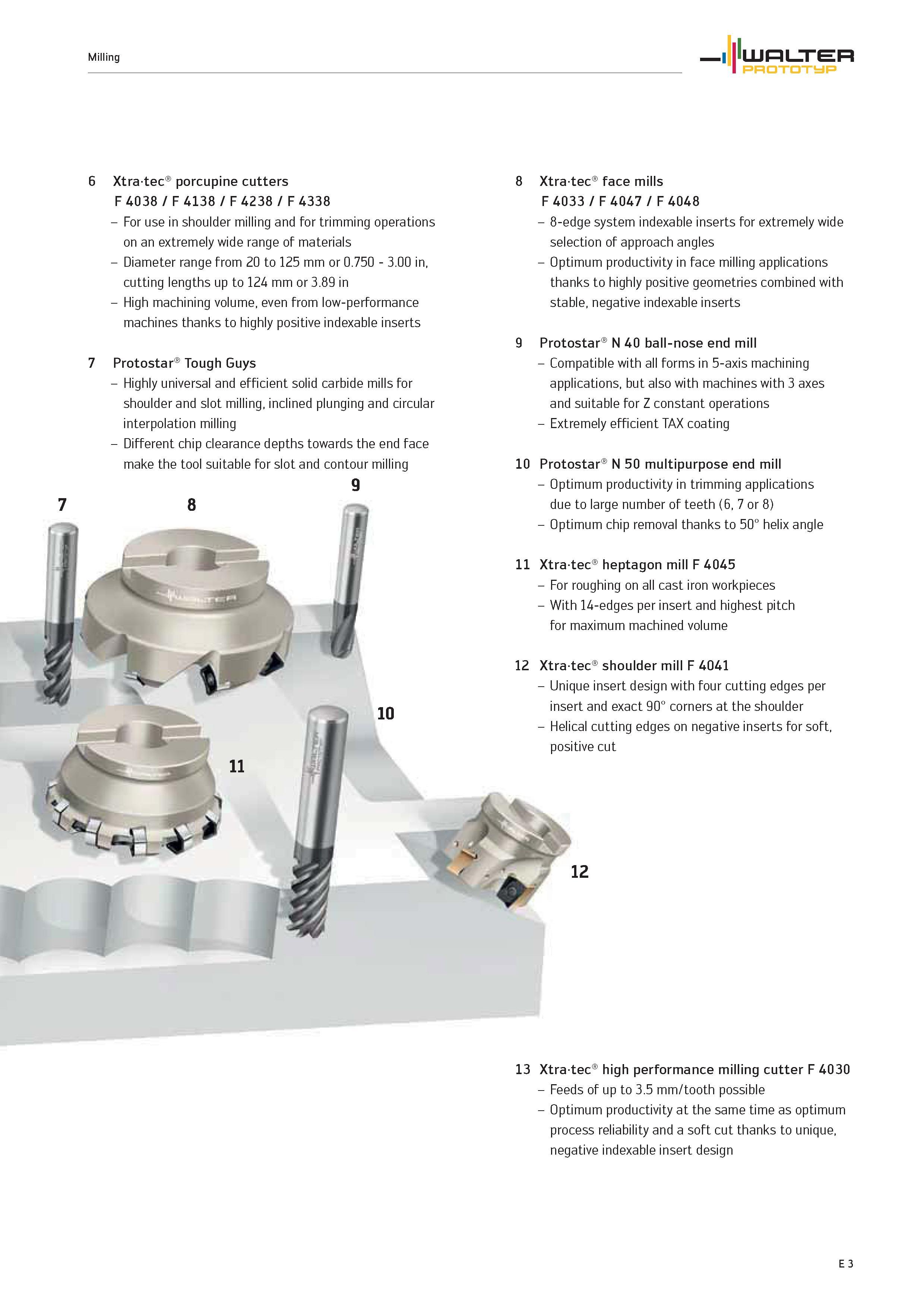

For use in shoulder milling and for trimming operations on an extremely wide range of materials Diameter range from 20 to 125 mm or 0.750 3.00 in, cutting lengths up to 124 mm or 3.89 in High machining volume, even from low-performance machines thanks to highly positive indexable inserts 7 Protostar Tough Guys Highly universal and efficient solid carbide mills for shoulder and slot milling, inclined plunging and circular interpolation milling Different chip clearance depths towards the end face make the tool suitable for slot and contour milling 8 Xtratec face mills F4033/F4047/F4048 8-edge system indexable inserts for extremely wide selection of approach angles Optimum productivity in face milling applications thanks to highly positive geometries combined with stable, negative indexable inserts 9 Protostar N 40 ball-nose end mill Compatible with all forms in 5-axis machining applications, but also with machines with 3 axes and suitable for Z constant operations Extremely efficient TAX coating 10 Protostar N 50 multipurpose end mill Optimum productivity in trimming applications due to large number of teeth (6, 7 or 8) Optimum chip removal thanks to 50° helix angle 11 Xtratec heptagon mill F 4045 For roughing on all cast iron workpieces With 14-edges per insert and highest pitch for maximum machined volume 12 Xtra tec shoulder mill F 4041 Unique insert design with four cutting edges per insert and exact 90° corners at the shoulder Helical cutting edges on negative inserts for soft, positive cut 12 13 Xtra tec high performance milling cutter F 4030 Feeds of up to 3.5 mm/tooth possible Optimum productivity at the same time as optimum process reliability and a soft cut thanks to unique, negative indexable insert design E 3 Milling WALTER Prototyp 6 Xtratec porcupine cutters F 4038 /F 4138/F 4238 /F 4338
