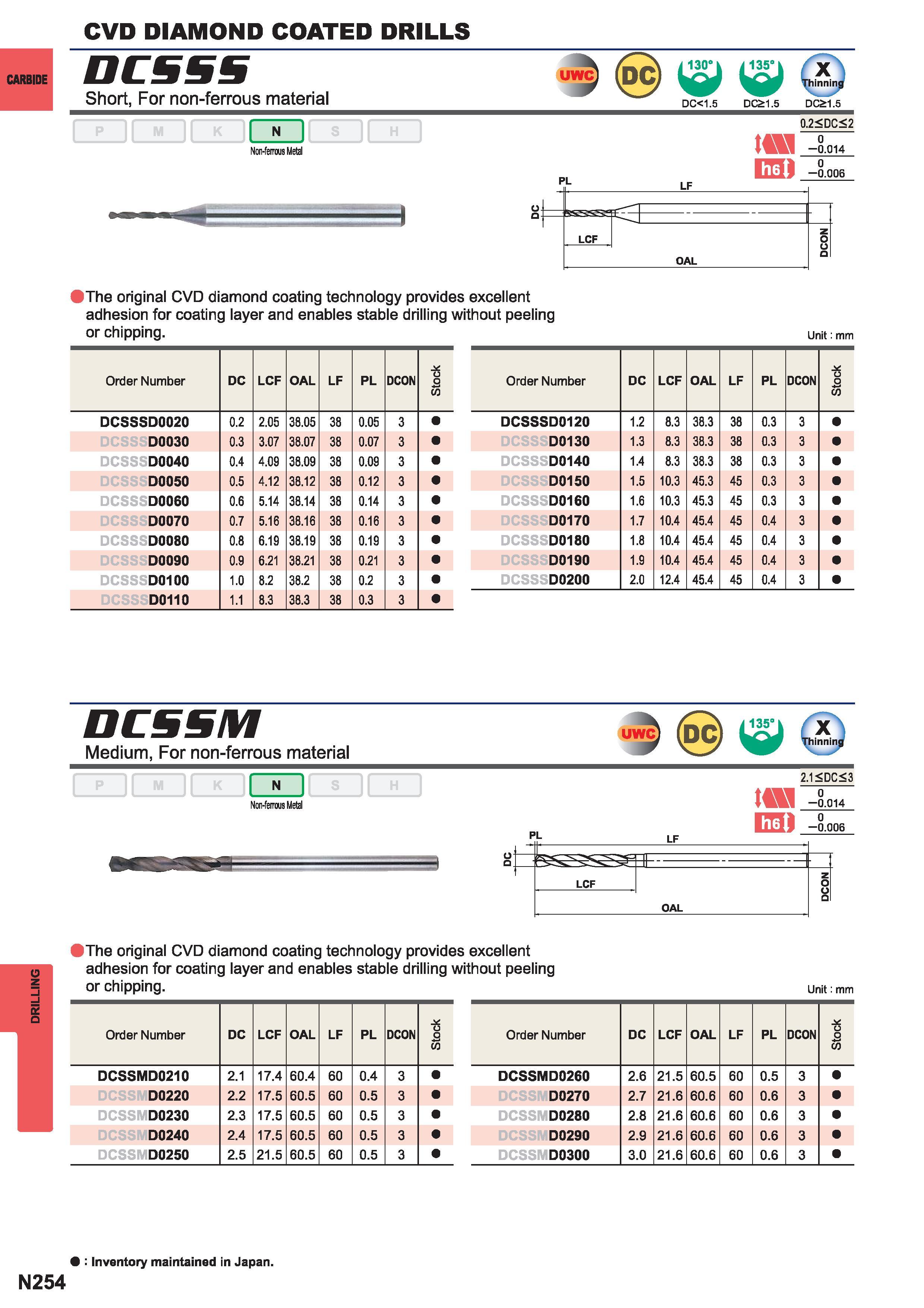

CVD DIAMOND COATED DRILLS CARBIDE ocsss Short For non-ferrous material uwc DCC1.5 DCS1.5 DCS1.5 N Non-ferrous Metal S H 0.2DC2 PL -0.014 0 -0.006 LF LCF OAL The original CVD diamond coating technology provides excellent adhesion for coating layer and enables stable drilling without peeling or chipping. Unit mm Order Number DC LCF OAL LF PL DCON Stock DCSSSD0020 0.2 2.05 38.05 38 0.05 3 5 D0030 0.3 3.07 38.07 38 0.07 3 5 D0040 0.4 4.09 38.09 38 0.09 3 3 D0050 0.5 4.12 38.12 38 0.12 3 3 D0060 0.6 5.14 38.14 38 0.14 3 5 D0070 0.7 5.16 38.16 38 0.16 3 5 D0080 0.8 6.19 38.19 38 0.19 3 5 D0090 0.9 6.21 38.21 38 0.21 3 D0100 1.0 8.2 38.2 38 0.2 3 D0110 1.1 8.3 38.3 38 0.3 3 Order Number DC LCF OAL LF PL DCON Stock DCSSSD0120 1.2 8.3 38.3 38 0.3 3 5 D0130 1.3 8.3 38.3 38 0.3 3 3 D0140 1.4 8.3 38.3 38 0.3 3 3 D0150 1.5 10.3 45.3 45 0.3 3 5 D0160 1.6 10.3 45.3 45 0.3 3 3 D0170 1.7 10.4 45.4 45 0.4 3 5 D0180 1.8 10.4 45.4 45 0.4 3 5 D0190 1.9 10.4 45.4 45 0.4 3 D0200 2.0 12.4 45.4 45 0.4 3 DCSSM Medium For non-ferrous material UW (dc) Q j Non-ferrous Metal 2.1DC3 0 -0.014 0 -0.006 LCF Jl OAL DCON a. O The original CVD diamond coating technology provides excellent adhesion for coating layer and enables stable drilling without peeling or chipping. Unit mm Order Number DC LCF OAL LF PL DCON S Order Number w DC LCF OAL LF PL DCON Stock DCSSMD0210 2.1 17.4 60.4 60 0.4 3 DCSSM D0260 2.6 21.5 60.5 60 0.5 3 P D0220 2.2 17.5 60.5 60 0.5 3 DCSS D0270 2.7 21.6 60.6 60 0.6 3 if D0230 2.3 17.5 60.5 60 0.5 3 DCSS D0280 2.8 21.6 60.6 60 0.6 3 SI D0240 2.4 17.5 60.5 60 0.5 3 DCSS D0290 2.9 21.6 60.6 60 0.6 3 ill D0250 2.5 21.5 60.5 60 0.5 3 DCSS D0300 3.0 21.6 60.6 60 0.6 3 Inventory maintained in Japan. N254
