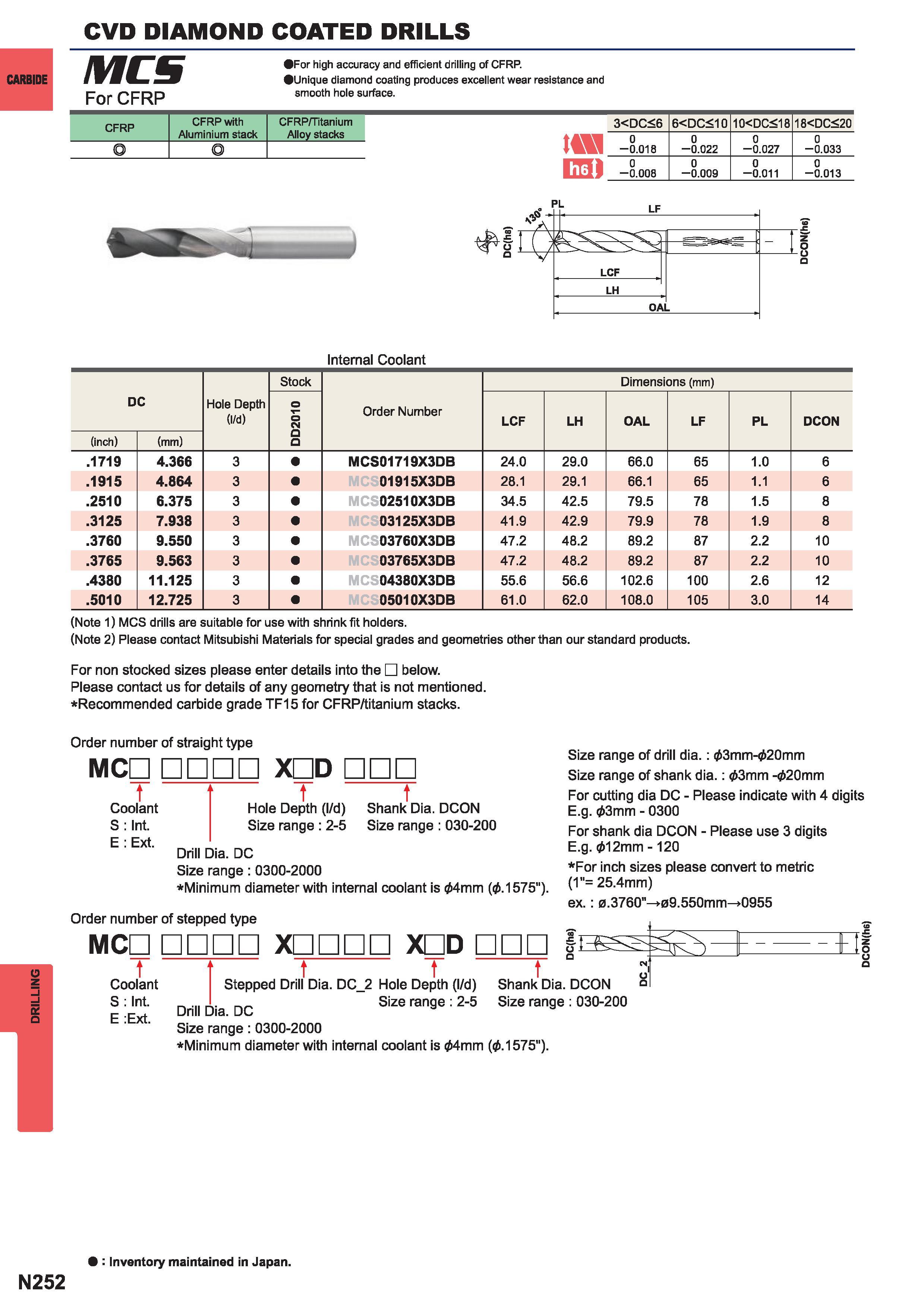

DRILLING CVD DIAMOND COATED DRILLS CARBIDE MCS For CFRP For high accuracy and efficient drilling of CFRP. Unique diamond coating produces excellent wear resistance and smooth hole surface. CFRP CFRP with Aluminium stack CFRP Titanium Alloy stacks 3DC6 6DC10 10DC18 18DC20 -0.018 0 -0.022 0 -0.027 0 -0.033 lilil) -0.008 0 -0.009 0 -0.011 0 -0.013 Internal Coolant DC Hole Depth (I d) Stock Order Number Dimensions (mm) DD2010 LCF LH OAL LF PL DCON (inch) (mm) .1719 4.366 3 MCS01719X3DB 24.0 29.0 66.0 65 1.0 6 .1915 4.864 3 01915X3DB 28.1 29.1 66.1 65 1.1 6 .2510 6.375 3 02510X3DB 34.5 42.5 79.5 78 1.5 8 .3125 7.938 3 03125X3DB 41.9 42.9 79.9 78 1.9 8 .3760 9.550 3 03760X3DB 47.2 48.2 89.2 87 2.2 10 .3765 9.563 3 03765X3DB 47.2 48.2 89.2 87 2.2 10 .4380 11.125 3 04380X3DB 55.6 56.6 102.6 100 2.6 12 .5010 12.725 3 05010X3DB 61.0 62.0 108.0 105 3.0 14 (Note 1) MCS drills are suitable for use with shrink fit holders. (Note 2) Please contact Mitsubishi Materials for special grades and geometries other than our standard products. For non stocked sizes please enter details into the below. Please contact us for details of any geometry that is not mentioned. Recommended carbide grade TF15 for CFRP titanium stacks. Order number MCD t Coolant S Int. E Ext. Order number MCD t Coolant S Int. E :Ext. of straight type XDD t Hole Depth (I d) Size range 2-5 t Shank Dia. DCON Size range 030-200 Drill Dia. DC Size range 0300-2000 Minimum diameter with internal coolant is 04mm (0.1575"). Size range of drill dia. 03mm-02Omm Size range of shank dia. 03mm -020mm For cutting dia DC - Please indicate with 4 digits E.g. 03mm - 0300 For shank dia DCON - Please use 3 digits E.g. 012mm -120 For inch sizes please convert to metric (1" 25.4mm) ex. 0.3760" 09.550mm 0955 of stepped type XDDDD XDD t t Stepped Drill Dia. DC2 Hole Depth (I d) Size range 2-5 Drill Dia. DC Size range 0300-2000 Minimum diameter with internal coolant is 04mm (0.1575"). t Shank Dia. DCON Size range 030-200 Z Inventory maintained in Japan. N252 DCON(he)
