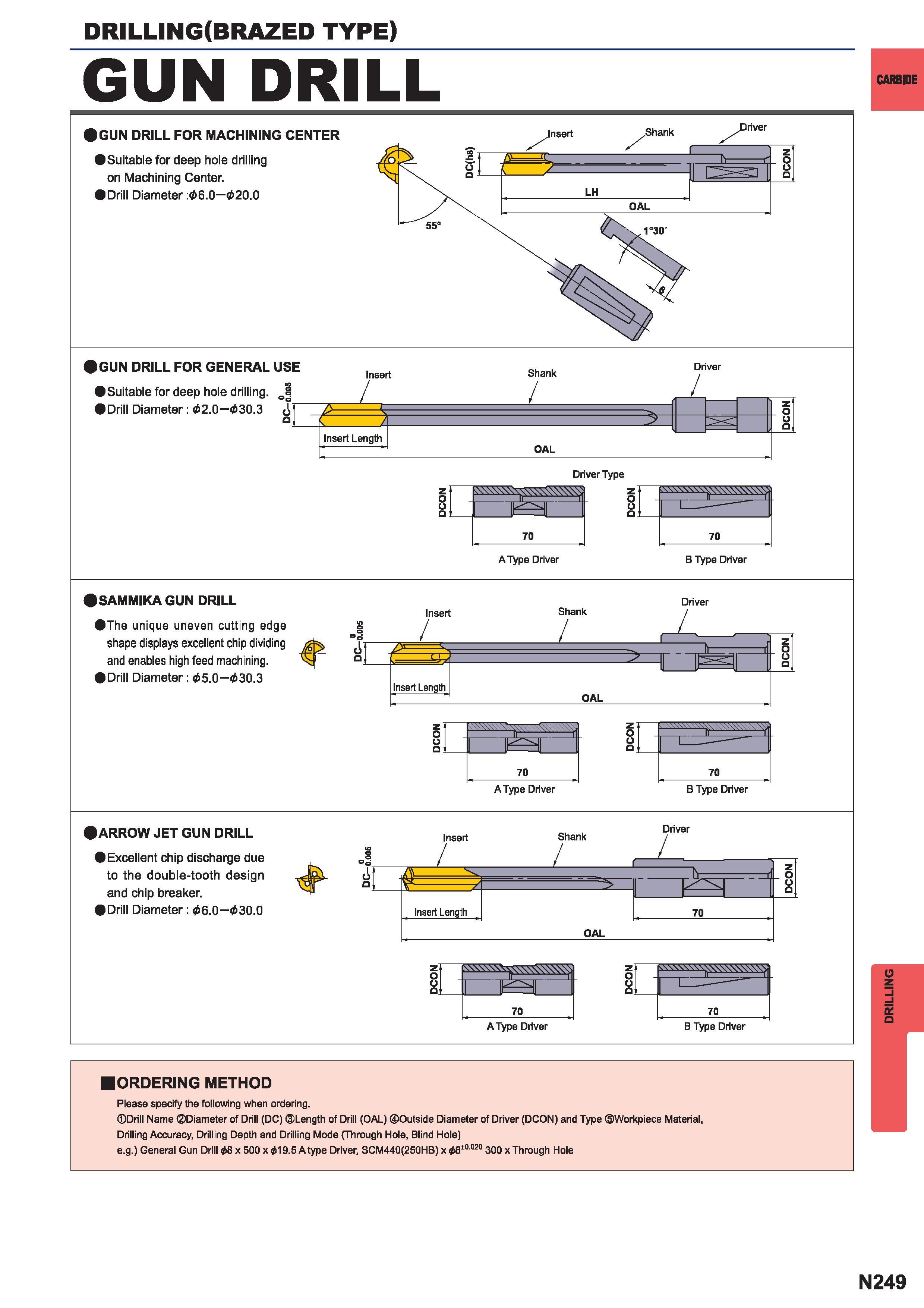

DRILLING(BRAZED TYPE) GUN DRILL GUN DRILL FOR MACHINING CENTER Suitable for deep hole drilling on Machining Center. Drill Diameter :06.0 020.0 Insert Shank river 7 rr k z o LH OAL GUN DRILL FOR GENERAL USE Suitable for deep hole drilling. Drill Diameter 02.0 030.3 tl Insert Shank Driver L b k Z k -5 o Insert Length OAL Driver Type A Type Driver z O u a 70 70 B Type Driver ISAMMIKAGUN DRILL The unique uneven cutting edge shape displays excellent chip dividing and enables high feed machining. Drill Diameter 05.0 030.3 Insert Insert Length Shank L OAL river UHI 70 A Type Driver 1 70 B Type Driver )ARROW JET GUN DRILL Excellent chip discharge due to the double-tooth design and chip breaker. Drill Diameter 06.0 030.0 Insert Insert Length Shank L OAL Driver A Type Driver v vv 70 B Type Driver ORDERING METHOD Please specify the following when ordering. Drill Name Diameter of Drill (DC) Length of Drill (OAL) Outside Diameter of Driver (DCON) and Type Workpiece Material Drilling Accuracy Drilling Depth and Drilling Mode (Through Hole Blind Hole) e.g.) General Gun Drill 08 x 500 x 019.5 A type Driver SCM440(250HB) x 080 020 3 x Through Hole N249 DRILLING
