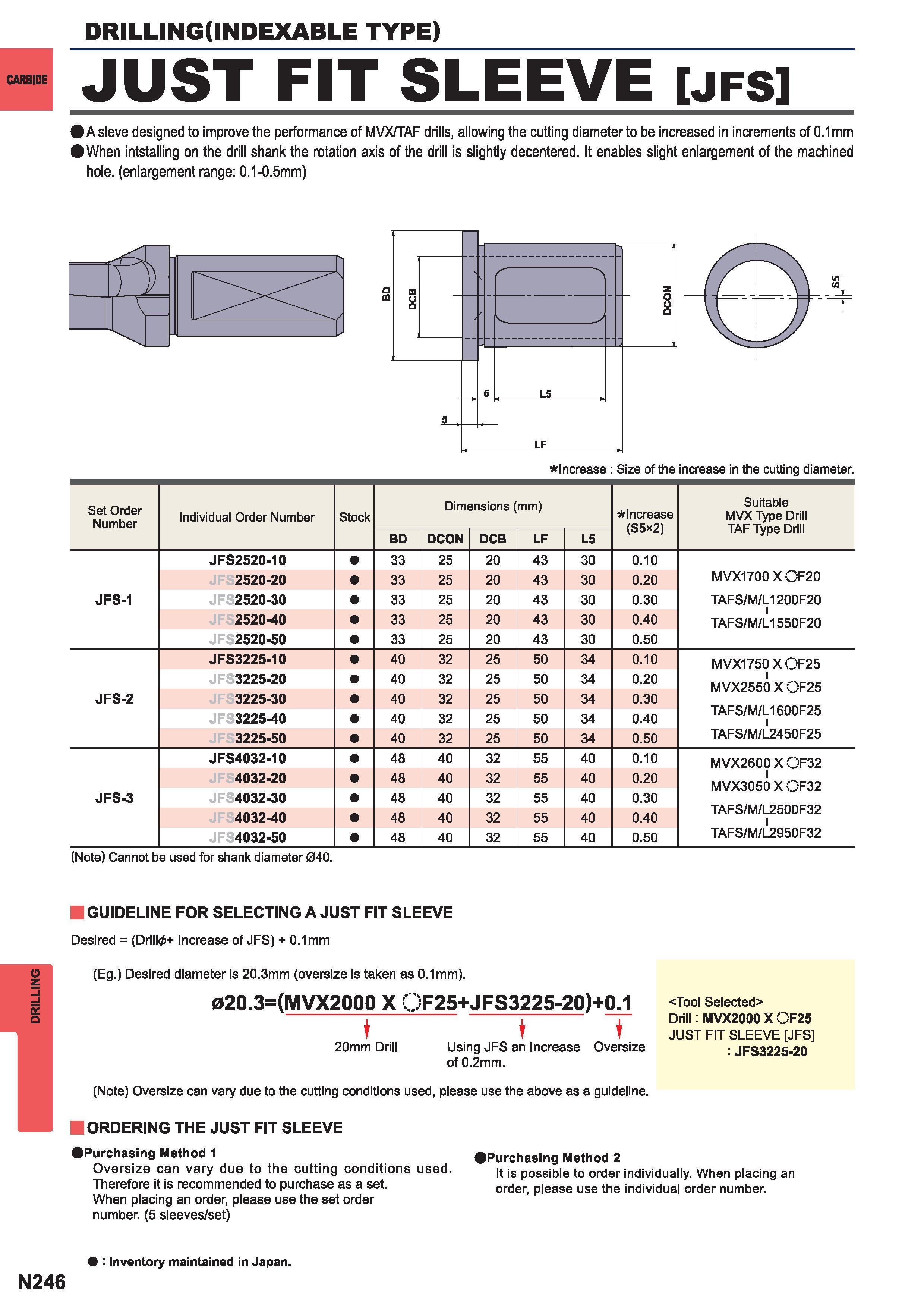

DRILLING (INDEXABLE TYPE) CARBIDE JUST FIT SLEEVE jfs IA sieve designed to improve the performance of MVX TAF drills allowing the cutting diameter to be increased in increments of 0.1mm When installing on the drill shank the rotation axis of the drill is slightly decentered. It enables slight enlargement of the machined hole (enlargement range 0.1-0.5mm) m i Increase Size of the increase in the cutting diameter. Set Order Number Individual Order Number Stock Dimensions (mm) Increase (S5 2) Suitable MVX Type Drill TAF Type Drill BD CON CB LF L5 JFS2520-10 33 25 20 43 30 0.10 FJ 2520-20 33 25 20 43 30 0.20 MVX1700 X OF20 JFS-1 JFJ 2520-30 33 25 20 43 30 0.30 TAFS M L1200F20 FJ 2520-40 33 25 20 43 30 0.40 TAFS M L1550F20 2520-50 33 25 20 43 30 0.50 JFS3225-10 40 32 25 50 34 0.10 MVX1750 X OF25 3225-20 40 32 25 50 34 0.20 MVX2550 X OF25 TAFS M L1600F25 JFS-2 3225-30 40 32 25 50 34 0.30 Jl 3225-40 40 32 25 50 34 0.40 3225-50 40 32 25 50 34 0.50 TAFS M L2450F25 JFS4032-10 48 40 32 55 40 0.10 MVX2600 X OF32 4032-20 48 40 32 55 40 0.20 MVX3050 X OF32 TAFS M L2500F32 JFS-3 Jl 4032-30 48 40 32 55 40 0.30 FS4032-40 48 40 32 55 40 0.40 4032-50 48 40 32 55 40 0.50 TAFS M L2950F32 (Note) Cannot be used for shank diameter 040. a. O GUIDELINE FOR SELECTING A JUST FIT SLEEVE Desired (Drill0+ Increase of JFS) + 0.1mm (Eg.) Desired diameter is 20.3mm (oversize is taken as 0.1mm). 02O.3(MVX2OOO X QF25+JFS3225-20)+0.1 20mm Drill t Using JFS an Increase Oversize of 0.2mm. (Note) Oversize can vary due to the cutting conditions used please use the above as a guideline. ORDERING THE JUST FIT SLEEVE Purchasing Method 1 Oversize can vary due to the cutting conditions used. Therefore it is recommended to purchase as a set. When placing an order please use the set order number. (5 sleeves set) Tool Selected Drill MVX2000 X OF25 JUST FIT SLEEVE JFS JFS3225-20 Purchasing Method 2 It is possible to order individually. When placing an order please use the individual order number. Inventory maintained in Japan. N246
