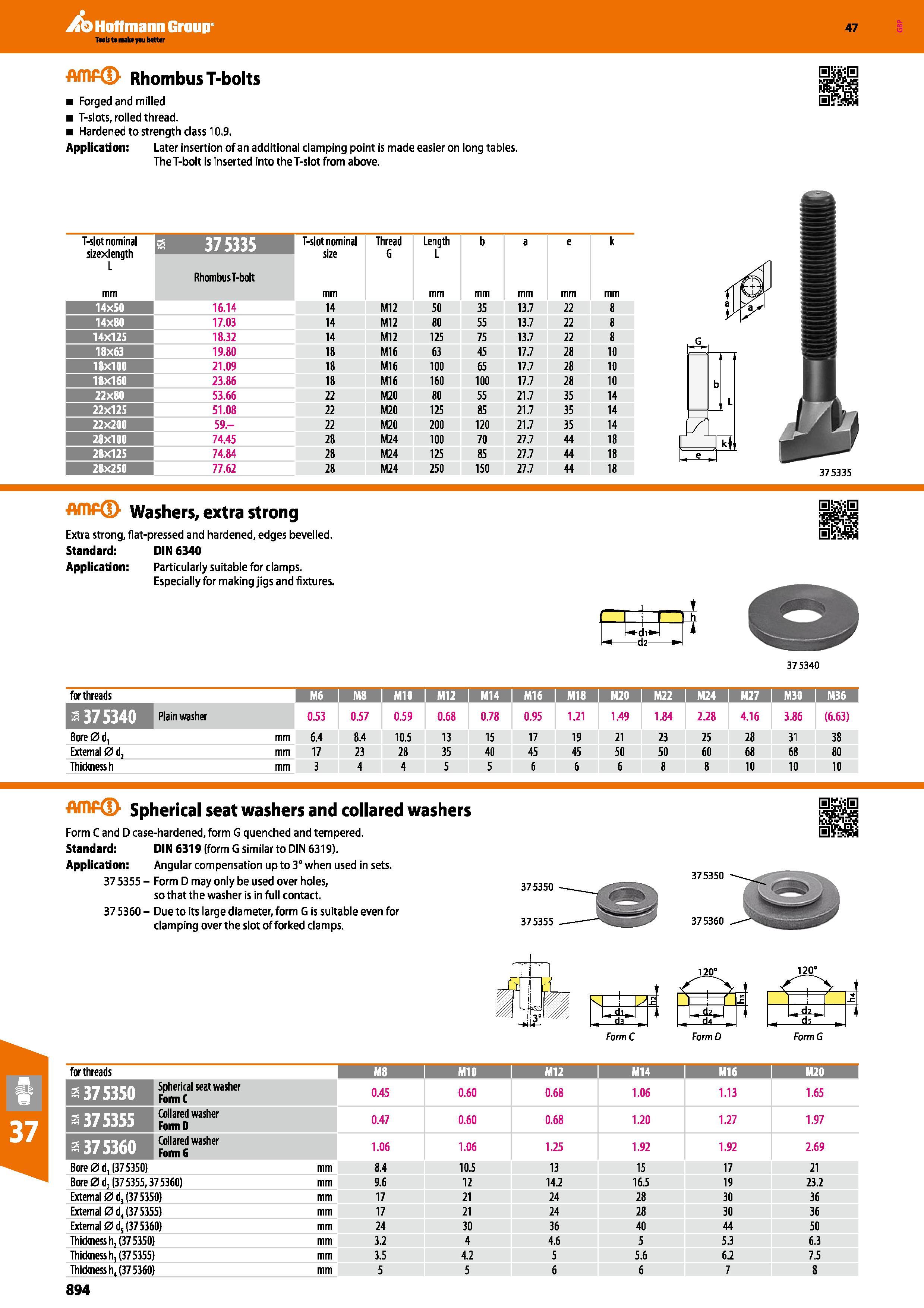

894 Каталог HOFFMANN GROUP 2016 Станочный режущий и вспомогательный инструмент Вер. 47 Стр.894

Каталог HOFFMANN GROUP 2016 Режущий инструмент и оснастка Стр. 894 0894 ENG Lab2u

Hoffmann Group 47 Rhombus T-bolts Forged and milled T-slots, rolled thread. Hardened to strength class 10.9. Application: Later insertion of an additional clamping point is made easier on long tables. TheT-bolt is inserted into the T-slot from above. T-slot nominal sizexlength L a 375335 T-slot nominal size Thread G Length L b a e k RhombusT-bolt mm 14x50 16.14 14 M12 50 35 13.7 22 8 14x80 17.03 14 M12 80 55 13.7 22 8 14x125 18.32 14 Ml 2 125 75 13.7 22 8 18x63 19.80 18 Ml 6 63 45 17.7 28 10 18x100 21.09 18 M16 100 65 17.7 28 10 18x160 23.86 18 M16 160 100 17.7 28 10 22x80 53.66 22 M20 80 55 21.7 35 14 22x125 51.08 22 M20 125 85 21.7 35 14 22x200 59.- 22 M20 200 120 21.7 35 14 28x100 74.45 28 M24 100 70 27.7 44 18 28x125 74.84 28 M24 125 85 27.7 44 18 28x250 77.62 28 M24 250 150 27.7 44 18 Washers, extra strong Extra strong, flat-pressed and hardened, edges bevelled. Standard: DIN 6340 Application: Particularly suitable for clamps. Especially for making jigs and fixtures. h d2 375335 375340 for threads 1 M10 1 12 I Ml 4 I M16 I M18 mm M22 I M24 I M27 1 M30 I M36 1 a 37 5340 0.53 0.57 0.59 0.68 0.78 0.95 1.21 1.49 1.84 2.28 4.16 3.86 (6.63) Bore0d, mm 6.4 8.4 10.5 13 15 17 19 21 23 25 28 31 38 External 0 d2 mm 17 23 28 35 40 45 45 50 50 60 68 68 80 Thickness h mm 3 4 4 5 5 6 6 6 8 8 10 10 10 Spherical seat washers and collared washers Form C and D case-hardened, form G quenched and tempered. Standard: DIN 6319 (form G similar to DIN 6319). Application: Angular compensation up to 3° when used in sets. 37 5355 - Form D may only be used over holes, so that the washer is in full contact. 37 5360 - Due to its large diameter, form G is suitable even for clamping over the slot of forked clamps. 375350 375355 375350 375360 .dv 1 d3 120" -C ds FormC FormD FormG for threads 1 M8 I M10 M12 1 M14 1 M16 1 M20 s 37 5350 Spherical seat washer FormC 0.45 0.60 0.68 1.06 1.13 1.65 a 37 5355 Collared washer FormD 0.47 0.60 0.68 1.20 1.27 1.97 a 37 5360 Collared washer FormG 1.06 1.06 1.25 1.92 1.92 2.69 Bore 0 d. (375350) mm 8.4 10.5 13 15 17 21 Bore 0 d2 (375355,375360) mm 9.6 12 14.2 16.5 19 23.2 External 0d3 (375350) mm 17 21 24 28 30 36 External 0d4 (37 5355) mm 17 21 24 28 30 36 External 0d5 (375360) mm 24 30 36 40 44 50 Thickness h2 (37 5350) mm 3.2 4 4.6 5 5.3 6.3 Thickness h3 (37 5355) mm 3.5 4.2 5 5.6 6.2 7.5 Thickness h4 (37 5360) mm 5 5 6 6 7 8 894
