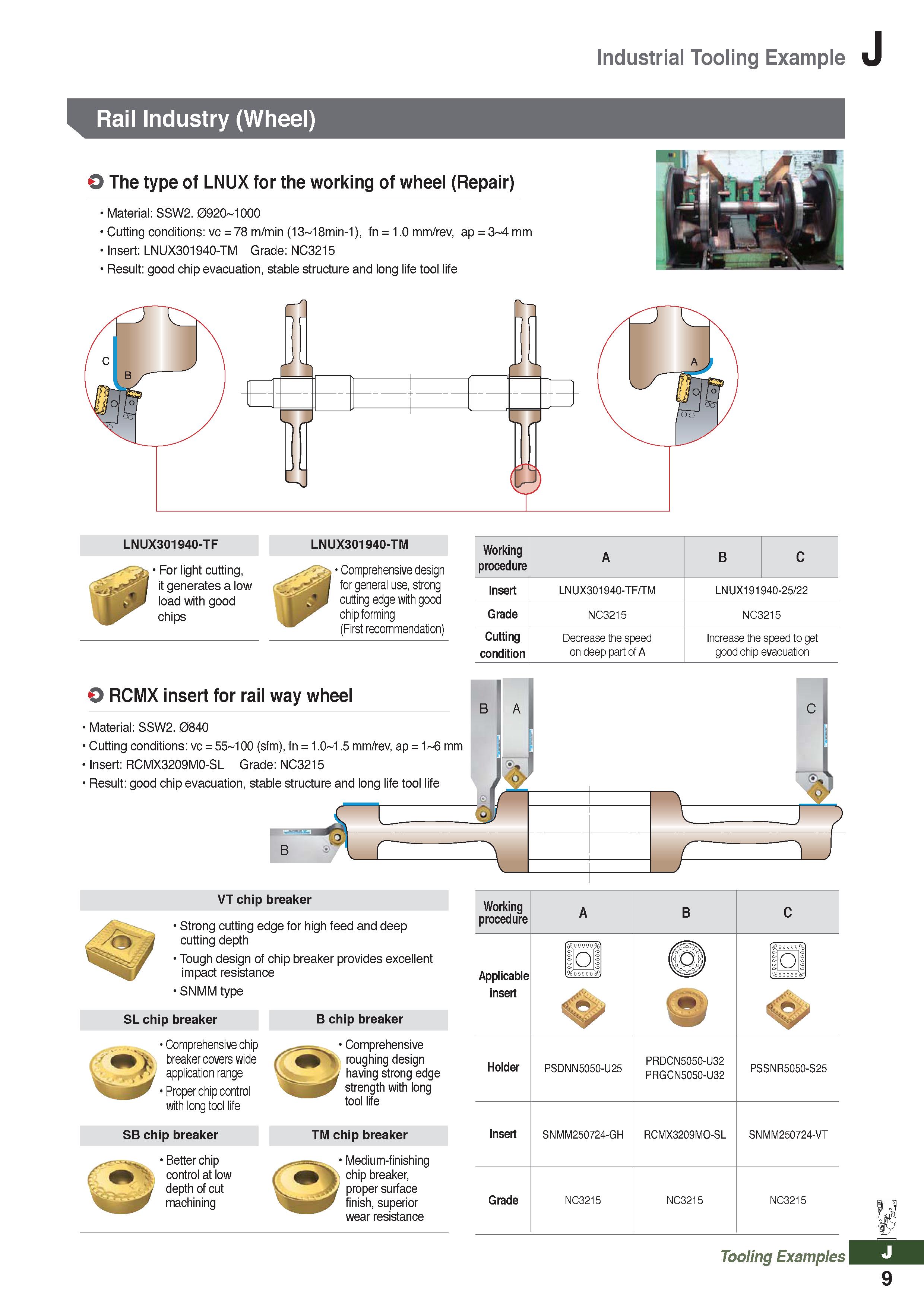

Industrial Tooling Example J Rail Industry (Wheel) The type of LNUX for the working of wheel (Repair) Material: SSW2. 0920-1000 Cutting conditions: vc = 78 m/min (13 18min-1), fn = 1.0 mm/rev, ap = 3 4 mm Insert: LNUX301940-TM Grade: NC3215 Result: good chip evacuation, stable structure and long life tool life LNUX301940-TF For light cutting, it generates a low load with good chips LNUX301940-TM Comprehensive design for general use, strong cutting edge with good chip forming (First recommendation) Working procedure A B C Insert LNUX301940-TF/TM LNUX191940-25/22 Grade NC3215 NC3215 Cutting condition Decrease the speed on deep part of A Increase the speed to get good chip evacuation O RCMX insert for rail way wheel Material: SSW2. 0840 Cutting conditions: vc = 55 100 (sfm), fn = 1.0 1.5 mm/rev, ap = 1 6 mm Insert: RCMX3209M0-SL Grade: NC3215 Result: good chip evacuation, stable structure and long life tool life ZT VT chip breaker Strong cutting edge for high feed and deep cutting depth Tough design of chip breaker provides excellent impact resistance SNMM type SL chip breaker Comprehensive chip breaker covers wide application range Proper chip control with long tool life SB chip breaker Better chip control at low depth of cut machining B chip breaker Comprehensive roughing design having strong edge strength with long tool life TM chip breaker Medium-finishing chip breaker, proper surface finish, superior wear resistance Working procedure Applicable insert Holder Insert Grade A B 1 IOI 9&00000 a PSDNN5050-U25 PRDCN5050-U32 PRGCN5050-U32 SNMM250724-GH RCMX3209MO-SL NC3215 NC3215 ;o PSSNR5050-S25 SNMM250724-VT NC3215 Tooling Examples J 9 C
