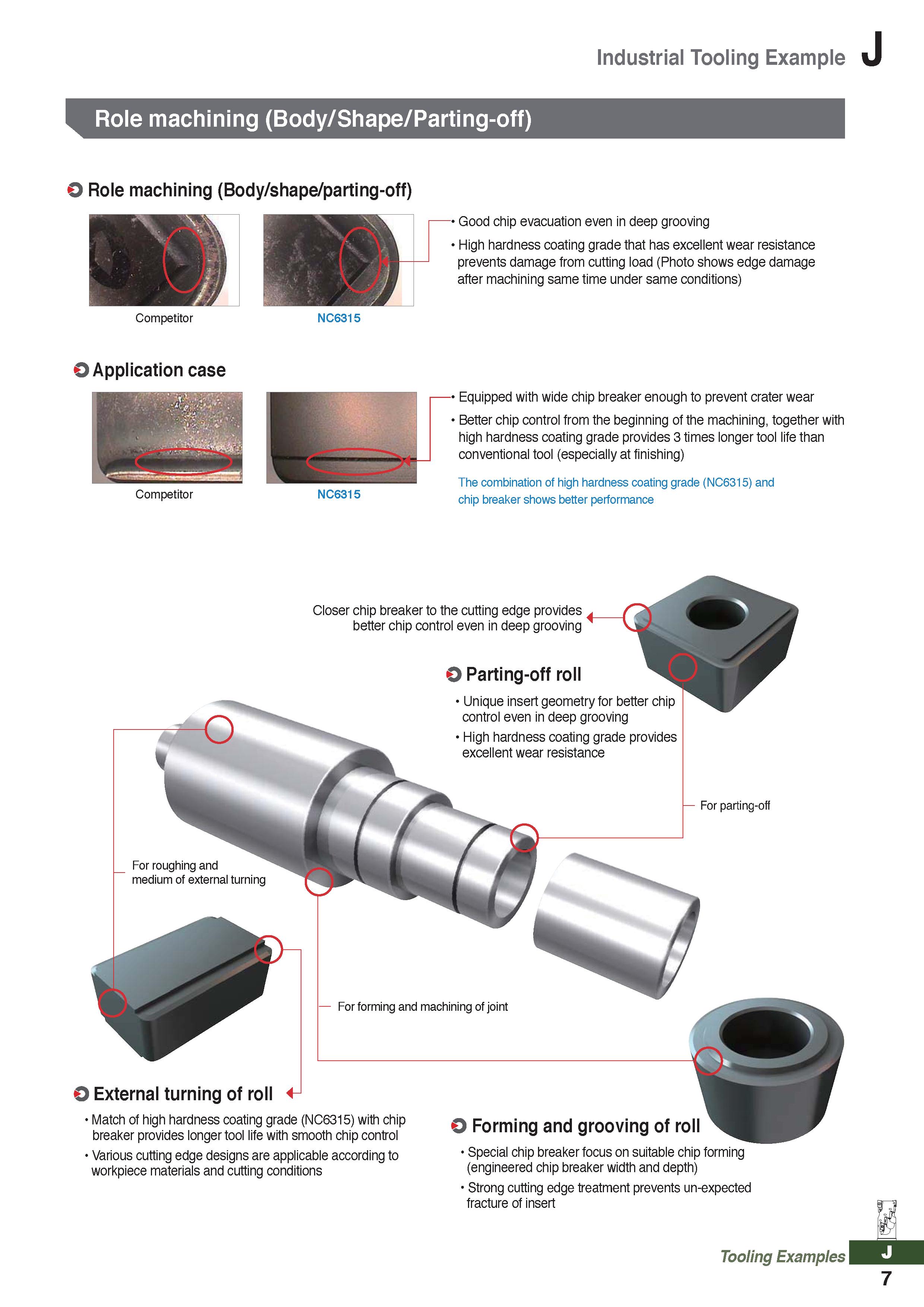

Industrial Tooling Example Role machining (Body/Shape/Parting-off) O Role machining (Body/shape/parting-off) Good chip evacuation even in deep grooving High hardness coating grade that has excellent wear resistance prevents damage from cutting load (Photo shows edge damage after machining same time under same conditions) Competitor NC6315 Application case Competitor NC6315 Equipped with wide chip breaker enough to prevent crater wear Better chip control from the beginning of the machining, together with high hardness coating grade provides 3 times longer tool life than conventional tool (especially at finishing) The combination of high hardness coating grade (NC6315) and chip breaker shows better performance Closer chip breaker to the cutting edge provides better chip control even in deep grooving O Parting-off roll Unique insert geometry for better chip control even in deep grooving High hardness coating grade provides excellent wear resistance For parting-off O External turning of roll Match of high hardness coating grade (NC6315) with chip breaker provides longer tool life with smooth chip control Various cutting edge designs are applicable according to workpiece materials and cutting conditions O Forming and grooving of roll Special chip breaker focus on suitable chip forming (engineered chip breaker width and depth) Strong cutting edge treatment prevents un-expected fracture of insert Tooling Examples J 7
