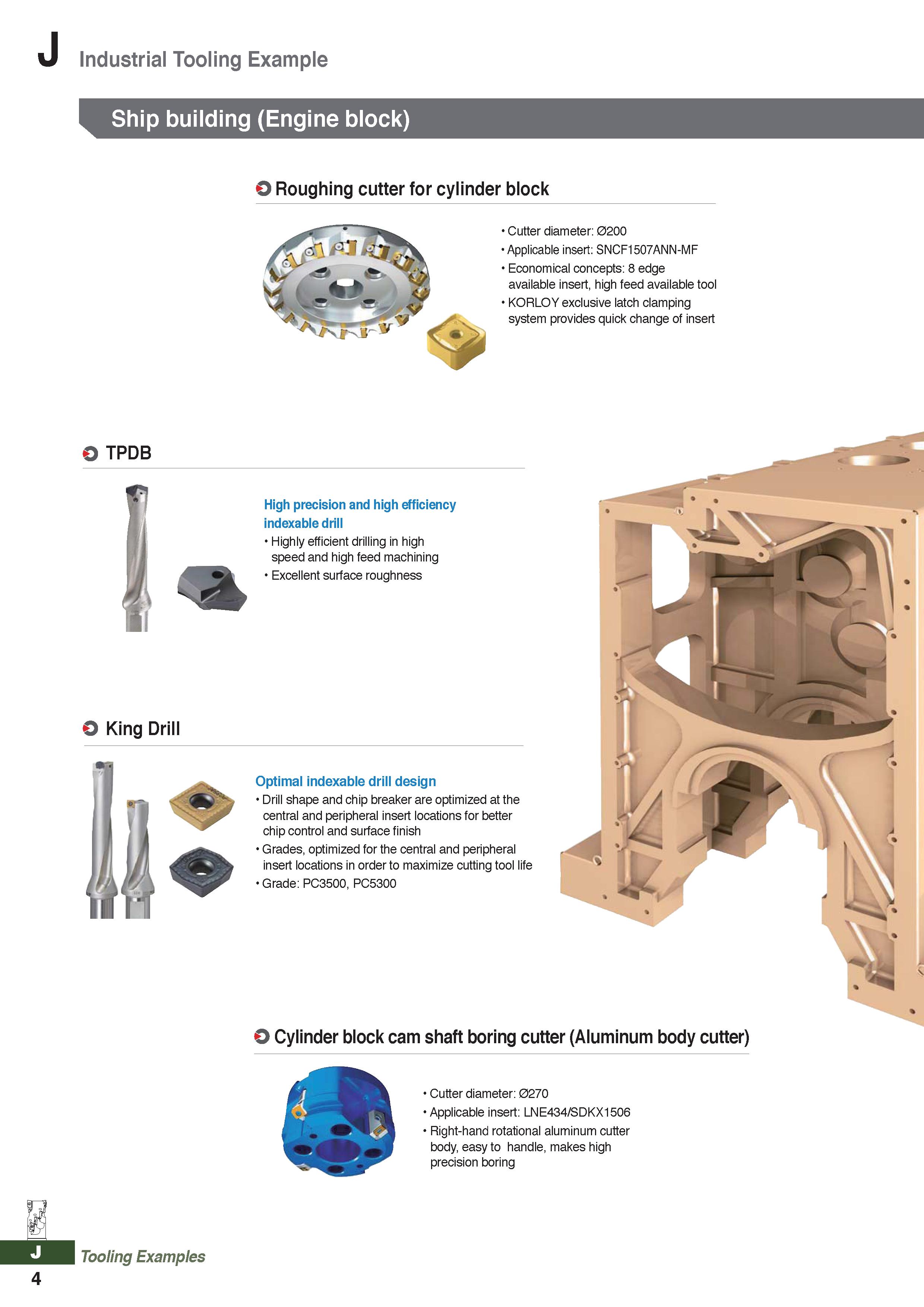

Industrial Tooling Example Ship building (Engine block) O Roughing cutter for cylinder block Cutter diameter: 0200 Applicable insert: SNCF1507ANN-MF Economical concepts: 8 edge available insert, high feed available tool KORLOY exclusive latch clamping system provides quick change of insert O TPDB High precision and high efficiency indexable drill Highly efficient drilling in high speed and high feed machining Excellent surface roughness O King Drill Optimal indexable drill design Drill shape and chip breaker are optimized at the central and peripheral insert locations for better chip control and surface finish Grades, optimized for the central and peripheral insert locations in order to maximize cutting tool life Grade: PC3500, PC5300 O Cylinder block cam shaft boring cutter (Aluminum body cutter) J Tooling Examples 4 Cutter diameter: 0270 Applicable insert: LNE434/SDKX1506 Right-hand rotational aluminum cutter body, easy to handle, makes high precision boring
