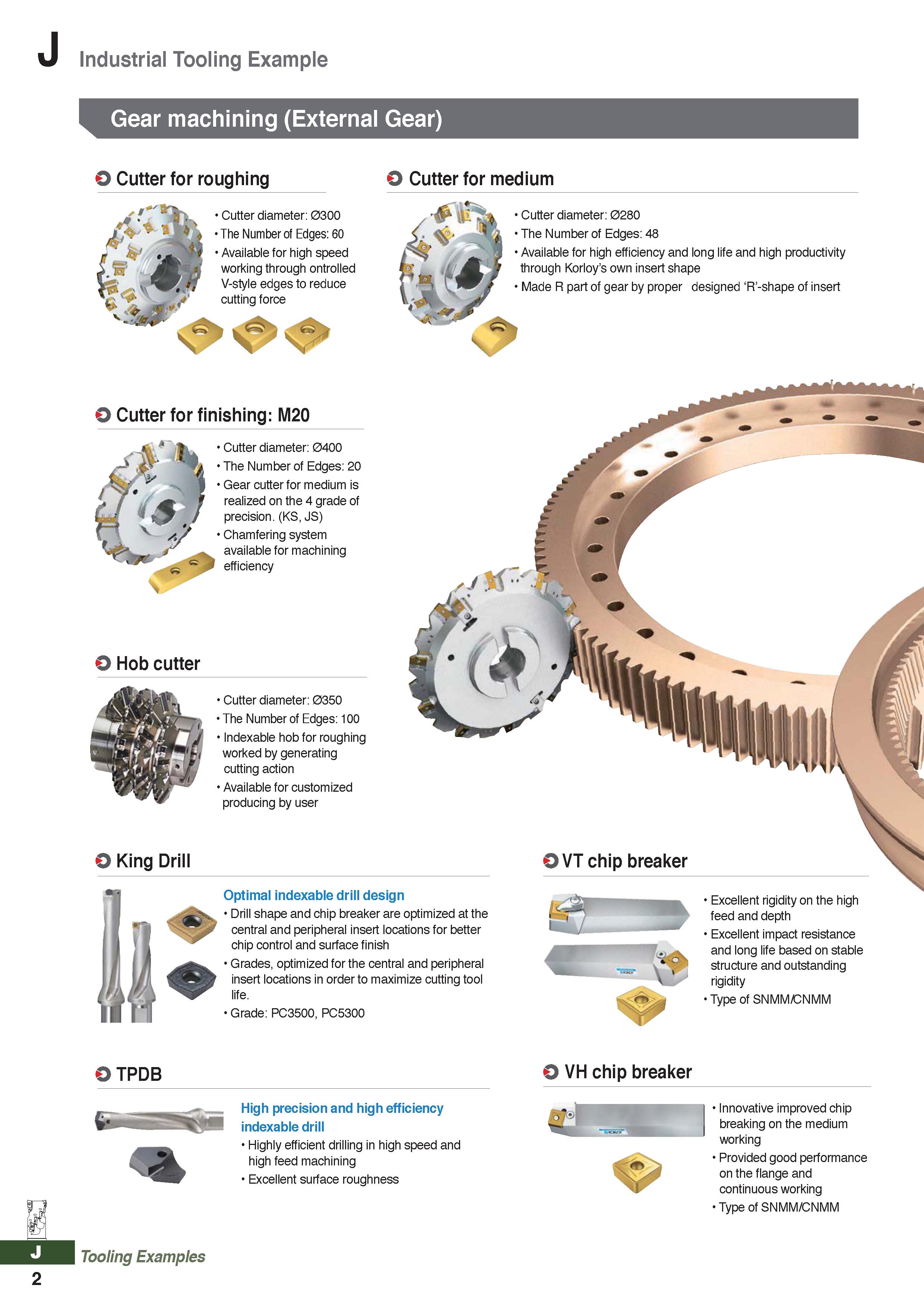

Industrial Tooling Example Gear machining (External Gear) O Cutter for roughing O Cutter for medium Cutter diameter: 0300 The Number of Edges: 60 Available for high speed working through ontrolled V-style edges to reduce cutting force O Cutter for finishing: M20 Cutter diameter: 0400 The Number of Edges: 20 Gear cutter for medium is realized on the 4 grade of precision. (KS, JS) Chamfering system available for machining efficiency O Hob cutter Cutter diameter: 0350 The Number of Edges: 100 Indexable hob for roughing worked by generating cutting action Available for customized producing by user O King Drill Cutter diameter: 0280 The Number of Edges: 48 Available for high efficiency and long life and high productivity through Korloy’s own insert shape Made R part of gear by proper designed ‘R’-shape of insert Optimal indexable drill design Drill shape and chip breaker are optimized at the central and peripheral insert locations for better chip control and surface finish Grades, optimized for the central and peripheral insert locations in order to maximize cutting tool life. Grade: PC3500, PC5300 OVT chip breaker Excellent rigidity on the high feed and depth Excellent impact resistance and long life based on stable structure and outstanding rigidity Type of SNMM/CNMM O TPDB J A Tooling Examples High precision and high efficiency indexable drill Highly efficient drilling in high speed and high feed machining Excellent surface roughness O VH chip breaker Innovative improved chip breaking on the medium working Provided good performance on the flange and continuous working Type of SNMM/CNMM 2
