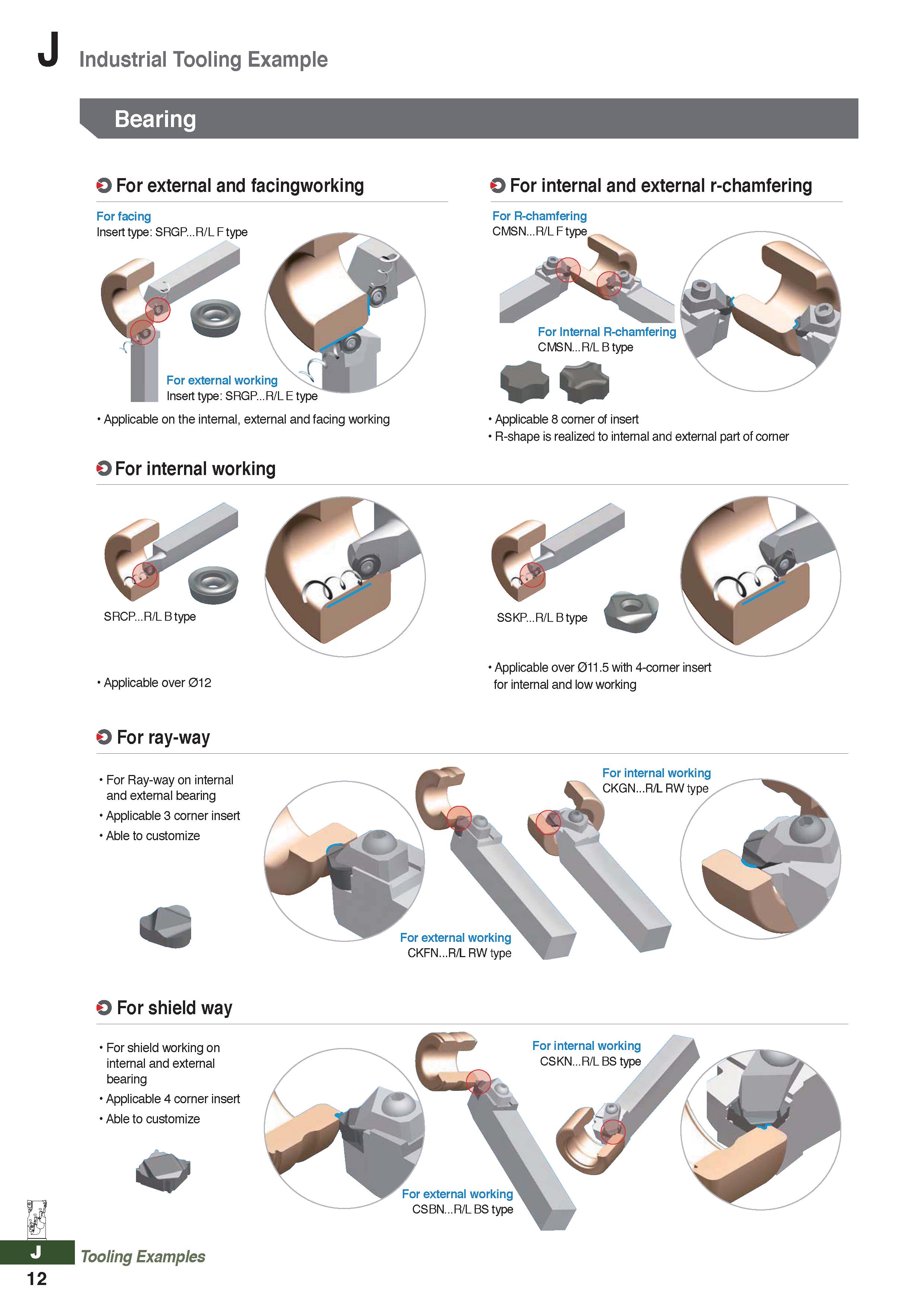

J Industrial Tooling Example Bearing 0 For external and facingworking For facing Insert type: SRGP...R/L F type For external working Insert type: SRGP...R/L E type Applicable on the internal, external and facing working O For internal working O For internal and external r-chamfering For R-chamfering CMSN...R/L F type For Internal R-chamfering CMSN...R/L B type Applicable 8 corner of insert R-shape is realized to internal and external part of corner SRCP...R/L B type Applicable over 012 SSKP...R/L B type Applicable over 011.5 with 4-corner insert for internal and low working O For ray-way For Ray-way on internal and external bearing Applicable 3 corner insert Able to customize For external working CKFN...R/LRW type For internal working CKGN...R/L RWtype O For shield way J For shield working on internal and external bearing Applicable 4 corner insert Able to customize Tooling Examples 12
