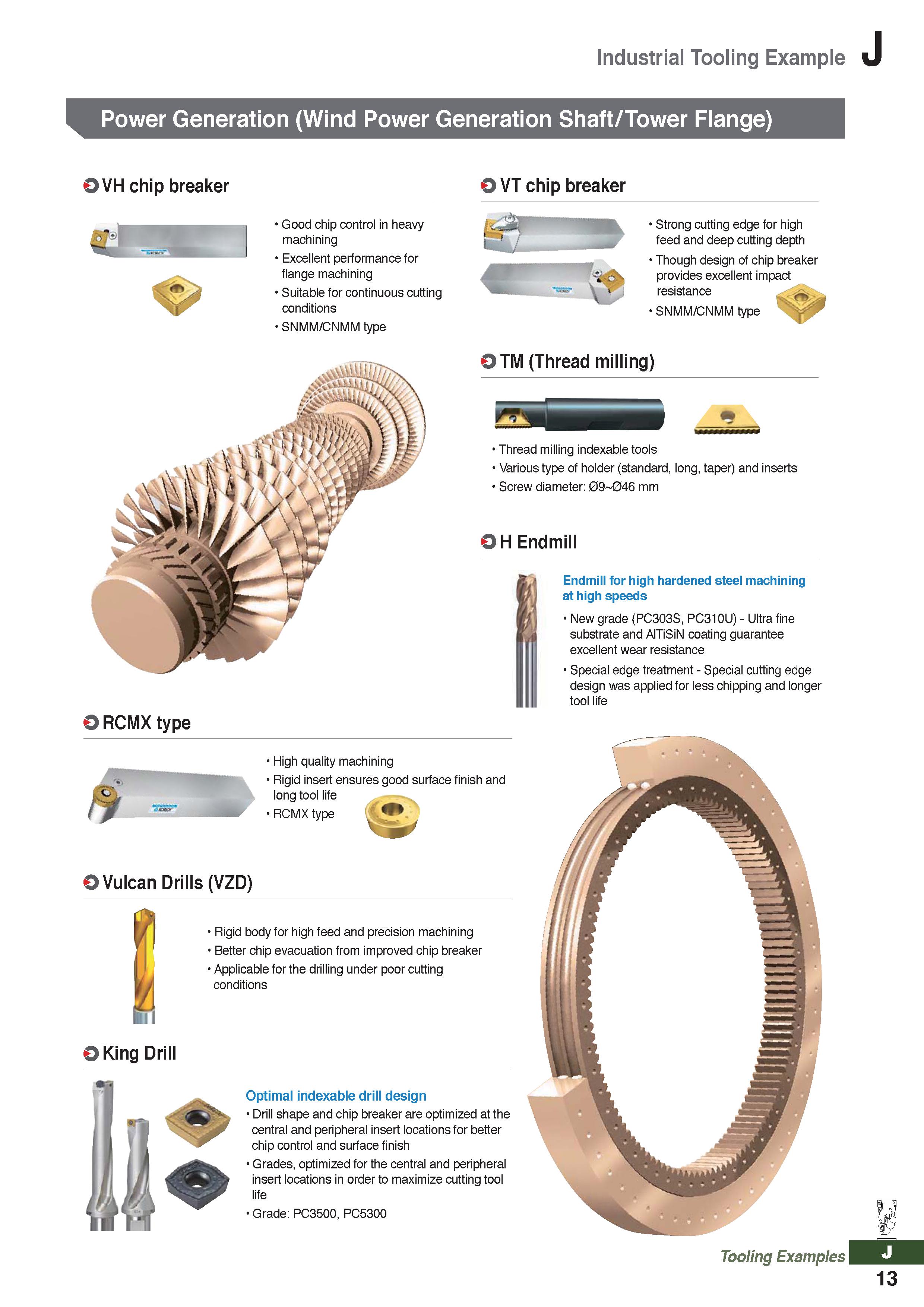

1235 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.J13

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. J13 1235 Lab2u

Industrial Tooling Example Power Generation (Wind Power Generation Shaft/Tower Flange) VH chip breaker OVT chip breaker Good chip control in heavy machining Excellent performance for flange machining Suitable for continuous cutting conditions SNMM/CNMM type Strong cutting edge for high feed and deep cutting depth Though design of chip breaker provides excellent impact resistance SNMM/CNMM type OTM (Thread milling) Thread milling indexable tools Various type of holder (standard, long, taper) and inserts Screw diameter: 09 046 mm H Endmill Endmill for high hardened steel machining at high speeds New grade (PC303S, PC310U) - Ultra fine substrate and AlTiSiN coating guarantee excellent wear resistance Special edge treatment - Special cutting edge design was applied for less chipping and longer tool life RCMX type High quality machining Rigid insert ensures good surface finish and long tool life RCMX type Vulcan Drills (VZD) Rigid body for high feed and precision machining Better chip evacuation from improved chip breaker Applicable for the drilling under poor cutting conditions King Drill Optimal indexable drill design Drill shape and chip breaker are optimized at the central and peripheral insert locations for better chip control and surface finish Grades, optimized for the central and peripheral insert locations in order to maximize cutting tool life Grade: PC3500, PC5300 Tooling Examples 13
