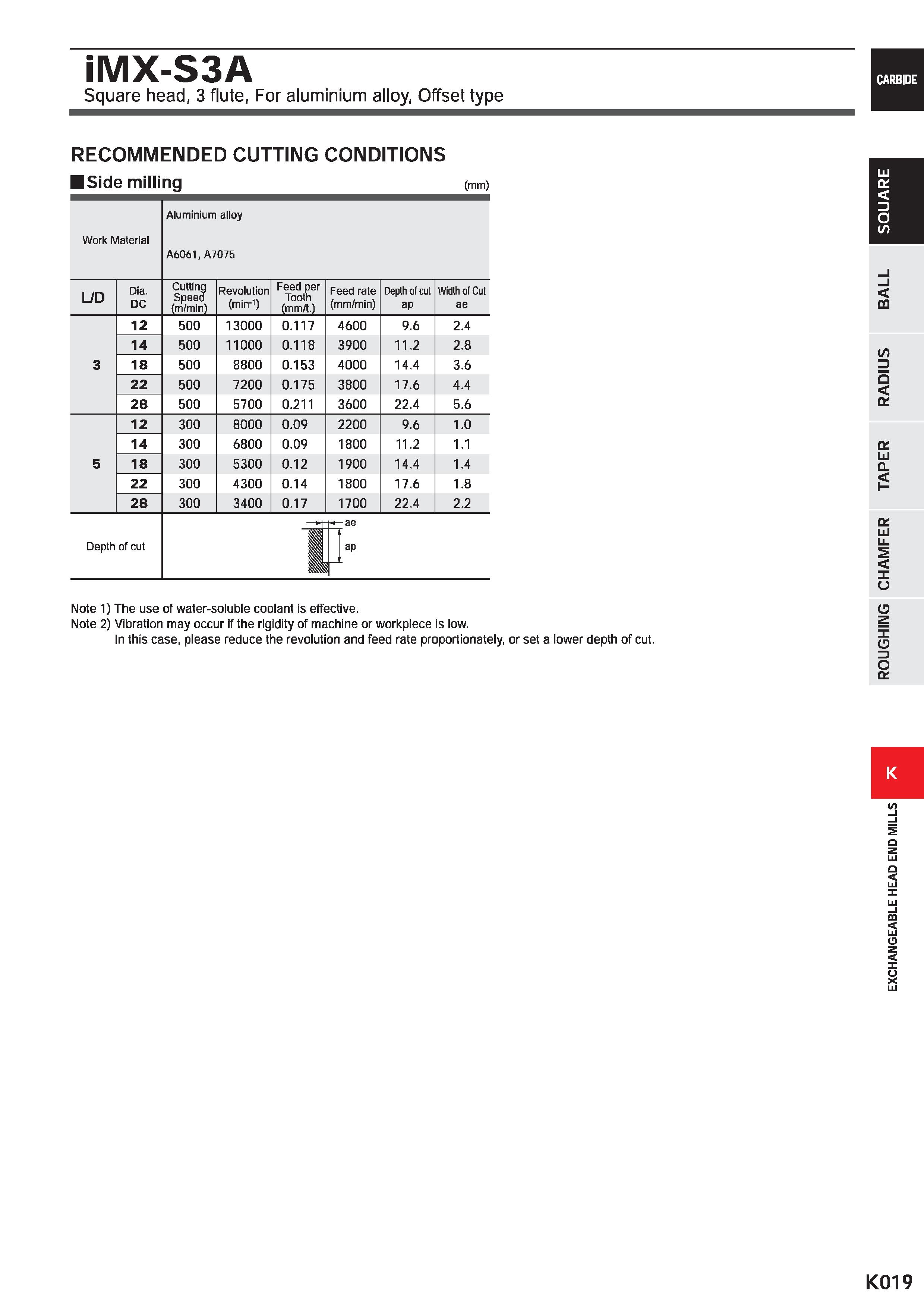

iMX-S3A Square head, 3 flute, For aluminium alloy, Offset type RECOMMENDED CUTTING CONDITIONS Side milling (mm) Work Material Aluminium alloy A6061, A7075 L/D Dia. DC Cutting Speed (m/mir) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 3 12 500 13000 0.117 4600 9.6 2.4 14 500 11000 0.118 3900 11.2 2.8 18 500 8800 0.153 4000 14.4 3.6 22 500 7200 0.175 3800 17.6 4.4 28 500 5700 0.211 3600 22.4 5.6 12 300 8000 0.09 2200 9.6 1.0 14 300 6800 0.09 1800 11.2 1.1 5 18 300 5300 0.12 1900 14.4 1.4 22 300 4300 0.14 1800 17.6 1.8 28 300 3400 0.17 1700 22.4 2.2 Depth of cut Note 1) The use of water-soluble coolant is effective. Note 2) Vibration may occur if the rigidity of machine or workpiece is low. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. m n 2 Q ct. cc LlI a. I o 0 z 1 o 3 o cx a m K019
