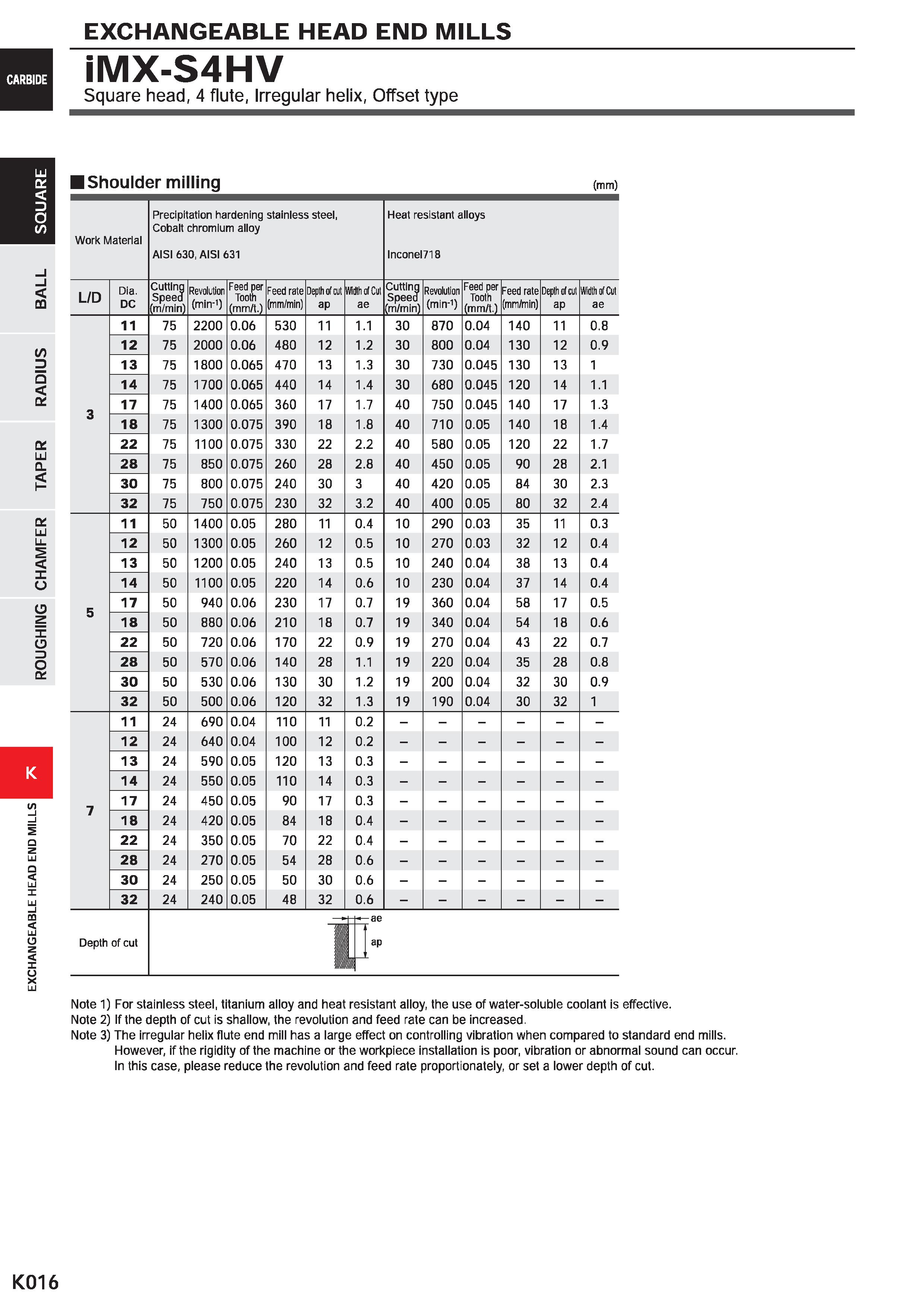

EXCHANGEABLE HEAD END MILLS iMX-S4HV Square head, 4 flute, Irregular helix, Offset type I Shoulder milling (mm) m /> D O o: a Ld Q. X o C3 O 3 o a. s Q Z LU Jj X LU l CQ LLl o z z o X LU Work Material Precipitation hardening stainless steel, Cobalt chromium alloy AISI 630, AISI 631 Heat resistant alloys lnconel718 L/D Dia. DC Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate mm/min) Depthofcut ap Width of Cut ae Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) reed rate (mm/min) Depthofcut ap Width of Cut ae 3 11 75 2200 0.06 530 11 1.1 30 870 0.04 140 11 0.8 12 75 2000 0.06 480 12 1.2 30 800 0.04 130 12 0.9 13 75 1800 0.065 470 13 1.3 30 730 0.045 130 13 1 14 75 1700 0.065 440 14 1.4 30 680 0.045 120 14 1.1 17 75 1400 0.065 360 17 1.7 40 750 0.045 140 17 1.3 18 75 1300 0.075 390 18 1.8 40 710 0.05 140 18 1.4 22 75 1100 0.075 330 22 2.2 40 580 0.05 120 22 1.7 28 75 850 0.075 260 28 2.8 40 450 0.05 90 28 2.1 30 75 800 0.075 240 30 3 40 420 0.05 84 30 2.3 32 75 750 0.075 230 32 3.2 40 400 0.05 80 32 2.4 5 11 50 1400 0.05 280 11 0.4 10 290 0.03 35 11 0.3 12 50 1300 0.05 260 12 0.5 10 270 0.03 32 12 0.4 13 50 1200 0.05 240 13 0.5 10 240 0.04 38 13 0.4 14 50 1100 0.05 220 14 0.6 10 230 0.04 37 14 0.4 17 50 940 0.06 230 17 0.7 19 360 0.04 58 17 0.5 18 50 880 0.06 210 18 0.7 19 340 0.04 54 18 0.6 22 50 720 0.06 170 22 0.9 19 270 0.04 43 22 0.7 28 50 570 0.06 140 28 1.1 19 220 0.04 35 28 0.8 30 50 530 0.06 130 30 1.2 19 200 0.04 32 30 0.9 32 50 500 0.06 120 32 1.3 19 190 0.04 30 32 1 7 11 24 690 0.04 110 11 0.2 12 24 640 0.04 100 12 0.2 13 24 590 0.05 120 13 0.3 14 24 550 0.05 110 14 0.3 17 24 450 0.05 90 17 0.3 18 24 420 0.05 84 18 0.4 22 24 350 0.05 70 22 0.4 28 24 270 0.05 54 28 0.6 30 24 250 0.05 50 30 0.6 32 24 240 0.05 48 32 0.6 Depth of cut ap Note 1) For stainless steel, titanium alloy and heat resistant alloy, the use of water-soluble coolant is effective. Note 2) If the depth of cut is shallow, the revolution and feed rate can be increased. Note 3) The irregular helix flute end mill has a large effect on controlling vibration when compared to standard end mills. However, if the rigidity of the machine or the workpiece installation is poor, vibration or abnormal sound can occur. In this case, please reduce the revolution and feed rate proportionately, or set a lower depth of cut. K016
