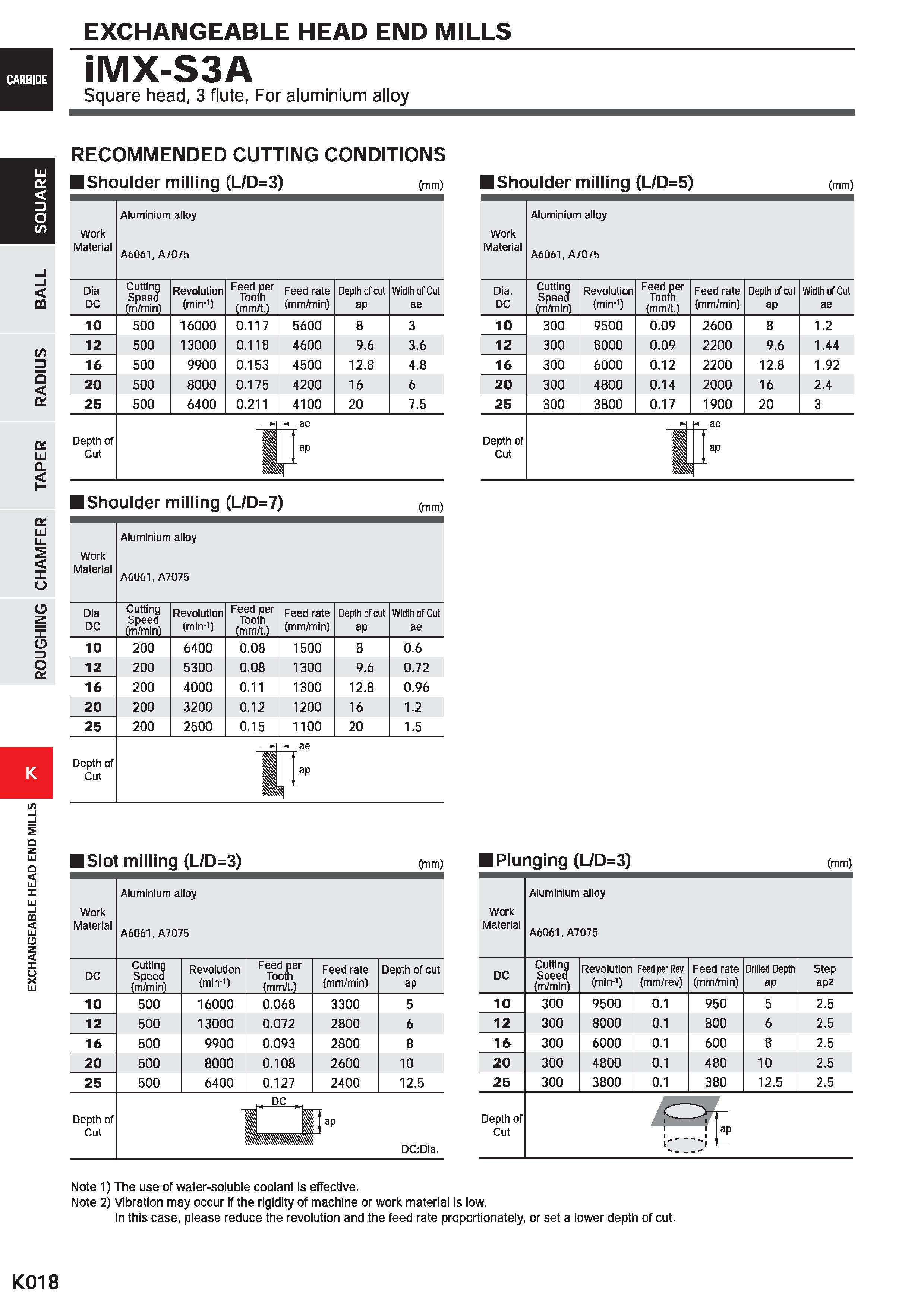

EXCHANGEABLE HEAD END MILLS iMX-S3A Square head, 3 flute, For aluminium alloy m /> D O a a Ld a. X o C3 O 3 o DC 5 Q Z LU Ld X LU l CQ LU 0 z 1 u X LU RECOMMENDED CUTTING CONDITIONS Shoulder milling (L/D=3) (mm) Work Material Aluminium alloy A6061, A7075 Dia. DC Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 10 500 16000 0.117 5600 8 3 12 500 13000 0.118 4600 9.6 3.6 16 500 9900 0.153 4500 12.8 4.8 20 500 8000 0.175 4200 16 6 25 500 6400 0.211 4100 20 7.5 Depth of Cut + ae ( m ap 1 IShoulder milling (L/D=7) (mm) Work Material Aluminium alloy A6061, A7075 Dia. DC Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 10 200 6400 0.08 1500 8 0.6 12 200 5300 0.08 1300 9.6 0.72 16 200 4000 0.11 1300 12.8 0.96 20 200 3200 0.12 1200 16 1.2 25 200 2500 0.15 1100 20 1.5 Depth of Cut + ae 1 ift ap 1 ISIot milling (L/D=3) (mm) Work Material Aluminium alloy A6061, A7075 DC Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap 10 500 16000 0.068 3300 5 12 500 13000 0.072 2800 6 16 500 9900 0.093 2800 8 20 500 8000 0.108 2600 10 25 500 6400 0.127 2400 12.5 Depth of Cut DC:Dia. IShoulder milling (L/D=5) (mm) Work Material Aluminium alloy A6061, A7075 Dia. DC Cutting Speed (m/min) Revolution (min-1) Feed per Tooth (mm/t.) Feed rate (mm/min) Depth of cut ap Width of Cut ae 10 300 9500 0.09 2600 8 1.2 12 300 8000 0.09 2200 9.6 1.44 16 300 6000 0.12 2200 12.8 1.92 20 300 4800 0.14 2000 16 2.4 25 300 3800 0.17 1900 20 3 Depth of Cut I Plunging (L/D=3) (mm) Work Material Aluminium alloy A6061, A7075 DC Cutting Speed (m/min) Revolution (min-1) Feed per Rev. (mm/rev) Feed rate (mm/min) Drilled Depth ap Step ap2 10 300 9500 0.1 950 5 2.5 12 300 8000 0.1 800 6 2.5 16 300 6000 0.1 600 8 2.5 20 300 4800 0.1 480 10 2.5 25 300 3800 0.1 380 12.5 2.5 Depth of Cut i r :;L£ Note 1) The use of water-soluble coolant is effective. Note 2) Vibration may occur if the rigidity of machine or work material is low. In this case, please reduce the revolution and the feed rate proportionately, or set a lower depth of cut. K018
