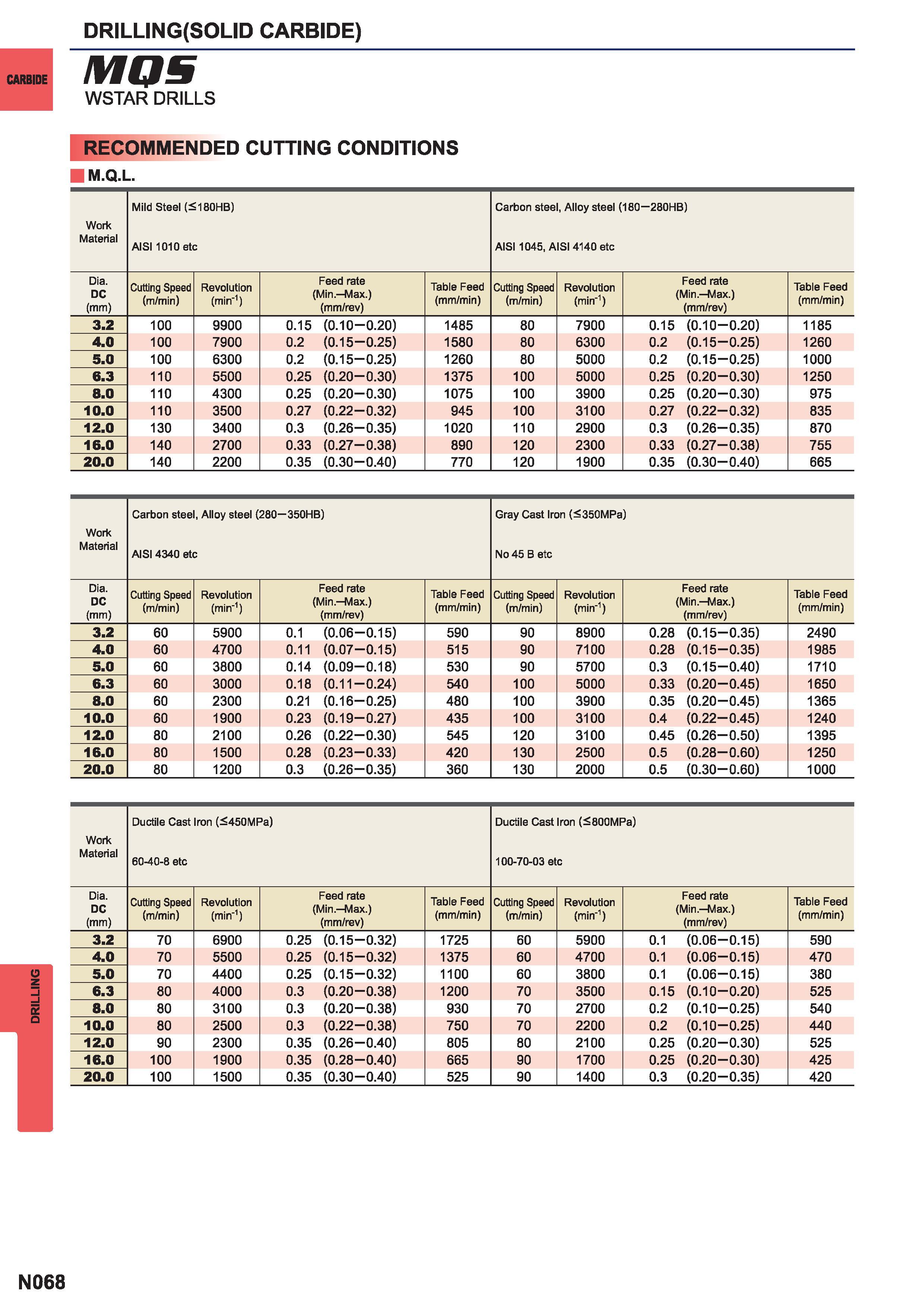

DRILLING DRILLING (SOLID CARBIDE) CARBIDE f Wm WSTAR DRILLS RECOMMENDED CUTTING CONDITIONS M.Q.L. Work Material Mild Steel (180HB) AISI 1010 etc Carbon steel Alloy steel (180 280HB) AISI 1045 AISI 4140 etc Dia. DC (mm) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 3.2 100 9900 0.15 (0.10-0.20) 1485 80 7900 0.15 (0.10-0.20) 1185 4.0 100 7900 0.2 (0.15-0.25) 1580 80 6300 0.2 (0.15-0.25) 1260 5.0 100 6300 0.2 (0.15-0.25) 1260 80 5000 0.2 (0.15-0.25) 1000 6.3 110 5500 0.25 (0.20-0.30) 1375 100 5000 0.25 (0.20-0.30) 1250 8.0 110 4300 0.25 (0.20-0.30) 1075 100 3900 0.25 (0.20-0.30) 975 10.0 110 3500 0.27 (0.22-0.32) 945 100 3100 0.27 (0.22-0.32) 835 12.0 130 3400 0.3 (0.26-0.35) 1020 110 2900 0.3 (0.26-0.35) 870 16.0 140 2700 0.33 (0.27-0.38) 890 120 2300 0.33 (0.27-0.38) 755 20.0 140 2200 0.35 (0.30-0.40) 770 120 1900 0.35 (0.30-0.40) 665 Work Material Carbon steel Alloy steel (280 350HB) AISI 4340 etc Gray Cast Iron (350MPa) No 45 B etc Dia. DC (mm) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 3.2 60 5900 0.1 (0.06-0.15) 590 90 8900 0.28 (0.15-0.35) 2490 4.0 60 4700 0.11 (0.07-0.15) 515 90 7100 0.28 (0.15-0.35) 1985 5.0 60 3800 0.14 (0.09-0.18) 530 90 5700 0.3 (0.15-0.40) 1710 6.3 60 3000 0.18 (0.11-0.24) 540 100 5000 0.33 (0.20-0.45) 1650 8.0 60 2300 0.21 (0.16-0.25) 480 100 3900 0.35 (0.20-0.45) 1365 10.0 60 1900 0.23 (0.19-0.27) 435 100 3100 0.4 (0.22-0.45) 1240 12.0 80 2100 0.26 (0.22-0.30) 545 120 3100 0.45 (0.26-0.50) 1395 16.0 80 1500 0.28 (0.23-0.33) 420 130 2500 0.5 (0.28-0.60) 1250 20.0 80 1200 0.3 (0.26-0.35) 360 130 2000 0.5 (0.30-0.60) 1000 Work Material Ductile Cast Iron ( 450MPa) 60-40-8 etc Ductile Cast Iron ( 800MPa) 100-70-03 etc Dia. DC (mm) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min'1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 3.2 70 6900 0.25 (0.15-0.32) 1725 60 5900 0.1 (0.06-0.15) 590 4.0 70 5500 0.25 (0.15-0.32) 1375 60 4700 0.1 (0.06-0.15) 470 5.0 70 4400 0.25 (0.15-0.32) 1100 60 3800 0.1 (0.06-0.15) 380 6.3 80 4000 0.3 (0.20-0.38) 1200 70 3500 0.15 (0.10-0.20) 525 8.0 80 3100 0.3 (0.20-0.38) 930 70 2700 0.2 (0.10-0.25) 540 10.0 80 2500 0.3 (0.22-0.38) 750 70 2200 0.2 (0.10-0.25) 440 12.0 90 2300 0.35 (0.26-0.40) 805 80 2100 0.25 (0.20-0.30) 525 16.0 100 1900 0.35 (0.28-0.40) 665 90 1700 0.25 (0.20-0.30) 425 20.0 100 1500 0.35 (0.30-0.40) 525 90 1400 0.3 (0.20-0.35) 420 N068
