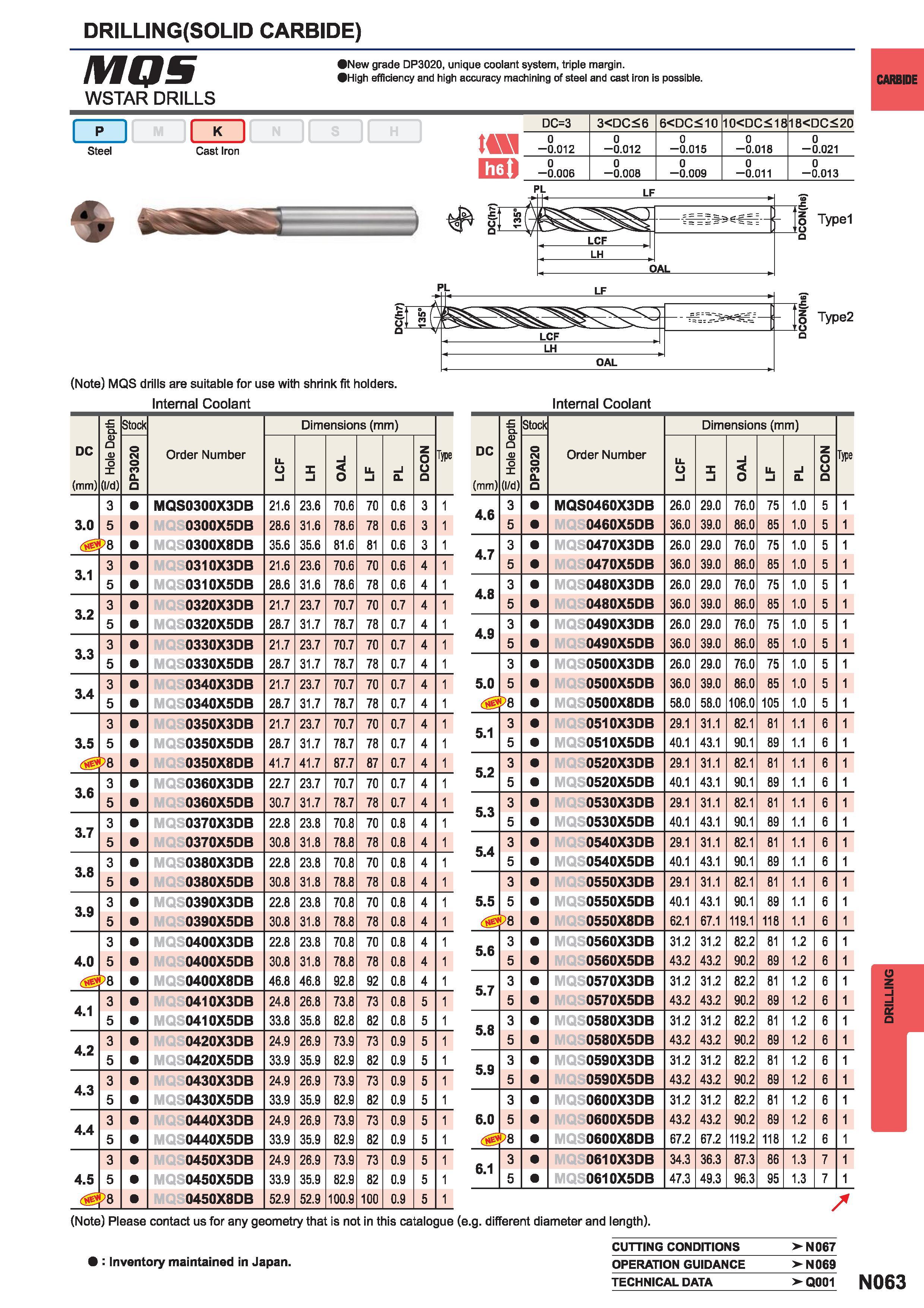

1379 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N063

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N063 1379 ENG Lab2u

DRILLING (SOLID CARBIDE) MQS WSTAR DRILLS ONew grade DP3020 unique coolant system triple margin. High efficiency and high accuracy machining of steel and cast iron is possible. K Steel Cast Iron DC3 3DC6 6DC10 10DC18 1 CM VI v ten 0 -0.012 0 -0.012 0 -0.015 0 -0.018 0 -0.021 0 -0.006 0 -0.008 0 -0.009 0 -0.011 0 -0.013 Typel Type2 (Note) MQS drills are suitable for use with shrink fit holders. Internal Coolant Internal Coolant DC (mm) a Hole Depth Stock Order Number Dimensions (mm) Type DP3020 LCF z i OAL u. (L DCON 4.6 3 MQS0460X3DB 26.0 29.0 76.0 75 1.0 5 1 5 0460X5DB 36.0 39.0 86.0 85 1.0 5 1 4.7 3 0470X3DB 26.0 29.0 76.0 75 1.0 5 1 5 0470X5DB 36.0 39.0 86.0 85 1.0 5 1 4.8 3 0480X3DB 26.0 29.0 76.0 75 1.0 5 1 5 0480X5DB 36.0 39.0 86.0 85 1.0 5 1 4.9 3 0490X3DB 26.0 29.0 76.0 75 1.0 5 1 5 0490X5DB 36.0 39.0 86.0 85 1.0 5 1 3 0500X3DB 26.0 29.0 76.0 75 1.0 5 1 5.0 5 0500X5DB 36.0 39.0 86.0 85 1.0 5 1 dS 8 0500X8DB 58.0 58.0 106.0 105 1.0 5 1 5.1 3 0510X3DB 29.1 31.1 82.1 81 1.1 6 1 5 0510X5DB 40.1 43.1 90.1 89 1.1 6 1 5.2 3 0520X3DB 29.1 31.1 82.1 81 1.1 6 1 5 0520X5DB 40.1 43.1 90.1 89 1.1 6 1 5.3 3 0530X3DB 29.1 31.1 82.1 81 1.1 6 1 5 0530X5DB 40.1 43.1 90.1 89 1.1 6 1 5.4 3 0540X3DB 29.1 31.1 82.1 81 1.1 6 1 5 0540X5DB 40.1 43.1 90.1 89 1.1 6 1 3 0550X3DB 29.1 31.1 82.1 81 1.1 6 1 5.5 5 0550X5DB 40.1 43.1 90.1 89 1.1 6 1 r8 0550X8DB 62.1 67.1 119.1 118 1.1 6 1 5.6 3 0560X3DB 31.2 31.2 82.2 81 1.2 6 1 5 0560X5DB 43.2 43.2 90.2 89 1.2 6 1 5.7 3 0570X3DB 31.2 31.2 82.2 81 1.2 6 1 5 0570X5DB 43.2 43.2 90.2 89 1.2 6 1 5.8 3 0580X3DB 31.2 31.2 82.2 81 1.2 6 1 5 0580X5DB 43.2 43.2 90.2 89 1.2 6 1 5.9 3 0590X3DB 31.2 31.2 82.2 81 1.2 6 1 5 0590X5DB 43.2 43.2 90.2 89 1.2 6 1 3 0600X3DB 31.2 31.2 82.2 81 1.2 6 1 6.0 5 0600X5DB 43.2 43.2 90.2 89 1.2 6 1 8 0600X8DB 67.2 67.2 119.2 118 1.2 6 1 6.1 3 0610X3DB 34.3 36.3 87.3 86 1.3 7 1 5 0610X5DB 47.3 49.3 96.3 95 1.3 7 1 DC (mm) Hole Depth Stock Order Number Dimensions (mm) Type DP3020 LCF z i OAL u. DCON 3 MQS0300X3DB 21.6 23.6 70.6 70 0.6 3 1 3.0 5 0300X5DB 28.6 31.6 78.6 78 0.6 3 1 dd r8 0300X8DB 35.6 35.6 81.6 81 0.6 3 1 3.1 3 0310X3DB 21.6 23.6 70.6 70 0.6 4 1 5 0310X5DB 28.6 31.6 78.6 78 0.6 4 1 3.2 3 0320X3DB 21.7 23.7 70.7 70 0.7 4 1 5 0320X5DB 28.7 31.7 78.7 78 0.7 4 1 3.3 3 0330X3DB 21.7 23.7 70.7 70 0.7 4 1 5 0330X5DB 28.7 31.7 78.7 78 0.7 4 1 3.4 3 0340X3DB 21.7 23.7 70.7 70 0.7 4 1 5 0340X5DB 28.7 31.7 78.7 78 0.7 4 1 3 0350X3DB 21.7 23.7 70.7 70 0.7 4 1 3.5 5 0350X5DB 28.7 31.7 78.7 78 0.7 4 1 dd r8 0350X8DB 41.7 41.7 87.7 87 0.7 4 1 3.6 3 0360X3DB 22.7 23.7 70.7 70 0.7 4 1 5 0360X5DB 30.7 31.7 78.7 78 0.7 4 1 3.7 3 0370X3DB 22.8 23.8 70.8 70 0.8 4 1 5 0370X5DB 30.8 31.8 78.8 78 0.8 4 1 3.8 3 0380X3DB 22.8 23.8 70.8 70 0.8 4 1 5 0380X5DB 30.8 31.8 78.8 78 0.8 4 1 3.9 3 0390X3DB 22.8 23.8 70.8 70 0.8 4 1 5 0390X5DB 30.8 31.8 78.8 78 0.8 4 1 3 0400X3DB 22.8 23.8 70.8 70 0.8 4 1 4.0 5 0400X5DB 30.8 31.8 78.8 78 0.8 4 1 r8 0400X8DB 46.8 46.8 92.8 92 0.8 4 1 4.1 3 0410X3DB 24.8 26.8 73.8 73 0.8 5 1 5 0410X5DB 33.8 35.8 82.8 82 0.8 5 1 4.2 3 0420X3DB 24.9 26.9 73.9 73 0.9 5 1 5 0420X5DB 33.9 35.9 82.9 82 0.9 5 1 4.3 3 0430X3DB 24.9 26.9 73.9 73 0.9 5 1 5 0430X5DB 33.9 35.9 82.9 82 0.9 5 1 4.4 3 0440X3DB 24.9 26.9 73.9 73 0.9 5 1 5 0440X5DB 33.9 35.9 82.9 82 0.9 5 1 3 0450X3DB 24.9 26.9 73.9 73 0.9 5 1 4.5 5 0450X5DB 33.9 35.9 82.9 82 0.9 5 1 8 0450X8DB 52.9 52.9 100.9 100 0.9 5 1 (Note) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). CUTTING CONDITIONS N067 Inventory maintained in Japan. OPERATION GUIDANCE -N069 TECHNICAL DATA -Q001 CARBIDE N063 DRILLING
