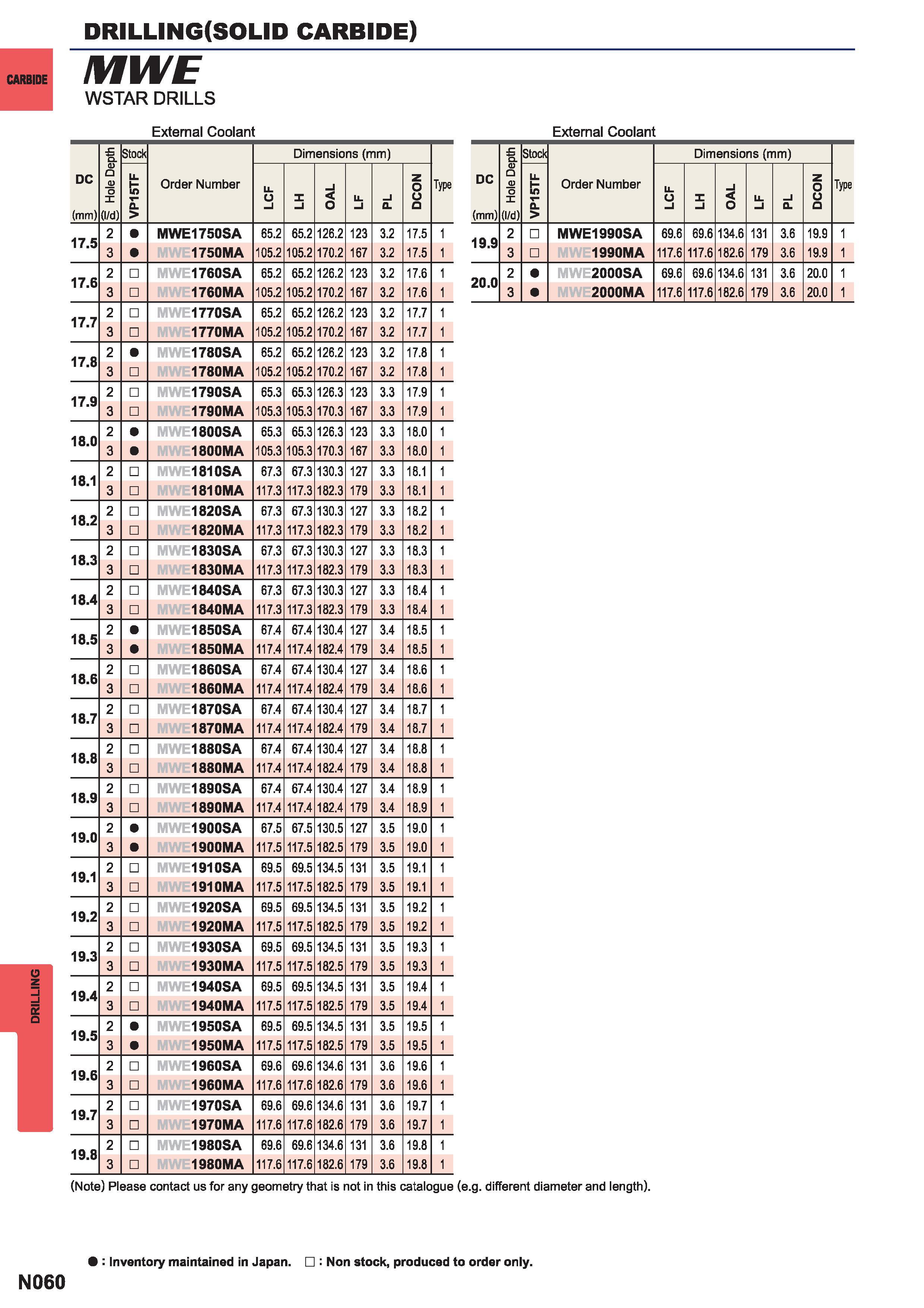

1376 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.N060

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. N060 1376 ENG Lab2u

DRILLING DRILLING (SOLID CARBIDE) CARBIDE MWE WSTAR DRILLS External Coolant External Coolant DC (mm) g Hole Depth Stock Order Number Dimensions (mm) Type VP15TF u. a i T i O IL i a. DCON 17.5 2 MWE1750SA 65.2 65.2 126.2 123 3.2 17.5 1 3 1750MA 105.2 105.2 170.2 167 3.2 17.5 1 17.6 2 1760SA 65.2 65.2 126.2 123 3.2 17.6 1 3 1760MA 105.2 105.2 170.2 167 3.2 17.6 1 17.7 2 1770SA 65.2 65.2 126.2 123 3.2 17.7 1 3 1770MA 105.2 105.2 170.2 167 3.2 17.7 1 17.8 2 1780SA 65.2 65.2 126.2 123 3.2 17.8 1 3 1780MA 105.2 105.2 170.2 167 3.2 17.8 1 17.9 2 1790SA 65.3 65.3 126.3 123 3.3 17.9 1 3 1790MA 105.3 105.3 170.3 167 3.3 17.9 1 18.0 2 1800SA 65.3 65.3 126.3 123 3.3 18.0 1 3 1800MA 105.3 105.3 170.3 167 3.3 18.0 1 18.1 2 181OSA 67.3 67.3 130.3 127 3.3 18.1 1 3 1810MA 117.3 117.3 182.3 179 3.3 18.1 1 18.2 2 1820SA 67.3 67.3 130.3 127 3.3 18.2 1 3 1820MA 117.3 117.3 182.3 179 3.3 18.2 1 18.3 2 1830SA 67.3 67.3 130.3 127 3.3 18.3 1 3 1830MA 117.3 117.3 182.3 179 3.3 18.3 1 18.4 2 1840SA 67.3 67.3 130.3 127 3.3 18.4 1 3 1840MA 117.3 117.3 182.3 179 3.3 18.4 1 18.5 2 1850SA 67.4 67.4 130.4 127 3.4 18.5 1 3 1850MA 117.4 117.4 182.4 179 3.4 18.5 1 18.6 2 1860SA 67.4 67.4 130.4 127 3.4 18.6 1 3 1860MA 117.4 117.4 182.4 179 3.4 18.6 1 18.7 2 1870SA 67.4 67.4 130.4 127 3.4 18.7 1 3 1870MA 117.4 117.4 182.4 179 3.4 18.7 1 18.8 2 1880SA 67.4 67.4 130.4 127 3.4 18.8 1 3 1880MA 117.4 117.4 182.4 179 3.4 18.8 1 18.9 2 1890SA 67.4 67.4 130.4 127 3.4 18.9 1 3 1890MA 117.4 117.4 182.4 179 3.4 18.9 1 19.0 2 1900SA 67.5 67.5 130.5 127 3.5 19.0 1 3 1900MA 117.5 117.5 182.5 179 3.5 19.0 1 19.1 2 191OSA 69.5 69.5 134.5 131 3.5 19.1 1 3 1910MA 117.5 117.5 182.5 179 3.5 19.1 1 19.2 2 1920SA 69.5 69.5 134.5 131 3.5 19.2 1 3 1920MA 117.5 117.5 182.5 179 3.5 19.2 1 19.3 2 1930SA 69.5 69.5 134.5 131 3.5 19.3 1 3 1930MA 117.5 117.5 182.5 179 3.5 19.3 1 19.4 2 1940SA 69.5 69.5 134.5 131 3.5 19.4 1 3 1940MA 117.5 117.5 182.5 179 3.5 19.4 1 19.5 2 1950SA 69.5 69.5 134.5 131 3.5 19.5 1 3 1950MA 117.5 117.5 182.5 179 3.5 19.5 1 19.6 2 1960SA 69.6 69.6 134.6 131 3.6 19.6 1 3 1960MA 117.6 117.6 182.6 179 3.6 19.6 1 19.7 2 1970SA 69.6 69.6 134.6 131 3.6 19.7 1 3 1970MA 117.6 117.6 182.6 179 3.6 19.7 1 19.8 2 1980SA 69.6 69.6 134.6 131 3.6 19.8 1 3 1980MA 117.6 117.6 182.6 179 3.6 19.8 1 DC (mm) g Hole Depth Stock Order Number Dimensions (mm) Type VP15TF LCF T OAL u. a. DCON 2 MWE1990SA 69.6 69.6 134.6 131 3.6 19.9 1 19.9 3 1990MA 117.6 117.6 182.6 179 3.6 19.9 1 2 2000SA 69.6 69.6 134.6 131 3.6 20.0 1 U.U 3 2000MA 117.6 117.6 182.6 179 3.6 20.0 1 (Note) Please contact us for any geometry that is not in this catalogue (e.g. different diameter and length). Inventory maintained in Japan. Non stock produced to order only. N060
