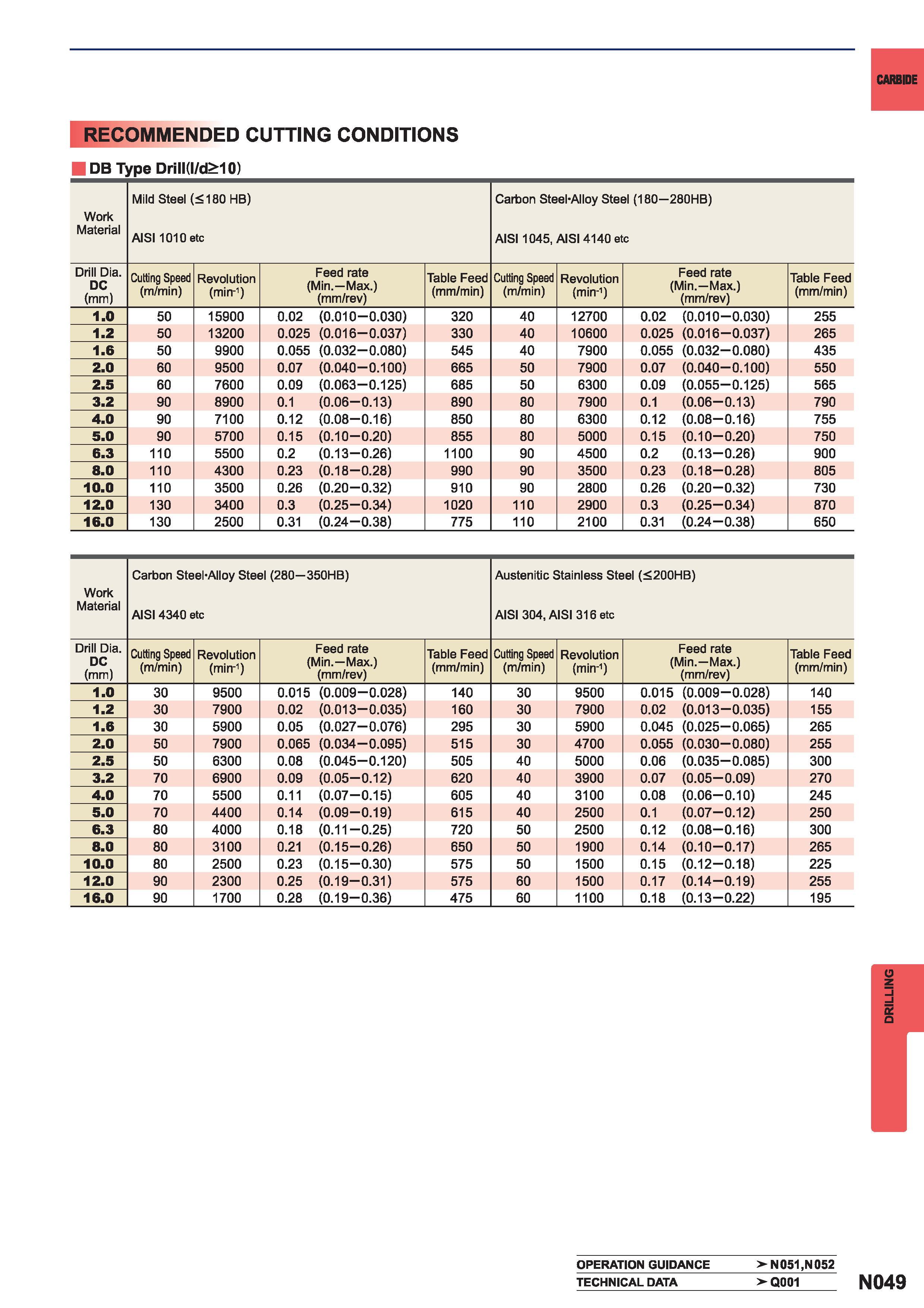

CARBIDE RECOMMENDED CUTTING CONDITIONS DB Type Drill(l d10) Work Material Mild Steel (180 HB) AIS11010 etc Carbon Steel-Alloy Steel (180-280HB) AISI 1045 AISI 4140 etc Drill Dia. DC (mm) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 1.0 50 15900 0.02 (0.010-0.030) 320 40 12700 0.02 (0.010-0.030) 255 1.2 50 13200 0.025 (0.016-0.037) 330 40 10600 0.025 (0.016-0.037) 265 1.6 50 9900 0.055 (0.032-0.080) 545 40 7900 0.055 (0.032-0.080) 435 2.0 60 9500 0.07 (0.040-0.100) 665 50 7900 0.07 (0.040-0.100) 550 2.5 60 7600 0.09 (0.063-0.125) 685 50 6300 0.09 (0.055-0.125) 565 3.2 90 8900 0.1 (0.06-0.13) 890 80 7900 0.1 (0.06-0.13) 790 4.0 90 7100 0.12 (0.08-0.16) 850 80 6300 0.12 (0.08-0.16) 755 5.0 90 5700 0.15 (0.10-0.20) 855 80 5000 0.15 (0.10-0.20) 750 6.3 110 5500 0.2 (0.13-0.26) 1100 90 4500 0.2 (0.13-0.26) 900 8.0 110 4300 0.23 (0.18-0.28) 990 90 3500 0.23 (0.18-0.28) 805 10.0 110 3500 0.26 (0.20-0.32) 910 90 2800 0.26 (0.20-0.32) 730 12.0 130 3400 0.3 (0.25-0.34) 1020 110 2900 0.3 (0.25-0.34) 870 16.0 130 2500 0.31 (0.24-0.38) 775 110 2100 0.31 (0.24-0.38) 650 Work Material Carbon Steel-Alloy Steel (280-350HB) AISI 4340 etc Austenitic Stainless Steel (200HB) AISI 304 AISI 316 etc Drill Dia. DC (mm) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) Cutting Speed (m/min) Revolution (min-1) Feed rate (Min. Max.) (mm/rev) Table Feed (mm/min) 1.0 30 9500 0.015 (0.009-0.028) 140 30 9500 0.015 (0.009-0.028) 140 1.2 30 7900 0.02 (0.013-0.035) 160 30 7900 0.02 (0.013-0.035) 155 1.6 30 5900 0.05 (0.027-0.076) 295 30 5900 0.045 (0.025-0.065) 265 2.0 50 7900 0.065 (0.034-0.095) 515 30 4700 0.055 (0.030-0.080) 255 2.5 50 6300 0.08 (0.045-0.120) 505 40 5000 0.06 (0.035-0.085) 300 3.2 70 6900 0.09 (0.05-0.12) 620 40 3900 0.07 (0.05-0.09) 270 4.0 70 5500 0.11 (0.07-0.15) 605 40 3100 0.08 (0.06-0.10) 245 5.0 70 4400 0.14 (0.09-0.19) 615 40 2500 0.1 (0.07-0.12) 250 6.3 80 4000 0.18 (0.11-0.25) 720 50 2500 0.12 (0.08-0.16) 300 8.0 80 3100 0.21 (0.15-0.26) 650 50 1900 0.14 (0.10-0.17) 265 10.0 80 2500 0.23 (0.15-0.30) 575 50 1500 0.15 (0.12-0.18) 225 12.0 90 2300 0.25 (0.19-0.31) 575 60 1500 0.17 (0.14-0.19) 255 16.0 90 1700 0.28 (0.19-0.36) 475 60 1100 0.18 (0.13-0.22) 195 OPERATION GUIDANCE N051N052 TECHNICAL DATA Q001 N049 DRILLING
