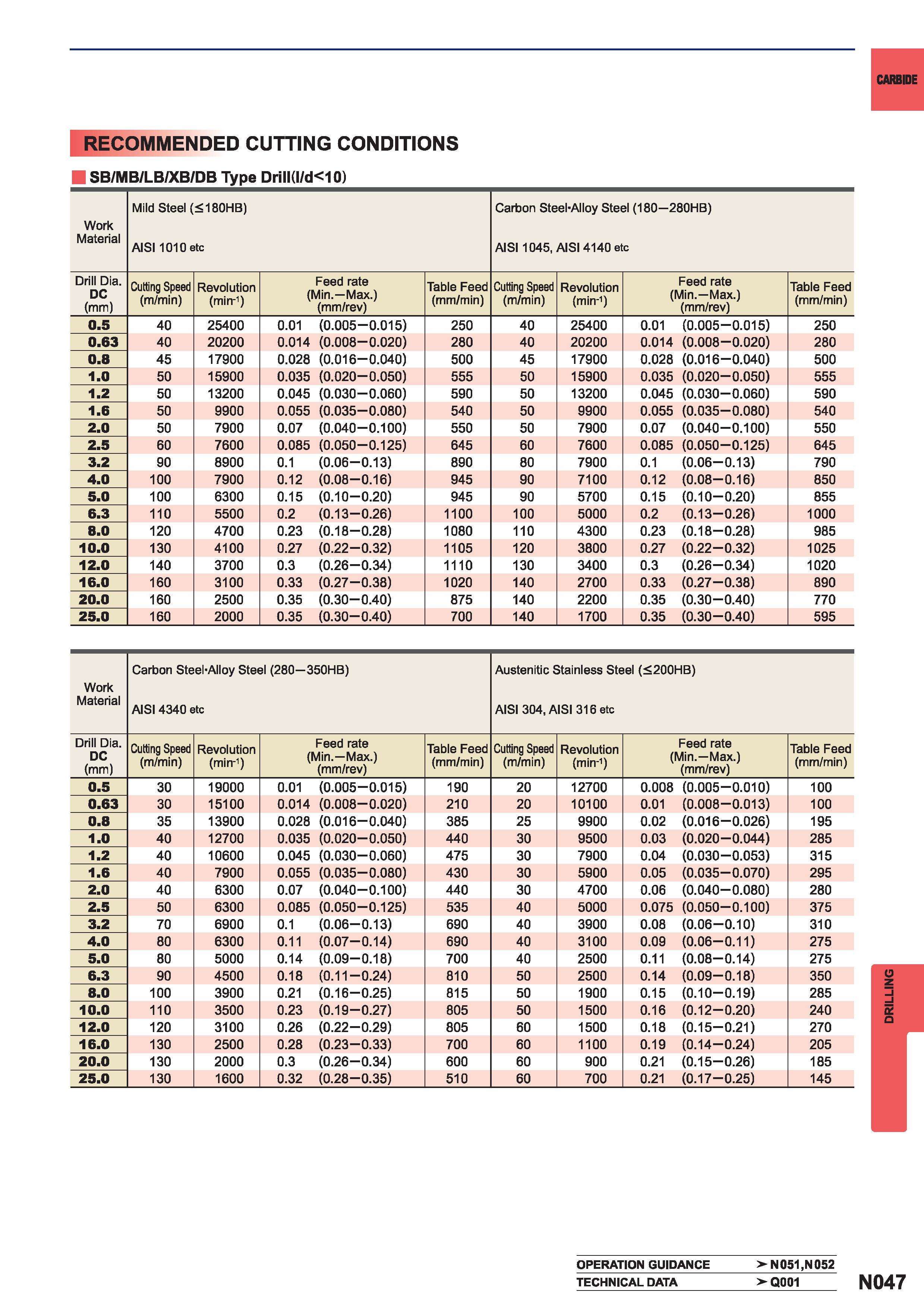

CARBIDE RECOMMENDED CUTTING CONDITIONS SB MB LB XB DB Type Drill(l d10) Work Material Mild Steel (180HB) AIS11010 etc Carton Steel-Alloy Steel (180 280HB) AISI 1045 AISI 4140 etc Drill Dia. Cutting Speed Revolution Feed rate Table Feed Cutting Speed Revolution Feed rate Table Feed DC (mm) (m/min) (min-1) iviin. max.; (mm/rev) (mm/min) (m/min) (min-1) vim. i vi ax. j (mm/rev) (mm/min) 0.5 40 25400 0.01 (0.005-0.015) 250 40 25400 0.01 (0.005-0.015) 250 0.63 40 20200 0.014 (0.008-0.020) 280 40 20200 0.014 (0.008-0.020) 280 0.8 45 17900 0.028 (0.016-0.040) 500 45 17900 0.028 (0.016-0.040) 500 1.0 50 15900 0.035 (0.020-0.050) 555 50 15900 0.035 (0.020-0.050) 555 1.2 50 13200 0.045 (0.030-0.060) 590 50 13200 0.045 (0.030-0.060) 590 1.6 50 9900 0.055 (0.035-0.080) 540 50 9900 0.055 (0.035-0.080) 540 2.0 50 7900 0.07 (0.040-0.100) 550 50 7900 0.07 (0.040-0.100) 550 2.5 60 7600 0.085 (0.050-0.125) 645 60 7600 0.085 (0.050-0.125) 645 3.2 90 8900 0.1 (0.06-0.13) 890 80 7900 0.1 (0.06-0.13) 790 4.0 100 7900 0.12 (0.08-0.16) 945 90 7100 0.12 (0.08-0.16) 850 5.0 100 6300 0.15 (0.10-0.20) 945 90 5700 0.15 (0.10-0.20) 855 6.3 110 5500 0.2 (0.13-0.26) 1100 100 5000 0.2 (0.13-0.26) 1000 8.0 120 4700 0.23 (0.18-0.28) 1080 110 4300 0.23 (0.18-0.28) 985 10.0 130 4100 0.27 (0.22-0.32) 1105 120 3800 0.27 (0.22-0.32) 1025 12.0 140 3700 0.3 (0.26-0.34) 1110 130 3400 0.3 (0.26-0.34) 1020 16.0 160 3100 0.33 (0.27-0.38) 1020 140 2700 0.33 (0.27-0.38) 890 20.0 160 2500 0.35 (0.30-0.40) 875 140 2200 0.35 (0.30-0.40) 770 25.0 160 2000 0.35 (0.30-0.40) 700 140 1700 0.35 (0.30-0.40) 595 Work Material Carbon Steel-Alloy Steel (280 350HB) AISI 4340 etc Austenitic Stainless Steel (200HB) AISI 304 AISI 316 etc Drill Dia. Cutting Speed Revolution Feed rate Table Feed Cutting Speed Revolution Feed rate Table Feed DC (mm) (m/min) (min-1) iviin. max.; (mm/rev) (mm/min) (m/min) (min-1) min. iviax.j (mm/rev) (mm/min) 0.5 30 19000 0.01 (0.005-0.015) 190 20 12700 0.008 (0.005-0.010) 100 0.63 30 15100 0.014 (0.008-0.020) 210 20 10100 0.01 (0.008-0.013) 100 0.8 35 13900 0.028 (0.016-0.040) 385 25 9900 0.02 (0.016-0.026) 195 1.0 40 12700 0.035 (0.020-0.050) 440 30 9500 0.03 (0.020-0.044) 285 1.2 40 10600 0.045 (0.030-0.060) 475 30 7900 0.04 (0.030-0.053) 315 1.6 40 7900 0.055 (0.035-0.080) 430 30 5900 0.05 (0.035-0.070) 295 2.0 40 6300 0.07 (0.040-0.100) 440 30 4700 0.06 (0.040-0.080) 280 2.5 50 6300 0.085 (0.050-0.125) 535 40 5000 0.075 (0.050-0.100) 375 3.2 70 6900 0.1 (0.06-0.13) 690 40 3900 0.08 (0.06-0.10) 310 4.0 80 6300 0.11 (0.07-0.14) 690 40 3100 0.09 (0.06-0.11) 275 5.0 80 5000 0.14 (0.09-0.18) 700 40 2500 0.11 (0.08-0.14) 275 6.3 90 4500 0.18 (0.11-0.24) 810 50 2500 0.14 (0.09-0.18) 350 8.0 100 3900 0.21 (0.16-0.25) 815 50 1900 0.15 (0.10-0.19) 285 10.0 110 3500 0.23 (0.19-0.27) 805 50 1500 0.16 (0.12-0.20) 240 12.0 120 3100 0.26 (0.22-0.29) 805 60 1500 0.18 (0.15-0.21) 270 16.0 130 2500 0.28 (0.23-0.33) 700 60 1100 0.19 (0.14-0.24) 205 20.0 130 2000 0.3 (0.26-0.34) 600 60 900 0.21 (0.15-0.26) 185 25.0 130 1600 0.32 (0.28-0.35) 510 60 700 0.21 (0.17-0.25) 145 OPERATION GUIDANCE N051N052 TECHNICAL DATA Q001 N047 DRILLING
