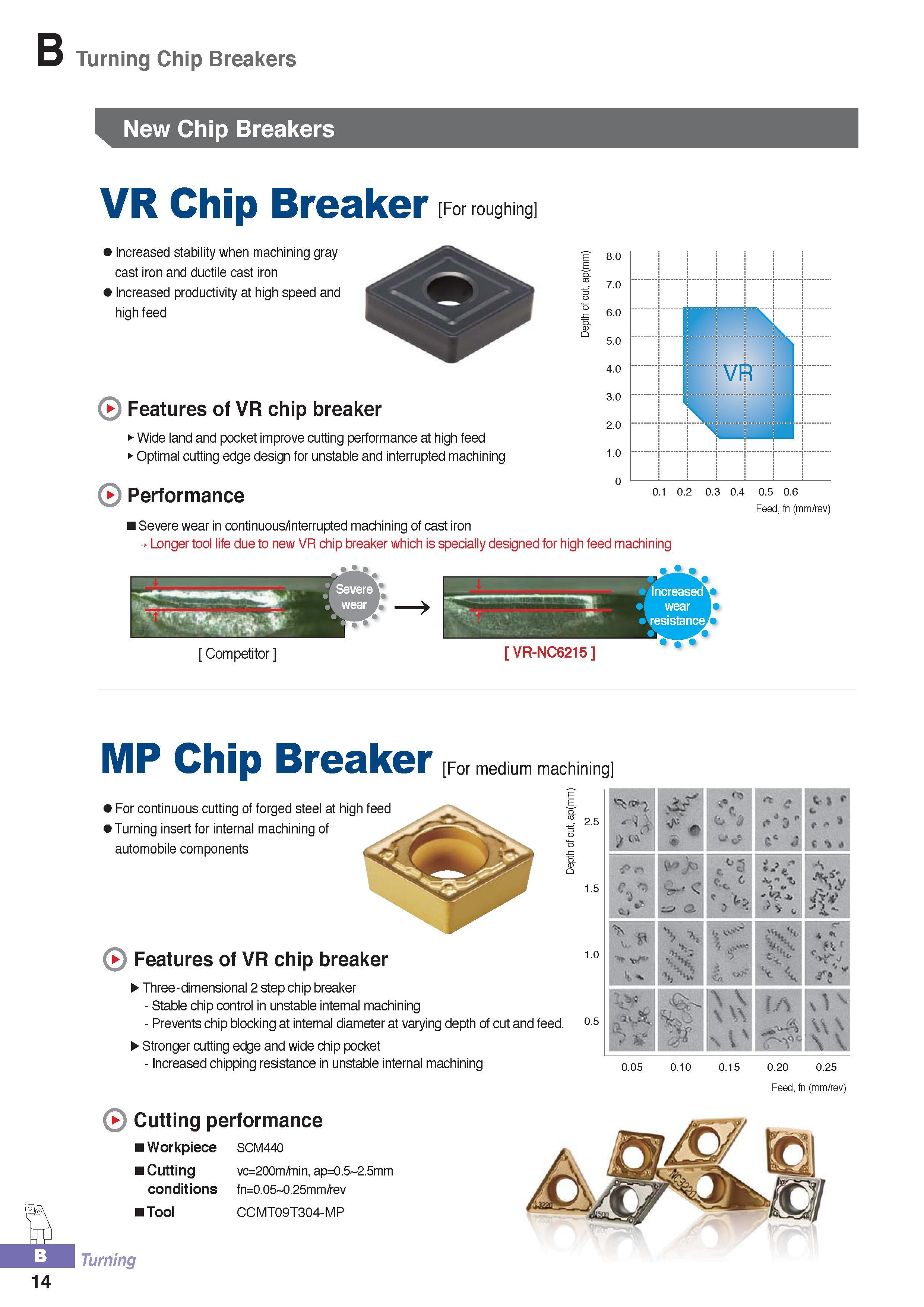

Описание новых токарных режущих геометрий сменных многогранных пластин Korloy Особенности, преимущества и диаграммы областей применения Рекомендуемые режимы резания при точении Глубина резания и подача Turning Chip Breakers New Chip Breakers VR Chip Breaker For roughing Increased stability when machining gray cast iron and ductile cast iron Increased productivity at high speed and high feed Features of VR chip breaker Wide land and pocket improve cutting performance at high feed Optimal cutting edge design for unstable and interrupted machining Performance 0.1 0.2 0.3 0.4 0.5 0.6 Feed, fn (mm/rev) Severe wear in continuous/interrupted machining of cast iron Longer tool life due to new VR chip breaker which is specially designed for high feed machining Increased wear resistance Competitor VR-NC6215 MP Chip Breaker For continuous cutting of forged steel at high feed Turning insert for internal machining of automobile components For medium machining Features of VR chip breaker Three-dimensional 2 step chip breaker - Stable chip control in unstable internal machining - Prevents chip blocking at internal diameter at varying depth of cut and feed. Stronger cutting edge and wide chip pocket - Increased chipping resistance in unstable internal machining Cutting performance Workpiece Cutting conditions Tool SCM440 vc=200m/min, ap=0.5 2.5mm fn=0.05 0.25mm/rev CCMT09T304-MP Turning
