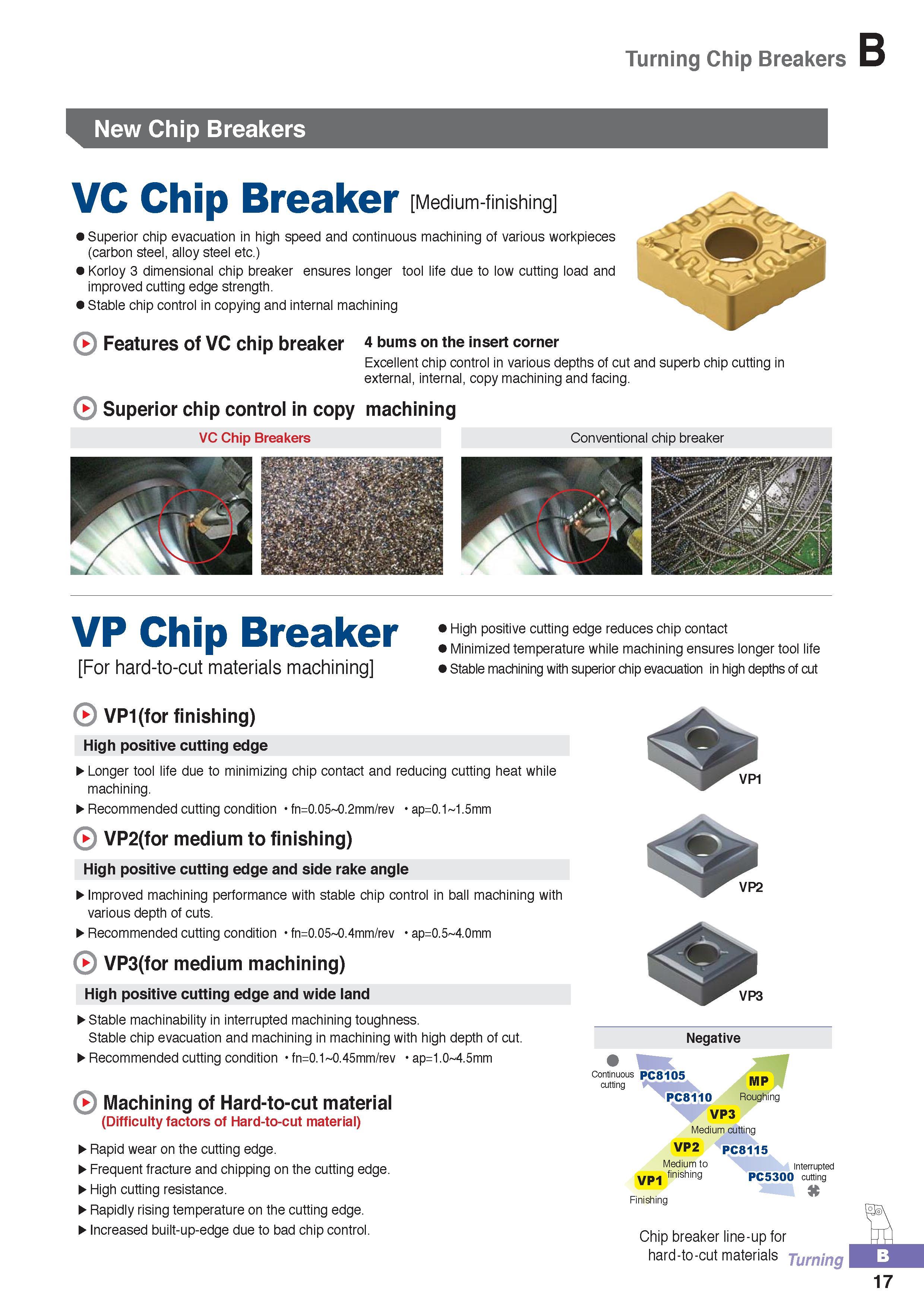

New metal cutting tools from South Korea Turning Chip Breakers Korloy VC Medium-finishing machining Superior chip evacuation in high speed and continuous machining of various workpieces (carbon steel, alloy steel etc.) Korloy 3 dimensional chip breaker ensures longer tool life due to low cutting load and improved cutting edge strength. Stable chip control in copying and internal machining Features of VC chip breaker 4 bums on the insert corner Excellent chip control in various depths of cut and superb chip cutting in external, internal, copy machining and facing. Superior chip control in copy machining VC Chip Breakers Conventional chip breaker VP Chip Breaker For hard-to-cut materials machining High positive cutting edge reduces chip contact Minimized temperature while machining ensures longer tool life Stable machining with superior chip evacuation in high depths of cut VP1(for finishing) High positive cutting edge Longer tool life due to minimizing chip contact and reducing cutting heat while machining. Recommended cutting condition fn=0.05 0.2mm/rev ap=0.1 1.5mm VP2(for medium to finishing) High positive cutting edge and side rake angle Improved machining performance with stable chip control in ball machining with various depth of cuts. Recommended cutting condition fn=0.05 0.4mm/rev ap=0.5 4.0mm VP3(for medium machining) High positive cutting edge and wide land Stable machinability in interrupted machining toughness. Stable chip evacuation and machining in machining with high depth of cut. Recommended cutting condition fn=0.1 0.45mm/rev ap=1.0 4.5mm VP1 VP2 VP3 Negative Machining of Hard-to-cut material (Difficulty factors of Hard-to-cut material) Rapid wear on the cutting edge. Frequent fracture and chipping on the cutting edge. High cutting resistance. Rapidly rising temperature on the cutting edge. Increased built-up-edge due to bad chip control. Continuous PC8105 cutting PC811 MP PC8110 Roughing VP3 Medium cutting VP2 PC8115 Medium to interrupted VP1 Finishing finishing PC5300 cutting Chip breaker line-up for hard-to-cut materials Turning 17 New Chip Breakers Chip Breaker
