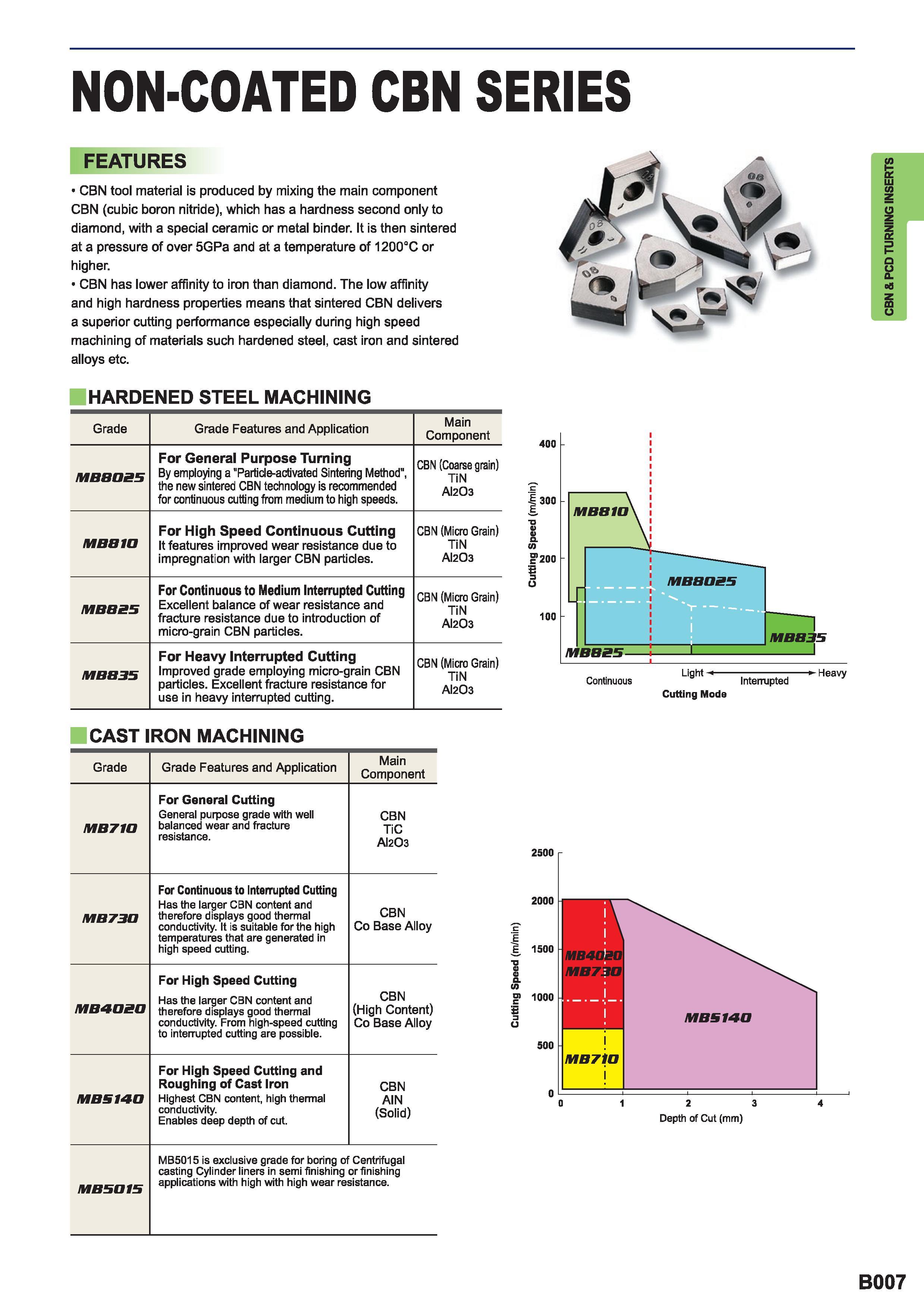

213 Каталог MITSUBISHI 2015 Токарный и вращающийся инструмент Инструментальные решения Стр.B007

Каталог MITSUBISHI 2015 Металлорежущий инструмент Стр. B007 0213 ENG Lab2u

NON-COATED CBN SERIES FEATURES CBN tool material is produced by mixing the main component CBN (cubic boron nitride) which has a hardness second only to diamond with a special ceramic or metal binder. It is then sintered at a pressure of over 5GPa and at a temperature of 1200C or higher. CBN has lower affinity to iron than diamond. The low affinity and high hardness properties means that sintered CBN delivers a superior cutting performance especially during high speed machining of materials such hardened steel cast iron and sintered alloys etc. HARDENED STEEL MACHINING Grade Grade Features and Application Main Component IUBBOBS For General Purpose Turning By employing a "Particle-activated Sintering Method" the new sintered CBN technology is recommended for continuous cutting from medium to high speeds. CBN (Coarse grain) TiN AI2O3 s For High Speed Continuous Cutting It features improved wear resistance due to impregnation with larger CBN particles. CBN (Micro Grain) TiN AI2O3 IUBBSS For Continuous to Medium Interrupted Cutting Excellent balance of wear resistance and fracture resistance due to introduction of micro-grain CBN particles. CBN (Micro Grain) TiN AI2O3 MBB35 For Heavy Interrupted Cutting Improved grade employing micro-grain CBN particles. Excellent fracture resistance for use in heavy interrupted cutting. CBN (Micro Grain) TiN AI2O3 Continuous Light -Cutting Mode Interrupted -Heavy CAST IRON MACHINING Grade Grade Features and Application Main Component MB71B For General Cutting General purpose grade with well balanced wear and fracture resistance. CBN TiC AI2O3 MB73B For Continuous to Interrupted Cutting Has the larger CBN content and therefore displays good thermal conductivity. It is suitable for the high temperatures that are generated in high speed cutting. CBN Co Base Alloy MB4Uga For High Speed Cutting Has the larger CBN content and therefore displays good thermal conductivity. From high-speed cutting to interrupted cutting are possible. CBN (High Content) Co Base Alloy MBS 140 For High Speed Cutting and Roughing of Cast Iron Highest CBN content high thermal conductivity. Enables deep depth of cut. CBN AIN (Solid) lUBSOIS MB5015 is exclusive grade for boring of Centrifugal casting Cylinder liners in semi finishing or finishing applications with high with high wear resistance. S u Depth of Cut (mm) B007 CBN & PCD TURNING INSERTS
