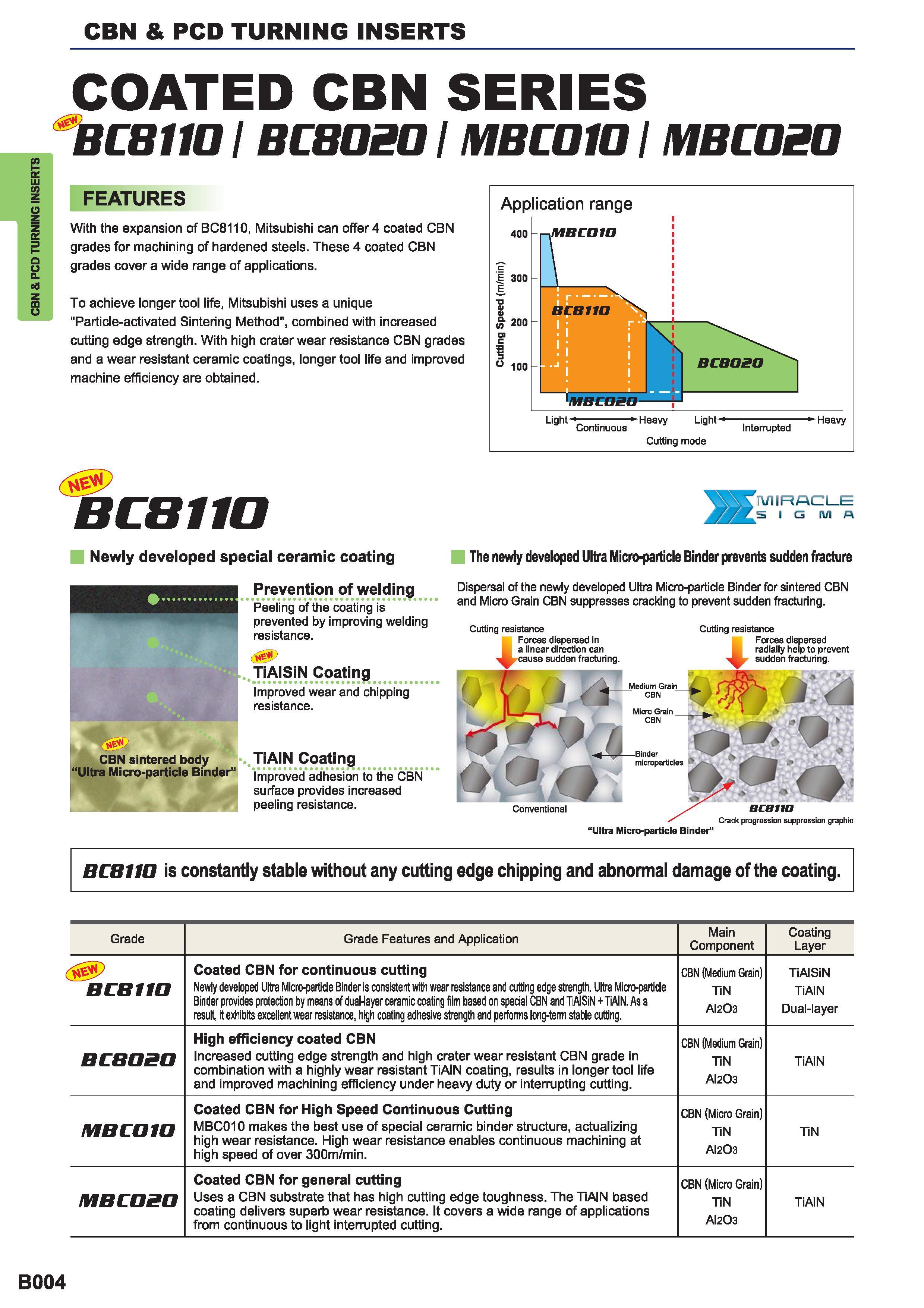

Indexable CBN turning inserts Mitsubishi Coated CBN grades BC8110 FEATURES With the expansion of BC8110 BC8020 MBC010 MBC020 Mitsubishi Materials Corporation can offer 4 coated CBN grades for machining of hardened steels. These 4 coated CBN grades cover a wide range of applications. To achieve longer tool life Mitsubishi uses a unique "Particle-activated Sintering Method" combined with increased cutting edge strength. With high crater wear resistance CBN grades and a wear resistant ceramic coatings longer tool life and improved machine efficiency are obtained. Application range 400 E 300 E 200 100 Bcaasa Light- Continuous -Heavy Light- Interrupted -Heavy Cutting mode BCBIIO . rv iiRflcu i g iui n Newly developed special ceramic coating Prevention of welding Peeling of the coating is prevented by improving welding resistance. we TiAISiN Coating Improved wear and chipping resistance. CBN sintered body TiAIN Coating Ultra Micro-particle Binder improved adhesion to the CBN surface provides increased peeling resistance. The newly developed Ultra Micro-particle Binder prevents sudden fracture Dispersal of the newly developed Ultra Micro-particle Binder for sintered CBN and Micro Grain CBN suppresses cracking to prevent sudden fracturing. Cutting resistance Forces dispersed in a linear direction can cause sudden fracturing. Cutting resistance Forces dispersed radially help to prevent sudden fracturing. Conventional Ultra Micro-particle Binder bcouo Crack progression suppression graphic BCBIIO is constantly stable without any cutting edge chipping and abnormal damage of the coating. Grade Grade Features and Application Main Component Coating Layer BCBIIO Coated CBN for continuous cutting Newly developed Ultra Micro-partide Binder is consistent with wear resistance and cutting edge strength. Ultra Micro-partide Binder provides protection by means of duaUayer ceramic coating film based on special CBN and TiAISiN + TiAIN. As a result it exhibits excellent wear resistance high coating adhesive strength and performs long-term stable cutting. CBN (Medium Grain) TiN AI203 TiAISiN TiAIN Dual-layer bcbobo High efficiency coated CBN Increased cutting edge strength and high crater wear resistant CBN grade in combination with a highly wear resistant TiAIN coating results in longer tool life and improved machining efficiency under heavy duty or interrupting cutting. CBN (Medium Grain) TiN AI203 TiAIN MBcaia Coated CBN for High Speed Continuous Cutting MBC010 makes the best use of special ceramic binder structure actualizing high wear resistance. High wear resistance enables continuous machining at high speed of over 300m/min. CBN (Micro Grain) TiN AI2O3 TiN MBCOgo Coated CBN for general cutting Uses a CBN substrate that has high cutting edge toughness. The TiAIN based coating delivers superb wear resistance. It covers a wide range of applications from continuous to light interrupted cutting. CBN (Micro Grain) TiN AI2O3 TiAIN B004 & PCD TURNING INSERTS CBN & PCD TURNING INSERTS COATED CBN SERIES BCBIIO1BC80201MBCOIO MBCOSO
