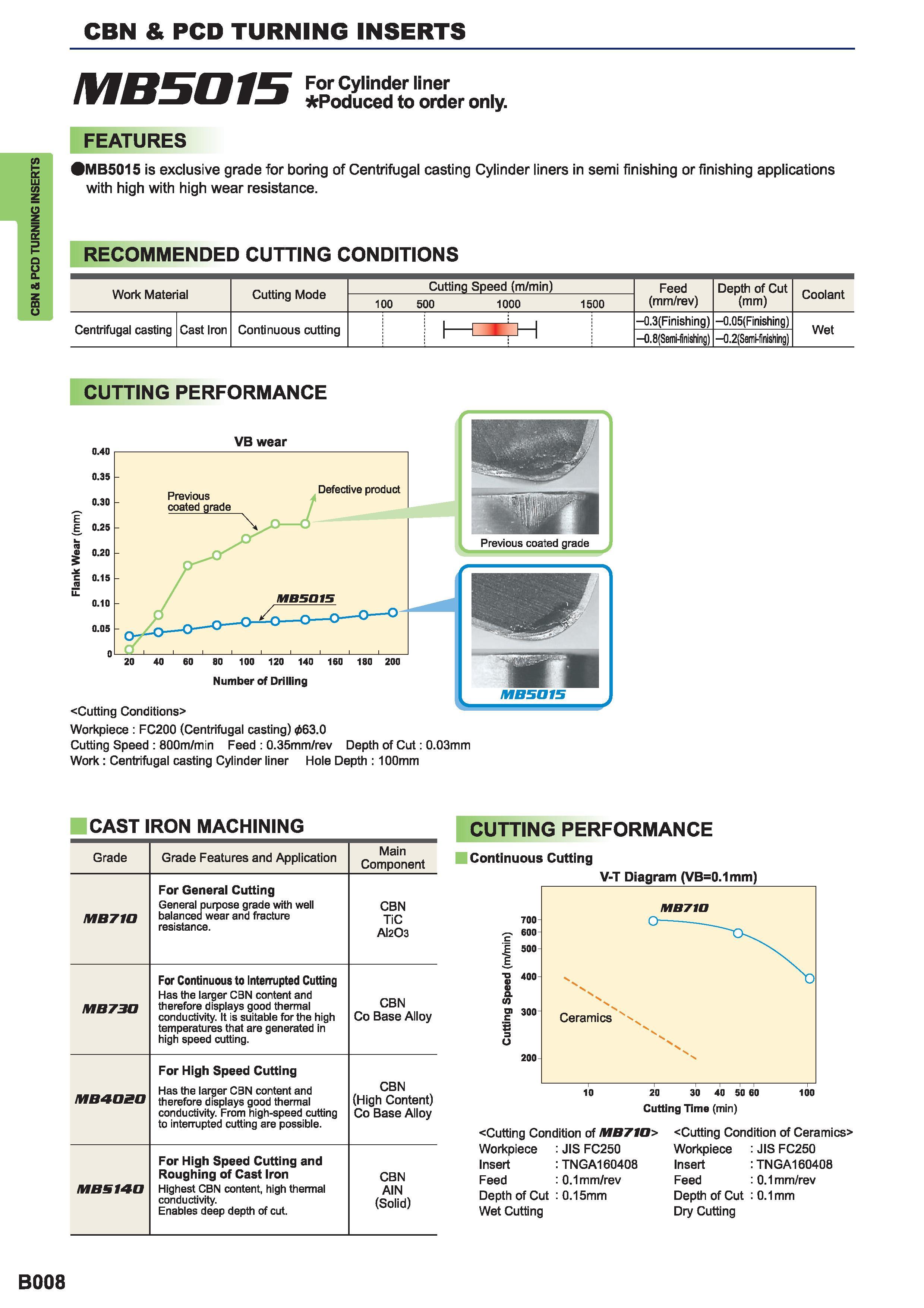

CBN & PCD TURNING INSERTS CBN & PCD TURNING INSERTS WAT For Cylinder liner Poduced to order only. FEATURES MB5015 is exclusive grade for boring of Centrifugal casting Cylinder liners in semi finishing or finishing applications with high with high wear resistance. RECOMMENDED CUTTING CONDITIONS Work Material Cutting Mode Cutting Speed (m/min) Feed (mm/rev) Depth of Cut (mm) Coolant 100 500 1000 1500 Centrifugal casting Cast Iron Continuous cutting 0.3(Finishing) -0.05(Finishing) Wet LJ 0.8(Semi-finishing) 0.2(Semi-finishing) CUTTING PERFORMANCE MBSOIS Cutting Conditions Workpiece FC200 (Centrifugal casting) 063.0 Cutting Speed 800m/min Feed 0.35mm/rev Depth of Cut 0.03mm Work Centrifugal casting Cylinder liner Hole Depth 100mm CAST IRON MACHINING Grade Grade Features and Application Main Component MB710 For General Cutting General purpose grade with well balanced wear and fracture resistance. CBN TiC AI2O3 MB73B For Continuous to Interrupted Cutting Has the larger CBN content and therefore displays good thermal conductivity. It is suitable for the high temperatures that are generated in high speed cutting. CBN Co Base Alloy MB40B0 For High Speed Cutting Has the larger CBN content and therefore displays good thermal conductivity. From high-speed cutting to interrupted cutting are possible. CBN (High Content) Co Base Alloy MBS 140 For High Speed Cutting and Roughing of Cast Iron Highest CBN content high thermal conductivity. Enables deep depth of cut. CBN AIN (Solid) CUTTING PERFORMANCE Continuous Cutting V-T Diagram (VB0.1mm) Cutting Time (min) Cutting Condition of MB7ia Cutting Condition of Ceramics Workpiece Insert Feed Depth of Cut Wet Cutting JIS FC250 TNGA160408 0.1 mm/rev 0.15mm Workpiece Insert Feed Depth of Cut Dry Cutting JIS FC250 :TNGA160408 0.1 mm/rev 0.1mm B008
