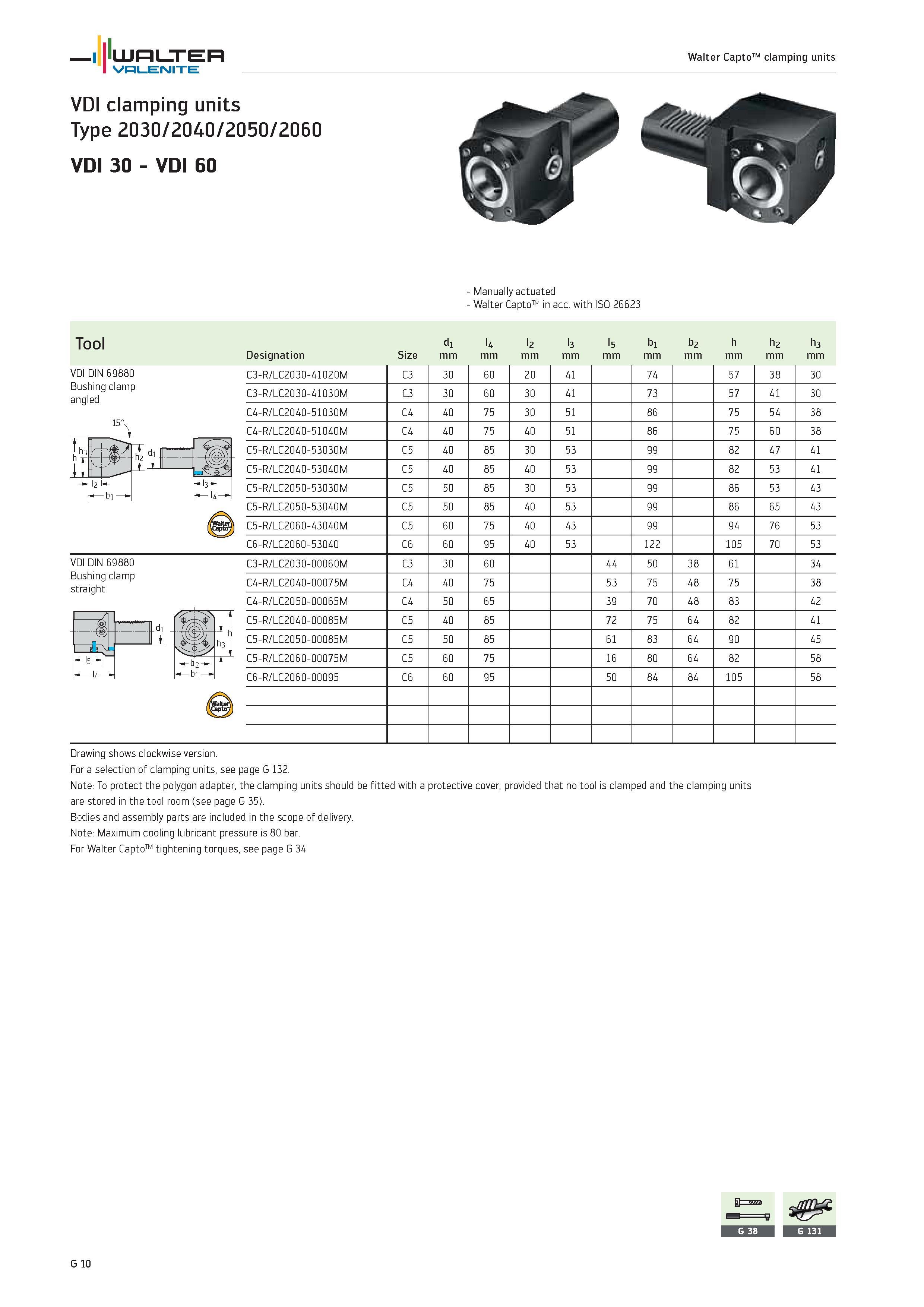

Manually actuated Walter CaptoTM in acc with ISO 26623 Tool d1 l4 l2 l3 l5 b1 b2 h h2 h3 Designation Size mm VDI DIN 69880 Bushing clamp angled C

Manually actuated Walter CaptoTM in acc. with ISO 26623 Tool d1 l4 l2 l3 l5 b1 b2 h h2 h3 Designation Size mm VDI DIN 69880 Bushing clamp angled C3-R/LC2030-41020M C3 30 60 20 41 74 57 38 30 C3-R/LC2030-41030M C3 30 60 30 41 73 57 41 30 C4-R/LC2040-51030M C4 40 75 30 51 86 75 54 38 C4-R/LC2040-51040M C4 40 75 40 51 86 75 60 38 C5-R/LC2040-53030M C5 40 85 30 53 99 82 47 41 C5-R/LC2040-53040M C5 40 85 40 53 99 82 53 41 C5-R/LC2050-53030M C5 50 85 30 53 99 86 53 43 C5-R/LC2050-53040M C5 50 85 40 53 99 86 65 43 C5-R/LC2060-43040M C5 60 75 40 43 99 94 76 53 C6-R/LC2060-53040 C6 60 95 40 53 122 105 70 53 C3-R/LC2030-00060M C3 30 60 44 50 38 61 34 C4-R/LC2040-00075M C4 40 75 53 75 48 75 38 C4-R/LC2050-00065M C4 50 65 39 70 48 83 42 C5-R/LC2040-00085M C5 40 85 72 75 64 82 41 C5-R/LC2050-00085M C5 50 85 61 83 64 90 45 C5-R/LC2060-00075M C5 60 75 16 80 64 82 58 C6-R/LC2060-00095 C6 60 95 50 84 84 105 58 VDI DIN 69880 Bushing clamp straight Drawing shows clockwise version. For a selection of clamping units, see page G 132. Note To protect the polygon adapter, the clamping units should be fitted with a protective cover, provided that no tool is clamped and the clamping units are stored in the tool room (see page G 35). Bodies and assembly parts are included in the scope of delivery. Note Maximum cooling lubricant pressure is 80 bar. For Walter CaptoTM tightening torques, see page G 34 G 10
