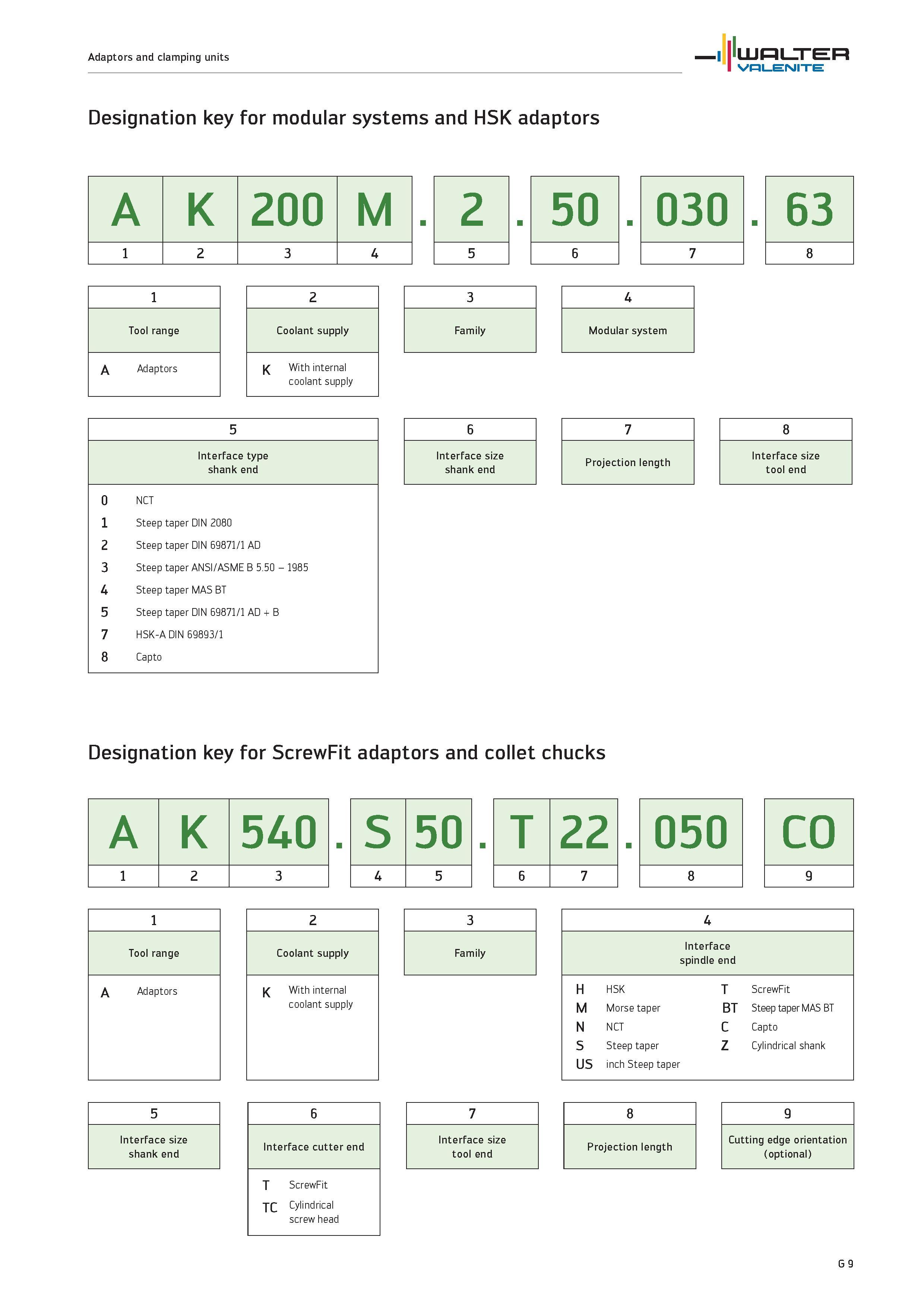

Designation key for modular systems and HSK adaptors A K 200 M Tool range A Adaptors Coolant supply K With internal coolant supply 5 Interface type shank end 0 NCT 1 Steep taper DIN 2080 2 Steep taper DIN 69871/1 AD 3 Steep taper ANSI/ASME B 5.50 1985 4 Steep taper MAS BT 5 Steep taper DIN 69871/1 AD + B 7 HSK-A DIN 69893/1 8 Capto 3 4 Family Modular system 6 7 Interface size shank end Projection length Interface size tool end Designation key for ScrewFit adaptors and collet chucks A K 540 S 50 T 22 Tool range A Adaptors Family 4 Interface spindle end H HSK T ScrewFit M Morse taper BT Steep taper MAS BT N NCT C Capto S Steep taper Z Cylindrical shank US inch Steep taper Interface size shank end Interface cutter end T ScrewFit TC Cylindrical screw head 7 8 9 Interface size tool end Projection length Cutting edge orientation (optional) 3 4 1 2 8 3 1 3 5 6 G 9 Adaptors and clamping units WALTER Valenite
