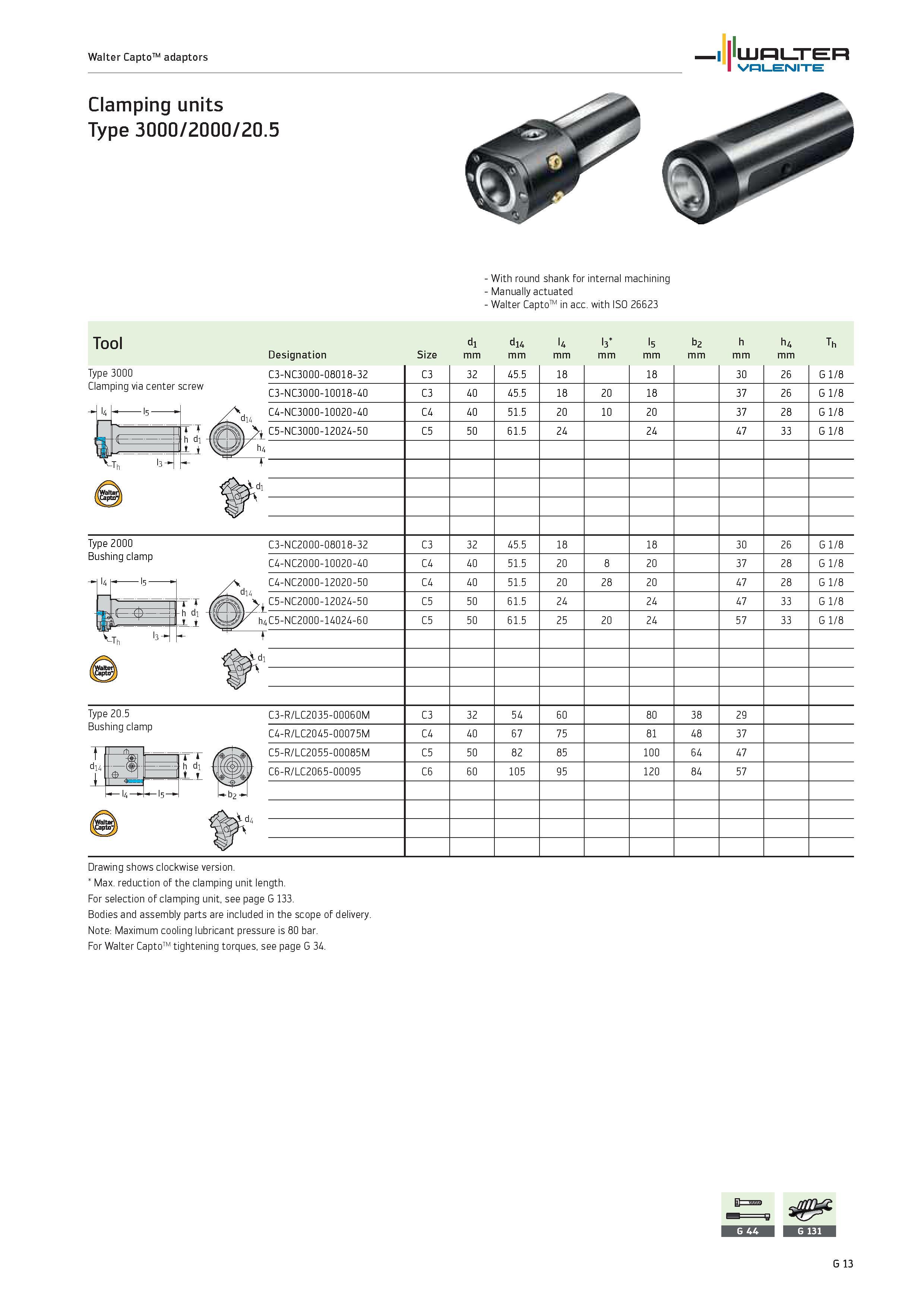

Walter CaptoTM adaptors WALTER Valenite With round shank for internal machining Manually actuated Walter CaptoTM in acc. with ISO 26623 Tool d1 d14 l4 l3 l5 b2 h h4 Th Designation Size mm Type 3000 Clamping via center screw C3-NC3000-08018-32 C3-NC3000-10018-40 C4-NC3000-10020-40 C5-NC3000-12024-50 h4 C3 C3 C4 C5 32 40 40 50 45.5 45.5 51.5 61.5 18 18 20 24 20 10 18 18 20 24 30 37 37 47 26 26 28 33 G 1/8 G 1/8 G 1/8 G 1/8 Type 2000 Bushing clamp HF T'T h d i.± C3-NC2000-08018-32 C3 32 45.5 18 18 30 C4-NC2000-10020-40 C4 40 51.5 20 20 37 C4-NC2000-12020-50 C4 40 51.5 20 28 20 47 C5-NC2000-12024-50 C5 50 61.5 24 24 47 h4C5-NC2000-14024-60 C5 50 61.5 25 20 24 57 26 28 28 33 33 G 1/8 G 1/8 G 1/8 G 1/8 G 1/8 Type 20.5 Bushing clamp l4 -I l5 1 rr h d1 L C3-R/LC2035-00060M C3 32 54 60 80 38 29 C4-R/LC2045-00075M C4 40 67 75 81 48 37 C5-R/LC2055-00085M C5 50 82 85 100 64 47 C6-R/LC2065-00095 C6 60 105 95 120 84 57 8 Drawing shows clockwise version. Max. reduction of the clamping unit length. For selection of clamping unit, see page G 133. Bodies and assembly parts are included in the scope of delivery. Note Maximum cooling lubricant pressure is 80 bar. For Walter CaptoTM tightening torques, see page G 34.
