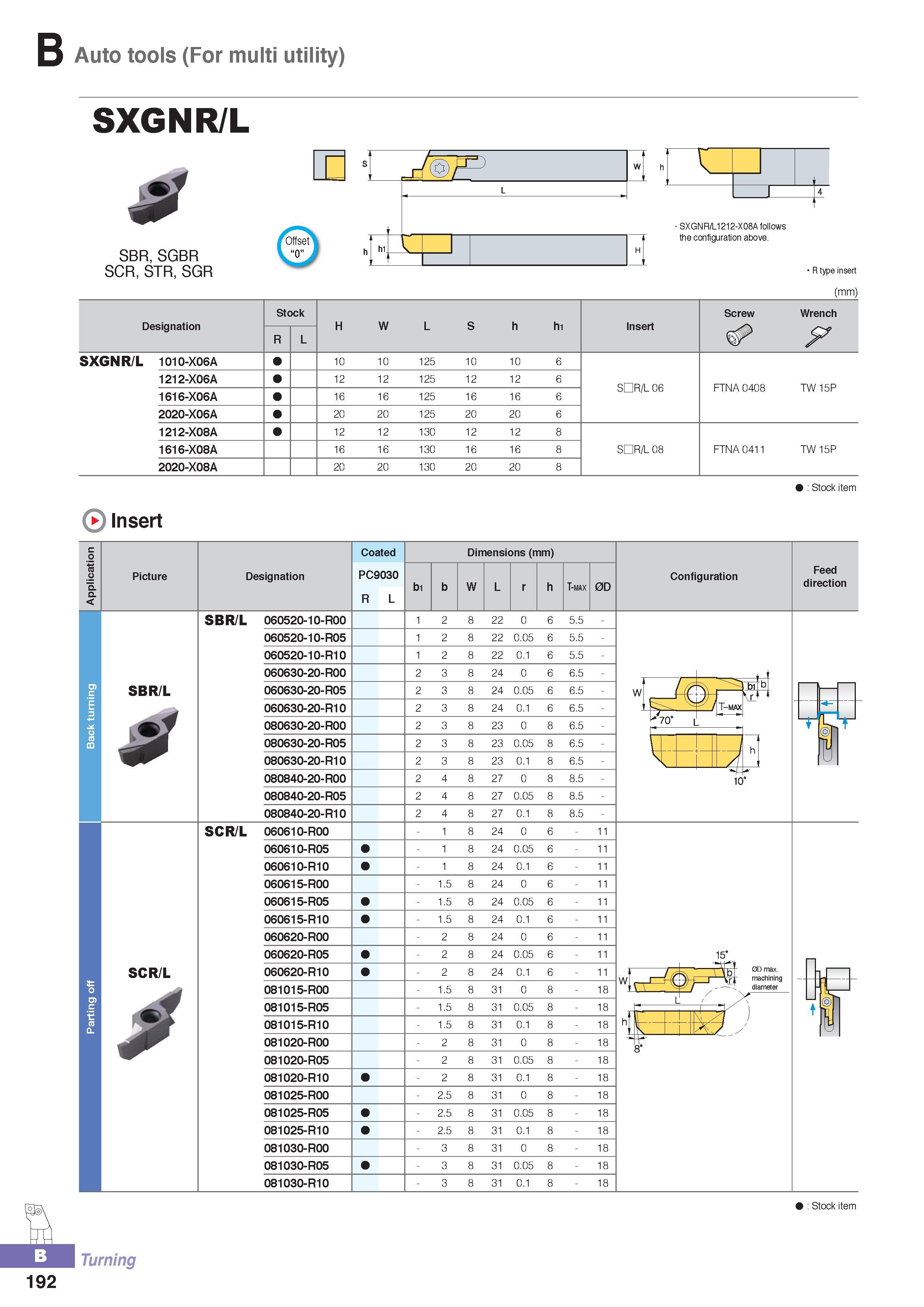

Lathe auto tools Korloy For multi utility SXGNR/L SBR SGBR SCR, STR, SGR Offset SXGNR/L1212-X08A follows the configuration above. R type insert (mm) Designation Stock H W L S h h1 Insert Screw Wrench R L F SXGNR/L 1010-X06A 10 10 125 10 10 6 1212-X06A 12 12 125 12 12 6 SDR/L 06 FTNA 0408 TW 15P 1616-X06A 16 16 125 16 16 6 2020-X06A 20 20 125 20 20 6 1212-X08A 12 12 130 12 12 8 1616-X08A 16 16 130 16 16 8 SDR/L 08 FTNA 0411 TW 15P 2020-X08A 20 20 130 20 20 8 Stock item Insert Picture SBR/L SCR/L Designation Coated PC9030 R L Dimensions (mm) b1 b W L h T-max 0D SBR/L 060520-10-R00 2 8 22 0 6 5.5 - 060520-10-R05 2 8 22 0.05 6 5.5 - 060520-10-R10 2 8 22 0.1 6 5.5 - 060630-20-R00 2 3 8 24 0 6 6.5 - 060630-20-R05 2 3 8 24 0.05 6 6.5 - 060630-20-R10 2 3 8 24 0.1 6 6.5 - 080630-20-R00 2 3 8 23 0 8 6.5 - 080630-20-R05 2 3 8 23 0.05 8 6.5 - 080630-20-R10 2 3 8 23 0.1 8 6.5 - 080840-20-R00 2 4 8 27 0 8 8.5 - 080840-20-R05 2 4 8 27 0.05 8 8.5 - 080840-20-R10 2 4 8 27 0.1 8 8.5 - SCR/L 060610-R00 1 8 24 0 6 11 060610-R05 1 8 24 0.05 6 11 060610-R10 1 8 24 0.1 6 11 060615-R00 1.5 8 24 0 6 11 060615-R05 1.5 8 24 0.05 6 11 060615-R10 1.5 8 24 0.1 6 11 060620-R00 2 8 24 0 6 11 060620-R05 2 8 24 0.05 6 11 060620-R10 2 8 24 0.1 6 11 081015-R00 1.5 8 31 0 8 18 081015-R05 1.5 8 31 0.05 8 18 081015-R10 1.5 8 31 0.1 8 18 081020-R00 2 8 31 0 8 18 081020-R05 2 8 31 0.05 8 18 081020-R10 2 8 31 0.1 8 18 081025-R00 2.5 8 31 0 8 18 081025-R05 2.5 8 31 0.05 8 18 081025-R10 2.5 8 31 0.1 8 18 081030-R00 3 8 31 0 8 18 081030-R05 3 8 31 0.05 8 18 081030-R10 3 8 31 0.1 8 18 Configuration 0D max. machining diameter Feed direction 'a iff \ Stock item Turning 192
