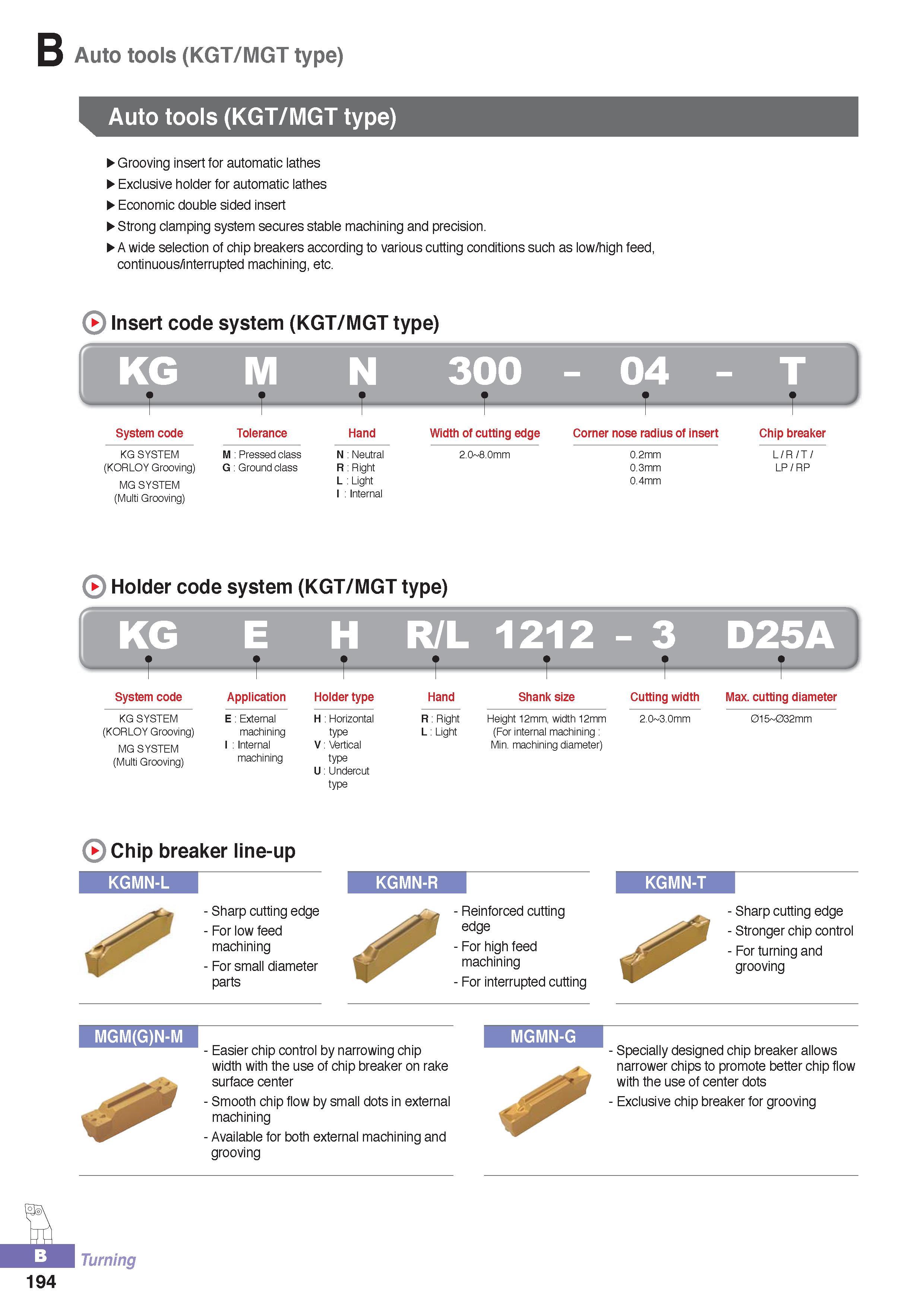

Grooving indexable carbide inserts Korloy for automatic lathes Exclusive holder for automatic lathes Economic double sided insert Strong clamping system secures stable machining and precision. A wide selection of chip breakers according to various cutting conditions such as low/high feed, continuous/interrupted machining, etc. Insert code system (KGT/MGT type) KG System code KG SYSTEM (KORLOY Grooving) MG SYSTEM (Multi Grooving) Tolerance M Pressed class G Ground class Hand N Neutral R Right L Light I Internal 300 - Width of cutting edge 2.0 8.0mm Corner nose radius of insert 0.2mm 0.3mm 0.4mm Chip breaker L / R / T / LP / RP Holder code system (KGT/MGT type) KG H R/L 1212 - 3 D25A System code KG SYSTEM (KORLOY Grooving) MG SYSTEM (Multi Grooving) Application E External machining I Internal machining Holder type H Horizontal type V Vertical type U Undercut type Hand Shank size Cutting width R Right Height 12mm, width 12mm 2.0 3.0mm L Light (For internal machining Min. machining diameter) Max. cutting diameter 015 032mm Chip breaker line-up kgmn-l kgmn-r kgmn-t - Sharp cutting edge - For low feed machining - For small diameter parts Reinforced cutting edge For high feed machining For interrupted cutting - Sharp cutting edge - Stronger chip control - For turning and grooving MGM(G)N-M - Easier chip control by narrowing chip width with the use of chip breaker on rake surface center - Smooth chip flow by small dots in external machining - Available for both external machining and grooving mgmn-g Specially designed chip breaker allows narrower chips to promote better chip flow with the use of center dots Exclusive chip breaker for grooving Turning 194 B Auto tools (KGT/MGT type) Auto tools (KGT/MGT type)
