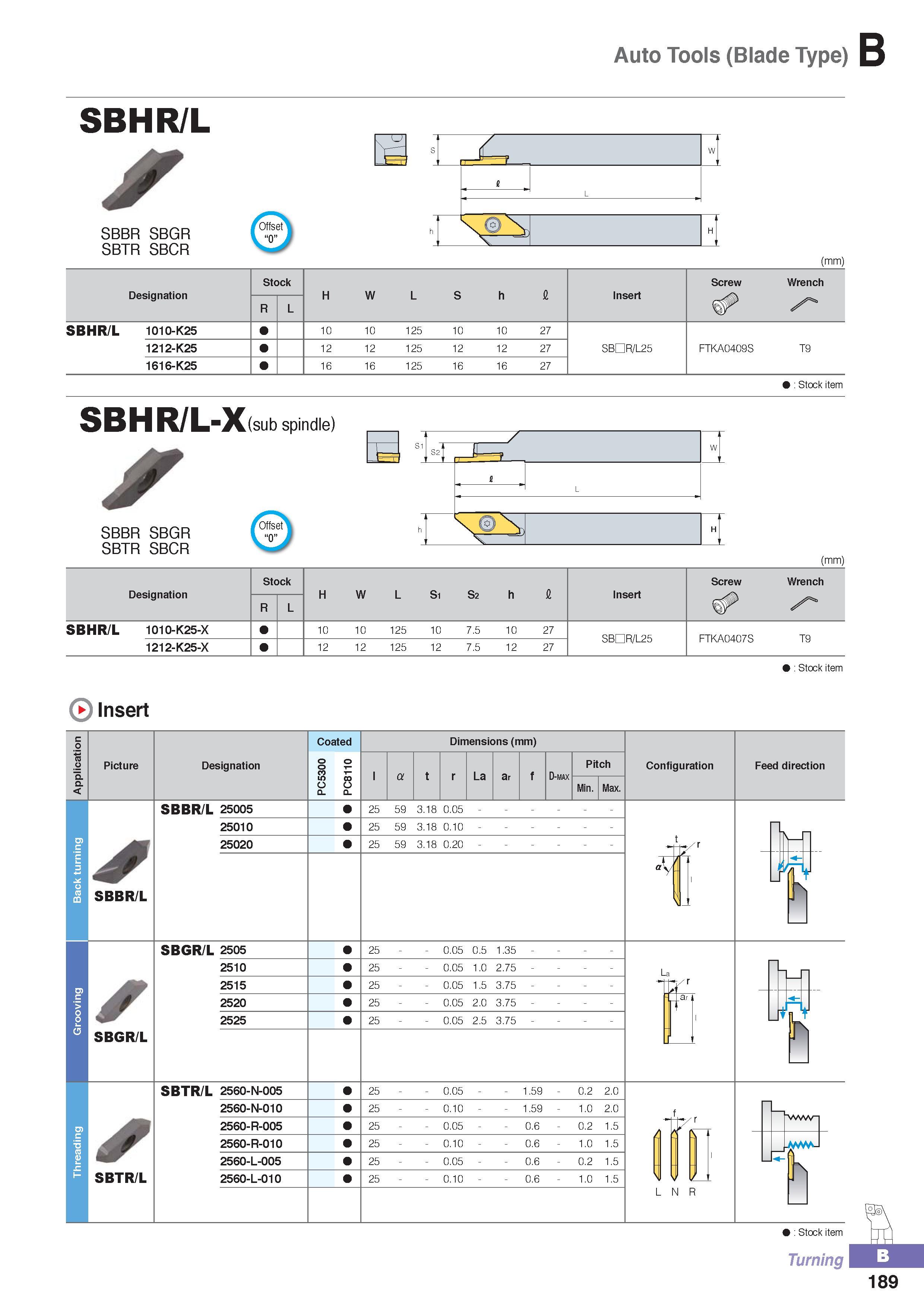

Auto Tools (Blade Type) SBHR/L SBBR SBGR SBTR SBCR Offset (mm) Designation Stock H W L S h Insert Screw Wrench yn R L SBHR/L 1010-K25 10 10 125 10 10 27 1212-K25 12 12 125 12 12 27 SBDR/L25 FTKA0409S T9 1616-K25 16 16 125 16 16 27 Stock item SBHR/L-X (sub spindle) SBBR SBGR SBTR SBCR Offset ‘ / >1 l. W a L L h v U H (mm) Designation Stock H W L S1 S2 h Insert Screw Wrench R L A" SBHR/L 1010-K25-X 10 10 125 10 7.5 10 27 SBDR/L25 FTKA0407S T9 1212-K25-X 12 12 125 12 7.5 12 27 Stock item Insert Picture SBBR/L SBGR/L SBTR/L Designation SBBR/L 25005 25010 25020 SBGR/L 2505 2510 2515 2520 2525 SBTR/L 2560-N-005 2560-N-010 2560-R-005 2560-R-010 2560-L-005 2560-L-010 Coated Dimensions (mm) La D-max Pitch Min. Max. 25 59 3.18 0.05 25 59 3.18 0.10 25 59 3.18 0.20 25 0.05 0.5 1.35 25 0.05 1.0 2.75 25 0.05 1.5 3.75 25 0.05 2.0 3.75 25 0.05 2.5 3.75 25 0.05 1.59 0.2 2.0 25 0.10 1.59 1.0 2.0 25 0.05 0.6 0.2 1.5 25 0.10 0.6 1.0 1.5 25 0.05 0.6 0.2 1.5 25 0.10 0.6 1.0 1.5 Configuration La IF NJ L N R r VT LA Feed direction JW h Kvvvvn h Stock item Turning 189 f
