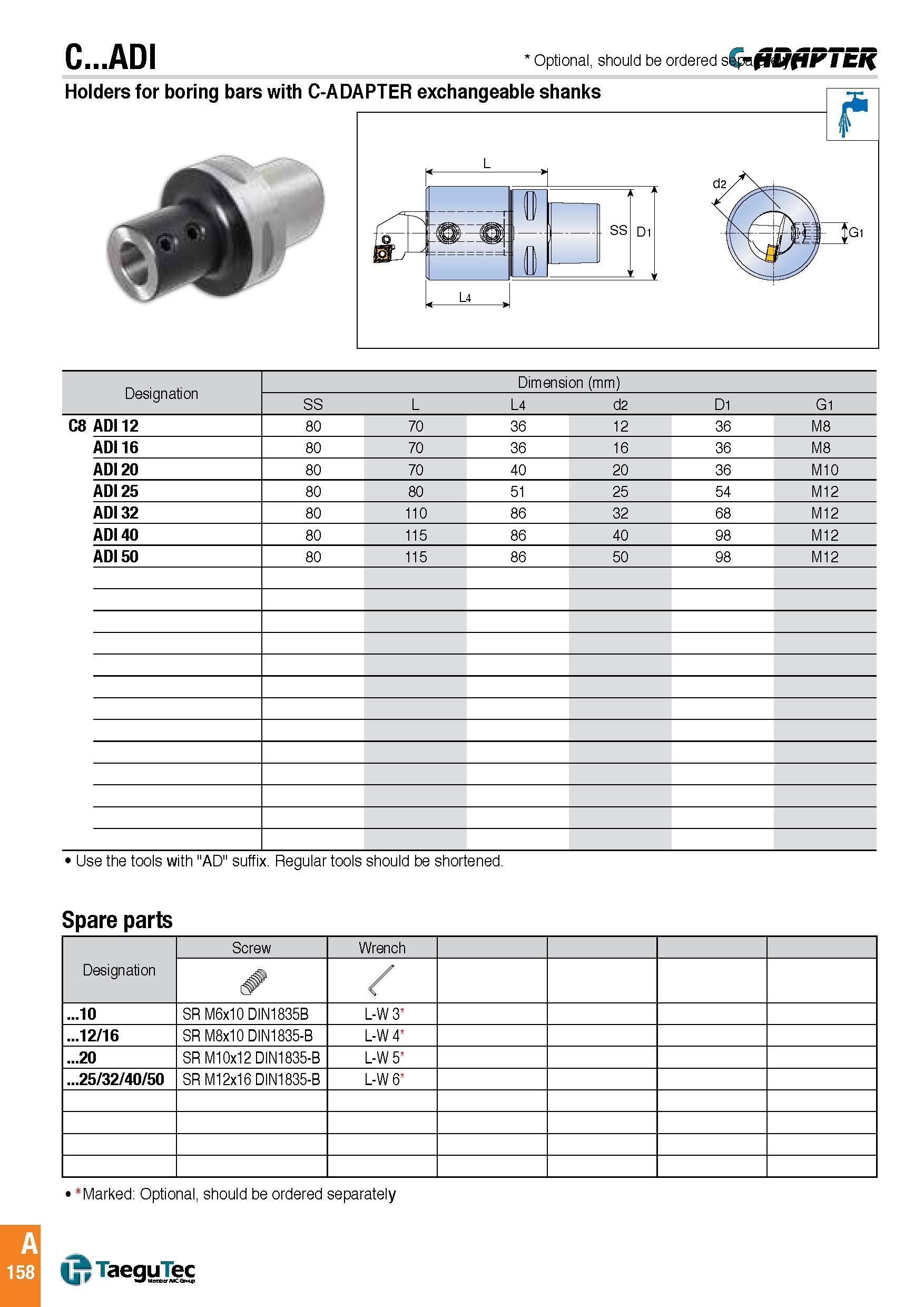

C...ADI ' Optional, should be ordered sepn Bi ff ' I tff Holders for boring bars with C-ADAPTER exchangeable shanks f6 Designation Dimension (mm) SS L L4 d2 D1 G1 C8 ADI 12 80 70 36 12 36 M8 ADI 16 80 70 36 16 36 M8 ADI 20 80 70 40 20 36 M10 ADI 25 80 80 51 25 54 M12 ADI 32 80 110 86 32 68 M12 ADI 40 80 115 86 40 98 M12 ADI 50 80 115 86 50 98 M12 1 Use the tools with "AD" suffix. Regular tools should be shortened. Spare parts L Designation Screw Wrench ...10 SR M6x10 DIN1835B L-W 3 ...12/16 SR M8x10 DIN1835-B L-W 4 ...20 SR M10x12 DIN1835-B L-W 5 ...25/32/40/50 SR M12x16 DIN1835-B L-W 6 A 158 Marked Optional, should be ordered separately (ftTaeguTec
