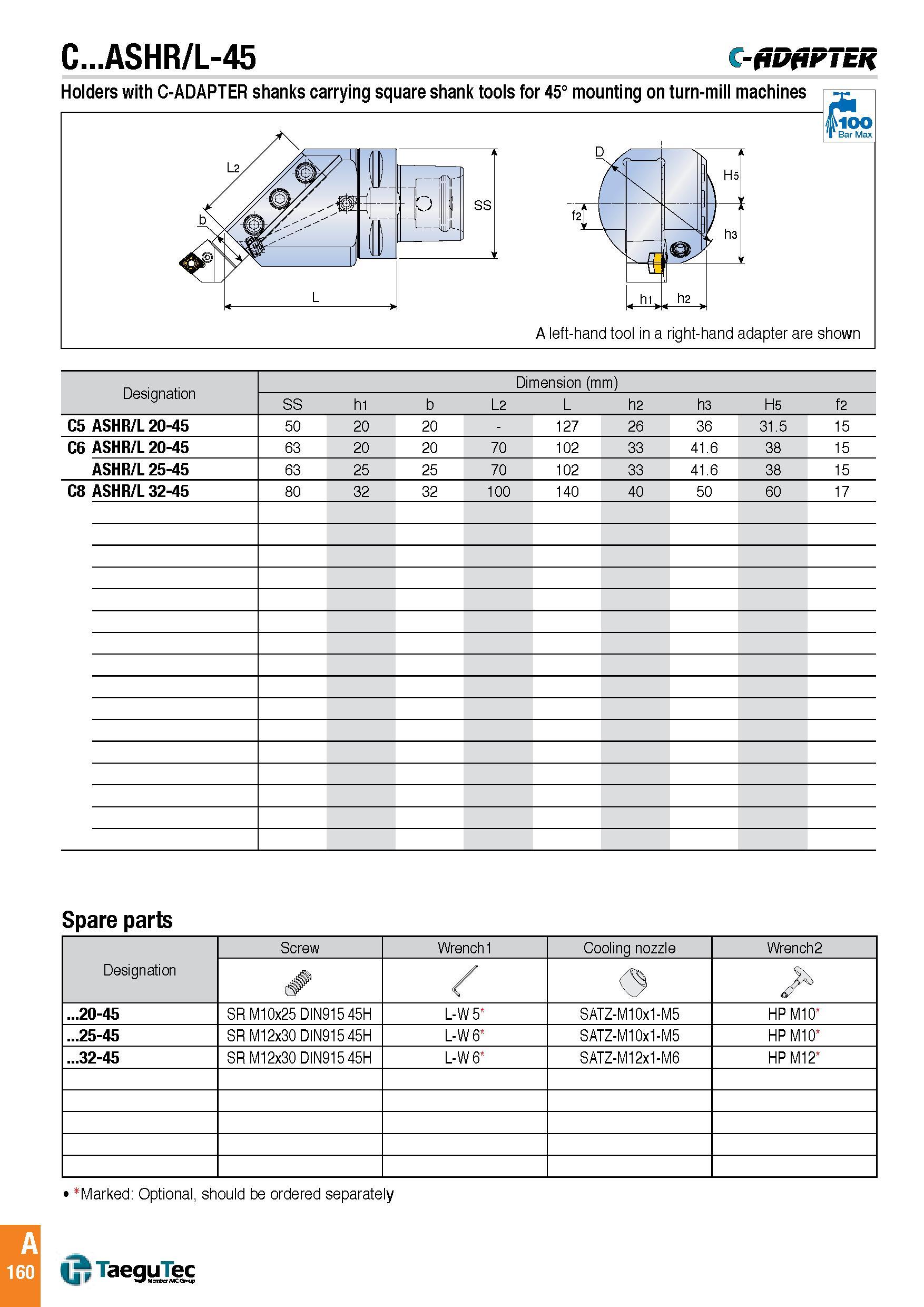

C...ASHR/L-45 -fiufiFTER Holders with C-ADAPTER shanks carrying square shank tools for 45° mounting on turn-mill machines fioo I Bar Max A left-hand tool in a right-hand adapter are shown Designation Dimension (mm) SS h1 b L2 L h2 h3 H5 f2 C5 ASHR/L 20-45 50 20 20 - 127 26 36 31.5 15 C6 ASHR/L 20-45 63 20 20 70 102 33 41.6 38 15 ASHR/L 25-45 63 25 25 70 102 33 41.6 38 15 C8 ASHR/L 32-45 80 32 32 100 140 40 50 60 17 Spare parts Designation Screw Wrench1 Cooling nozzle Wrench2 ...20-45 SR M10x25 DIN915 45H L-W 5 SATZ-M10x1-M5 HP M10 ...25-45 SR M12x30 DIN915 45H L-W 6 SATZ-M10x1-M5 HP M10 ...32-45 SR M12x30 DIN915 45H L-W 6 SATZ-M12x1-M6 HP M12 Marked Optional, should be ordered separately 0 aegu ec
