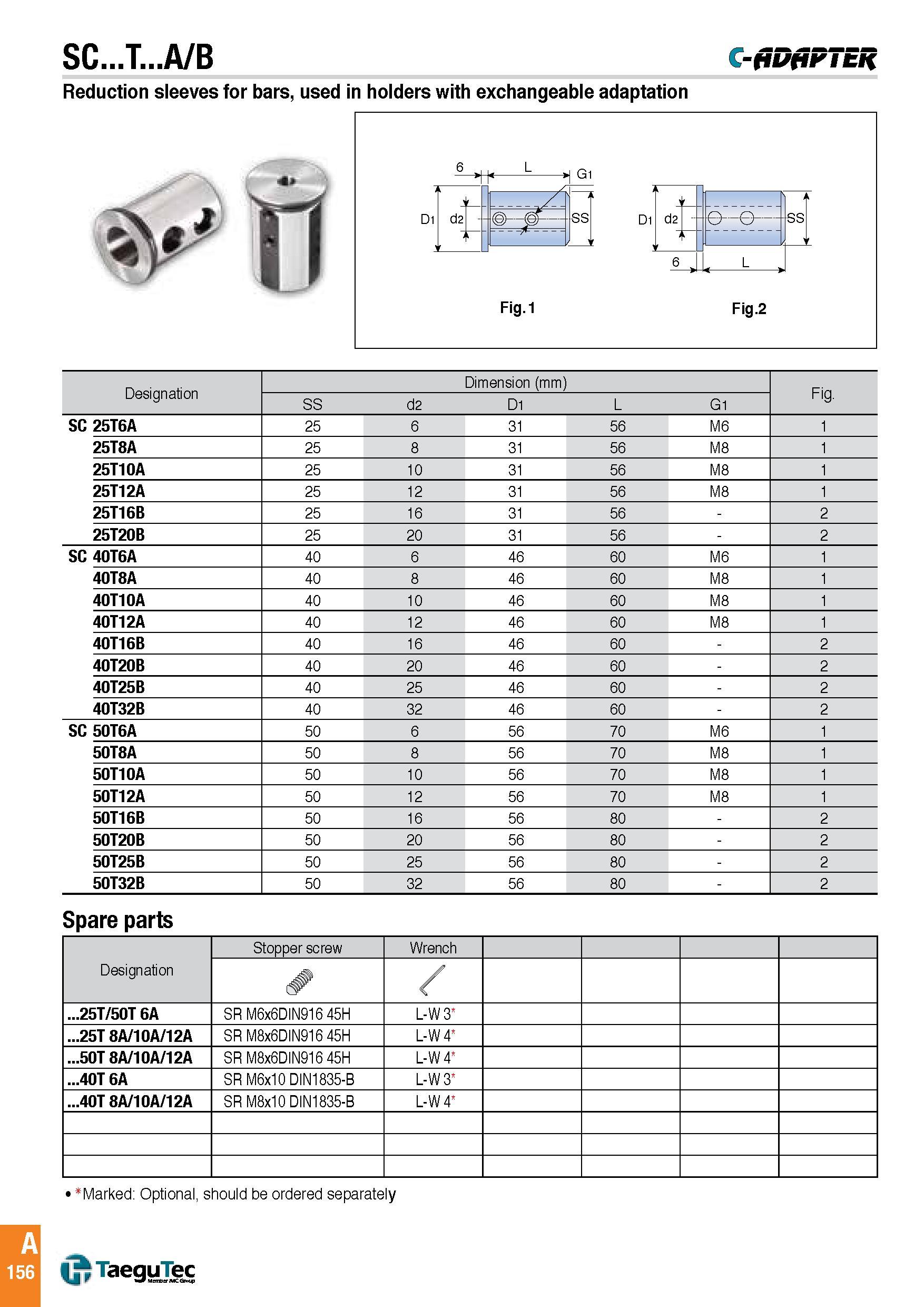

SC...T...A/B -fiufiFTER Reduction sleeves for bars, used in holders with exchangeable adaptation 'V ri Designation Dimension (mm) Fig. SS d2 D1 L G1 SC 25T6A 25 6 31 56 M6 1 25T8A 25 8 31 56 M8 1 25T10A 25 10 31 56 M8 1 25T12A 25 12 31 56 M8 1 25T16B 25 16 31 56 - 2 25T20B 25 20 31 56 - 2 SC 40T6A 40 6 46 60 M6 1 40T8A 40 8 46 60 M8 1 40T10A 40 10 46 60 M8 1 40T12A 40 12 46 60 M8 1 40T16B 40 16 46 60 - 2 40T20B 40 20 46 60 - 2 40T25B 40 25 46 60 - 2 40T32B 40 32 46 60 - 2 SC 50T6A 50 6 56 70 M6 1 50T8A 50 8 56 70 M8 1 50T10A 50 10 56 70 M8 1 50T12A 50 12 56 70 M8 1 50T16B 50 16 56 80 - 2 50T20B 50 20 56 80 - 2 50T25B 50 25 56 80 - 2 50T32B 50 32 56 80 - 2 Spare parts Designation Stopper screw Wrench C / ...25T/50T 6A SR M6x6DIN916 45H L-W 3 ...25T 8A/10A/12A SR M8x6DIN916 45H L-W 4 ...50T 8A/10A/12A SR M8x6DIN916 45H L-W 4 ...40T 6A SR M6x10 DIN1835-B L-W 3 ...40T 8A/10A/12A SR M8x10 DIN1835-B L-W 4 A 156 Marked Optional, should be ordered separately TaeguTec
