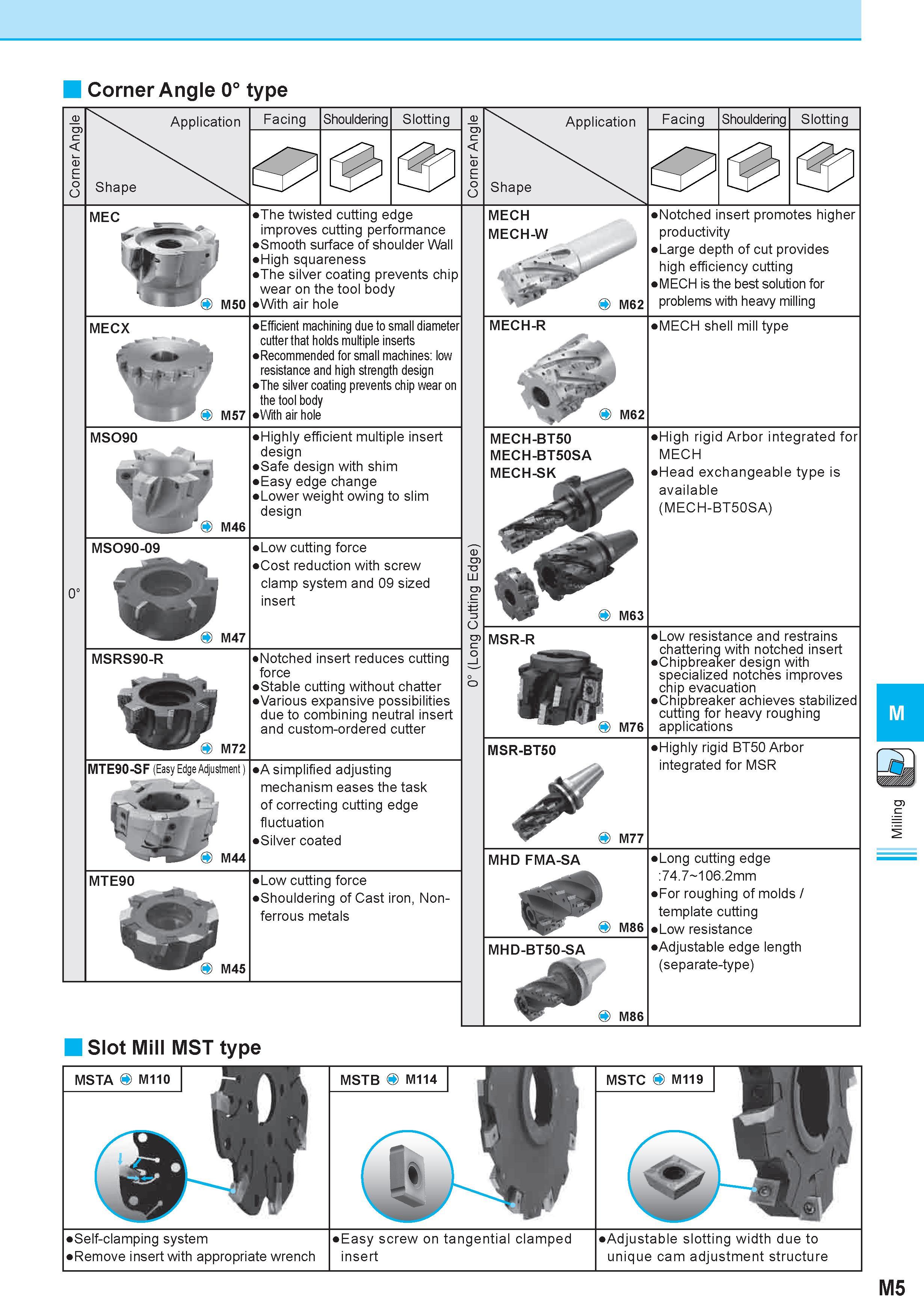

Corner Angle 0° type Application Shape Facing Shouldering Slotting Application Shape Facing Shouldering Slotting MEC O M50 The twisted cutting edge improves cutting performance Smooth surface of shoulder Wall High squareness The silver coating prevents chip wear on the tool body With air hole MECX O M57 Efficient machining due to small diameter cutter that holds multiple inserts Recommended for small machines: low resistance and high strength design The silver coating prevents chip wear on the tool body With air hole MSO90 O M46 Highly efficient multiple insert design Safe design with shim Easy edge change Lower weight owing to slim design MSO90-09 Low cutting force Cost reduction with screw clamp system and 09 sized insert O M47 MSRS90-R Notched insert reduces cutting force Stable cutting without chatter Various expansive possibilities due to combining neutral insert and custom-ordered cutter MTE90-SF (Easy Edge Adjustment ) O M44 A simplified adjusting mechanism eases the task of correcting cutting edge fluctuation Silver coated MTE90 Low cutting force Shouldering of Cast iron, Non-ferrous metals O M45 Slot Mill MST type MECH MECH-W O M62 Notched insert promotes higher productivity Large depth of cut provides high efficiency cutting MECH is the best solution for problems with heavy milling MECH-R MECH shell mill type O M62 MECH-BT50 MECH-BT50SA MECH-SK o High rigid Arbor integrated for MECH Head exchangeable type is available (MECH-BT50SA) O M63 MSR-R O M76 Low resistance and restrains chattering with notched insert Chipbreaker design with specialized notches improves chip evacuation Chipbreaker achieves stabilized cutting for heavy roughing applications MSR-BT50 Highly rigid BT50 Arbor integrated for MSR M77 MHD FMA-SA M86 MHD-BT50-SA Long cutting edge :74.7 106.2mm For roughing of molds template cutting Low resistance Adjustable edge length (separate-type) O M86 Self-clamping system Remove insert with appropriate wrench Easy screw on tangential clamped insert Adjustable slotting width due to unique cam adjustment structure M5 0
