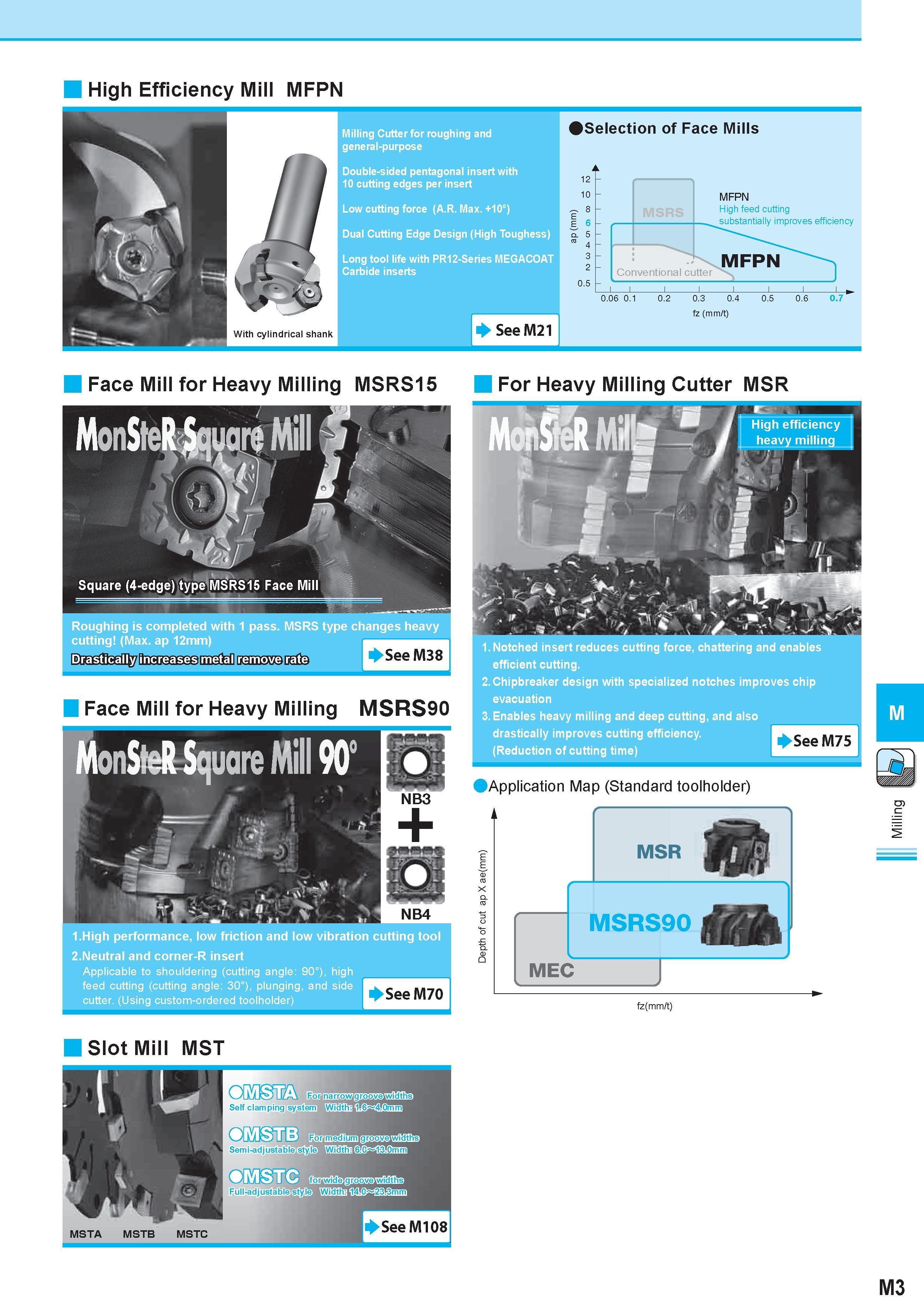

High Efficiency Mill MFPN Milling Cutter for roughing and general-purpose Double-sided pentagonal insert with 10 cutting edges per insert Low cutting force (A.R. Max. +10°) Dual Cutting Edge Design (High Toughess) Long tool life with PR12-Series MEGACOAT Carbide inserts Selection of Face Mills 12 10 8 6 n 5 4 3 2 0.5 MSRS MFPN High feed cutting substantially improves efficiency 0.06 0.1 0.2 0.3 0.4 0.5 0.6 0.7 fz (mm/t) Face Mill for Heavy Milling MSRS15 For Heavy Milling Cutter MSR a /, - L11 High efficiency f heavy milling A i m Square (4-edge) type MSRS15 Face Mill Roughing is completed with 1 pass. MSRS type changes heavy Drastically increases metal remove rate See M38 Face Mill for Heavy Milling MSRS 90 M mSteHSquare Mill 90° - ST :H 1.High performance, low friction and low vibration cutting tool 2.Neutral and corner-R insert Applicable to shouldering (cutting angle: 90°), high feed cutting (cutting angle: 30°), plunging, and side cutter. (Using custom-ordered toolholder) w f 7; i ki 1.Notched insert reduces cutting force, chattering and enables efficient cutting. 2. Chipbreaker design with specialized notches improves chip evacuation 3. Enables heavy milling and deep cutting, and also drastically improves cutting efficiency. (Reduction of cutting time) Application Map (Standard toolholder) See M75 fz(mm/t) Slot Mill MST MSTA Self clamping MSTB Semi-adjustable MSTC focwjlde gflso \wKIIi Full-adjustable MSTA MSTB MSTC M3
