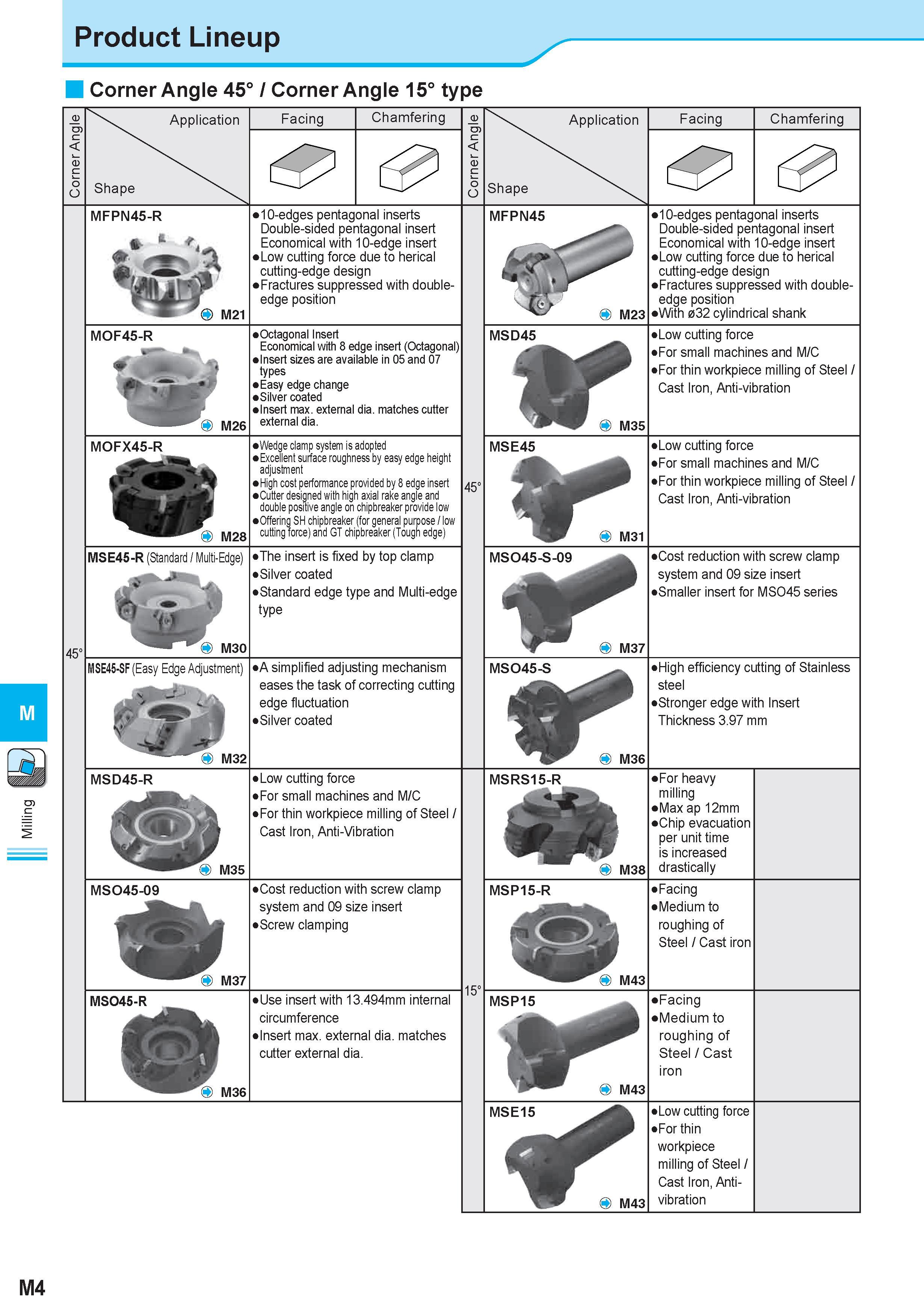

Milling Product Lineup Corner Angle 45° Corner Angle 15° type Application Shape Facing Chamfering Application Shape Facing Chamfering MFPN45-R M21 10-edges pentagonal inserts Double-sided pentagonal insert Economical with 10-edge insert Low cutting force due to herical cutting-edge design Fractures suppressed with doubleedge position MFPN45 O M23 10-edges pentagonal inserts Double-sided pentagonal insert Economical with 10-edge insert Low cutting force due to herical cutting-edge design Fractures suppressed with doubleedge position With 032 cylindrical shank MOF45-R O M26 Octagonal Insert Economical with 8 edge insert (Octagonal) Insert sizes are available in 05 and 07 types Easy edge change Silver coated Insert max. external dia. matches cutter external dia. MSD45 Low cutting force For small machines and M/C For thin workpiece milling of Steel Cast Iron, Anti-vibration O M35 MOFX45-R O M28 Wedge clamp system is adopted Excellent surface roughness by easy edge height adjustment High cost performance provided by 8 edge insert Cutter designed with high axial rake angle and double positive angle on chipbreaker provide low Offering SH chipbreaker (for general purpose low cutting force) and GT chipbreaker (Tough edge) MSE45 45' O M31 Low cutting force For small machines and M/C For thin workpiece milling of Steel Cast Iron, Anti-vibration 45' MSE45-R (Standard Multi-Edge) O M30 The insert is fixed by top clamp Silver coated Standard edge type and Multi-edge type MS045-S-09 Cost reduction with screw clamp system and 09 size insert Smaller insert for MSO45 series M37 MSE45-SF (Easy Edge Adjustment) A simplified adjusting mechanism eases the task of correcting cutting edge fluctuation Silver coated MS045-S O M32 High efficiency cutting of Stainless steel Stronger edge with Insert Thickness 3.97 mm M36 MSD45-R Low cutting force For small machines and M/C For thin workpiece milling of Steel Cast Iron, Anti-Vibration MSRS15-R O M35 O M38 For heavy milling Max ap 12mm Chip evacuation per unit time is increased drastically MSO45-09 Cost reduction with screw clamp system and 09 size insert Screw clamping MSP15-R O M37 MS045-R Use insert with 13.494mm internal circumference Insert max. external dia. matches cutter external dia. 15' Facing Medium to roughing of Steel Cast iron O M43 MSP15 O M36 Facing Medium to roughing of Steel Cast iron O M43 MSE15 O M43 Low cutting force For thin workpiece milling of Steel Cast Iron, Antivibration M4
