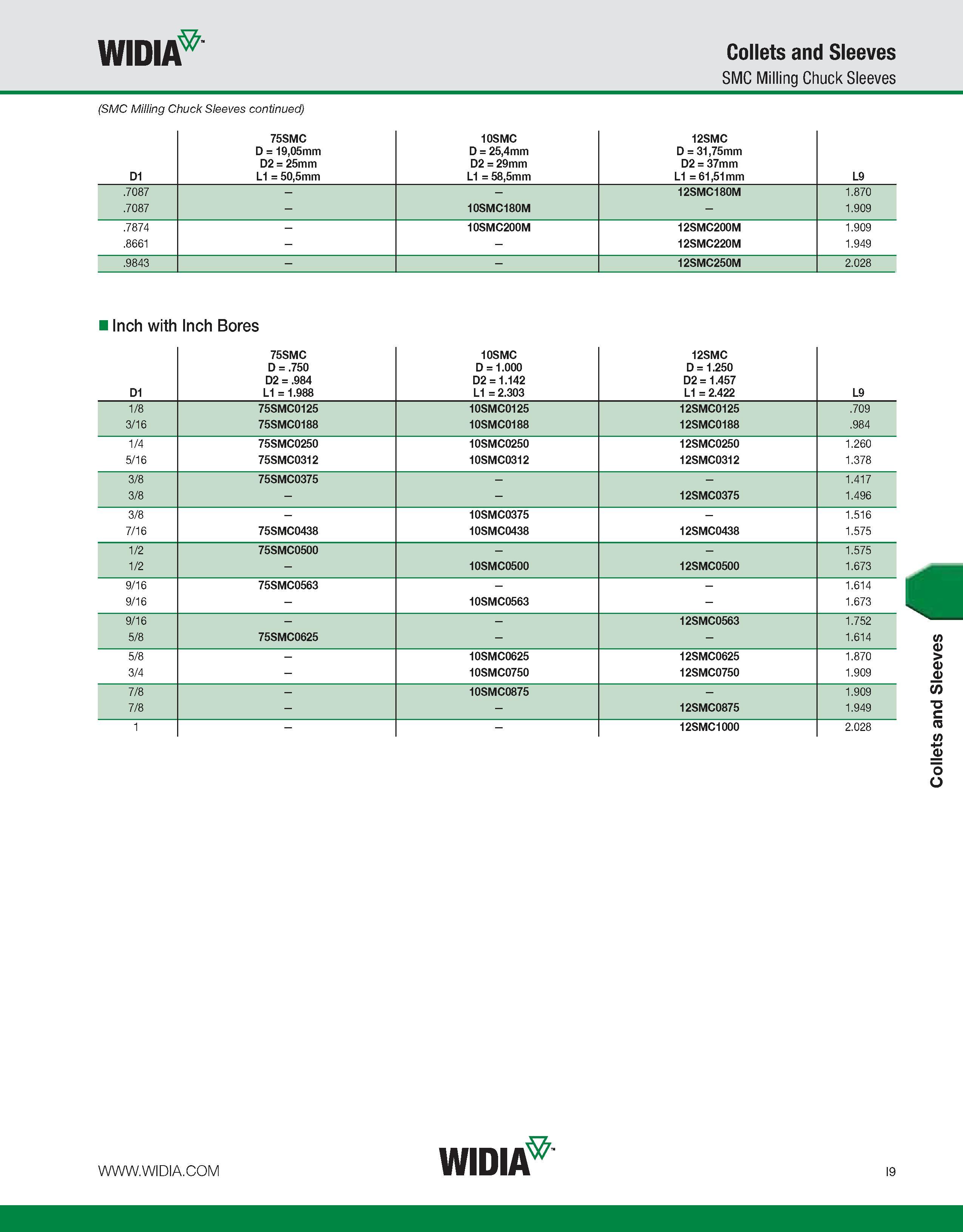

WIDIA Collets and Sleeves SMC Milling Chuck Sleeves (SMC Milling Chuck Sleeves continued) D1 75SMC D = 19,05mm D2 = 25mm L1 = 50,5mm 10SMC D = 25,4mm D2 = 29mm L1 = 58,5mm 12SMC D = 31,75mm D2 = 37mm L1 = 61,51mm L9 .7087 12SMC180M 1.870 .7087 - 10SMC180M - 1.909 .7874 - 10SMC200M 12SMC200M 1.909 .8661 12SMC220M 1.949 .9843 12SMC250M 2.028 I Inch with Inch Bores D1 75SMC D = .750 D2 = .984 L1 =1.988 10SMC D = 1.000 D2 = 1.142 L1 = 2.303 12SMC D = 1.250 D2 = 1.457 L1 = 2.422 L9 1/8 75SMC0125 10SMC0125 12SMC0125 .709 3/16 75SMC0188 10SMC0188 12SMC0188 .984 1/4 75SMC0250 10SMC0250 12SMC0250 1.260 5/16 75SMC0312 10SMC0312 12SMC0312 1.378 3/8 75SMC0375 1.417 3/8 12SMC0375 1.496 3/8 - 10SMC0375 - 1.516 7/16 75SMC0438 10SMC0438 12SMC0438 1.575 1/2 75SMC0500 1.575 1/2 - 10SMC0500 12SMC0500 1.673 9/16 75SMC0563 1.614 9/16 - 10SMC0563 - 1.673 9/16 12SMC0563 1.752 5/8 75SMC0625 1.614 5/8 - 10SMC0625 12SMC0625 1.870 3/4 - 10SMC0750 12SMC0750 1.909 7/8 - 10SMC0875 - 1.909 7/8 12SMC0875 1.949 1 12SMC1000 2.028 Collets and Sleeves
