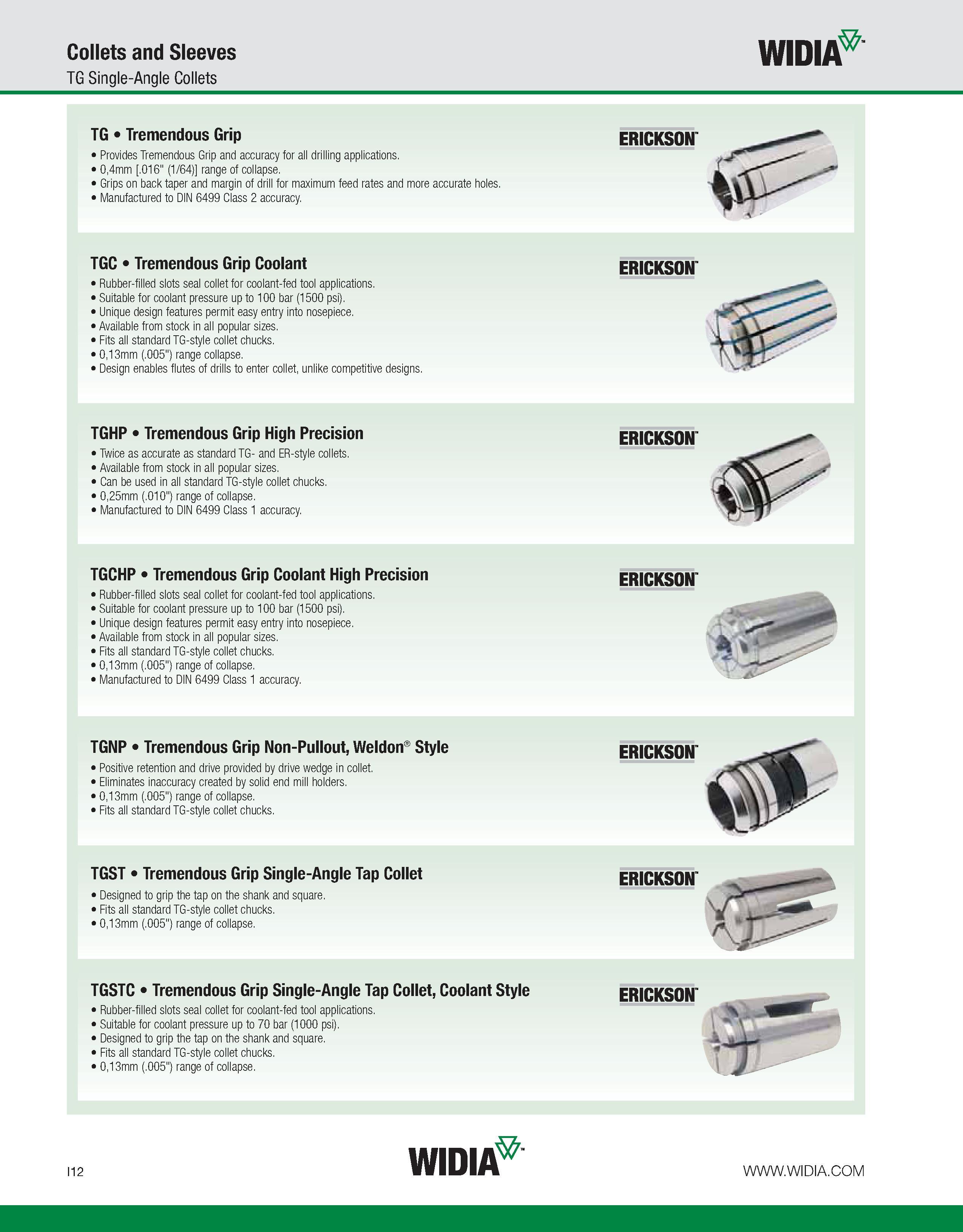

Collets and Sleeves TG Single-Angle Collets WIDIA TG Tremendous Grip Provides Tremendous Grip and accuracy for all drilling applications. 0,4mm .016" (1/64) range of collapse. Grips on back taper and margin of drill for maximum feed rates and more accurate holes. Manufactured to DIN 6499 Class 2 accuracy. ERICKSON TGC Tremendous Grip Coolant Rubber-filled slots seal collet for coolant-fed tool applications. Suitable for coolant pressure up to 100 bar (1500 psi). Unique design features permit easy entry into nosepiece. Available from stock in all popular sizes. Fits all standard TG-style collet chucks. 0,13mm (.005") range collapse. Design enables flutes of drills to enter collet, unlike competitive designs. ERICKSON TGHP Tremendous Grip High Precision Twice as accurate as standard TG- and ER-style collets. Available from stock in all popular sizes. Can be used in all standard TG-style collet chucks. 0,25mm (.010") range of collapse. Manufactured to DIN 6499 Class 1 accuracy. ERICKSON TGCHP Tremendous Grip Coolant High Precision Rubber-filled slots seal collet for coolant-fed tool applications. Suitable for coolant pressure up to 100 bar (1500 psi). Unique design features permit easy entry into nosepiece. Available from stock in all popular sizes. Fits all standard TG-style collet chucks. 0,13mm (.005") range of collapse. Manufactured to DIN 6499 Class 1 accuracy. ERICKSON TGNP Tremendous Grip Non-Pullout, Weldon Style Positive retention and drive provided by drive wedge in collet. Eliminates inaccuracy created by solid end mill holders. 0,13mm (.005") range of collapse. Fits all standard TG-style collet chucks. TGSTC Tremendous Grip Single-Angle Tap Collet, Coolant Style Rubber-filled slots seal collet for coolant-fed tool applications. Suitable for coolant pressure up to 70 bar (1000 psi). Designed to grip the tap on the shank and square. Fits all standard TG-style collet chucks. 0,13mm (.005") range of collapse. I12 WIDIA
