922 Каталог WIDIA 2011 Инструментальная оснастка для металлорежущих станков Стр.I14

Каталог WIDIA 2011 Инструментальная оснастка Стр. I14 0922 ENG Lab2u

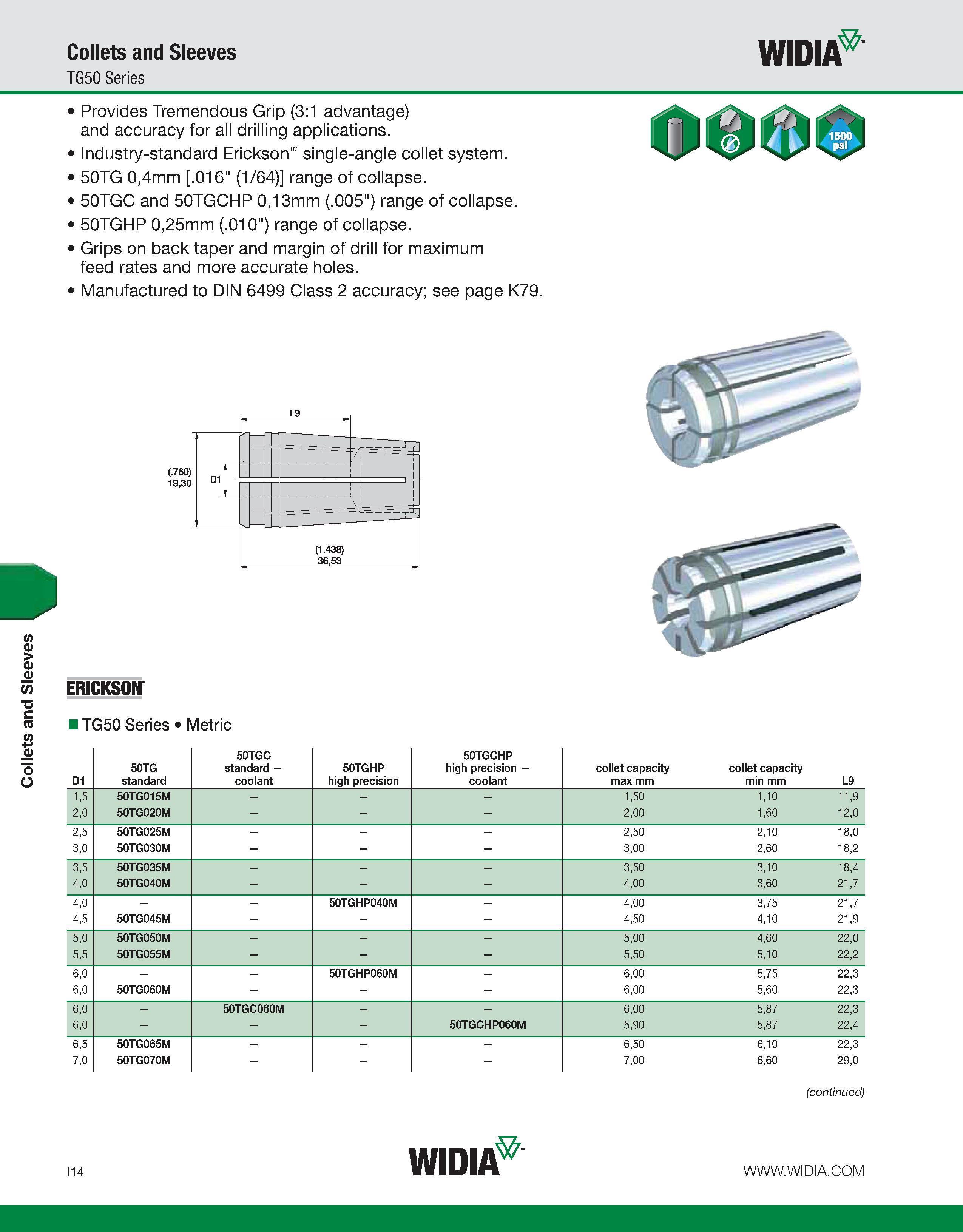

Collets and Sleeves Collets and Sleeves WIDIA TG50 Series Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. Industry-standard Erickson single-angle collet system. 50TG 0,4mm .016” (1/64) range of collapse. 50TGC and 50TGCHP 0,13mm (.005”) range of collapse. 50TGHP 0,25mm (.010”) range of collapse. Grips on back taper and margin of drill for maximum feed rates and more accurate holes. Manufactured to DIN 6499 Class 2 accuracy; see page K79. ERICKSON TG50 Series Metric (continued)
