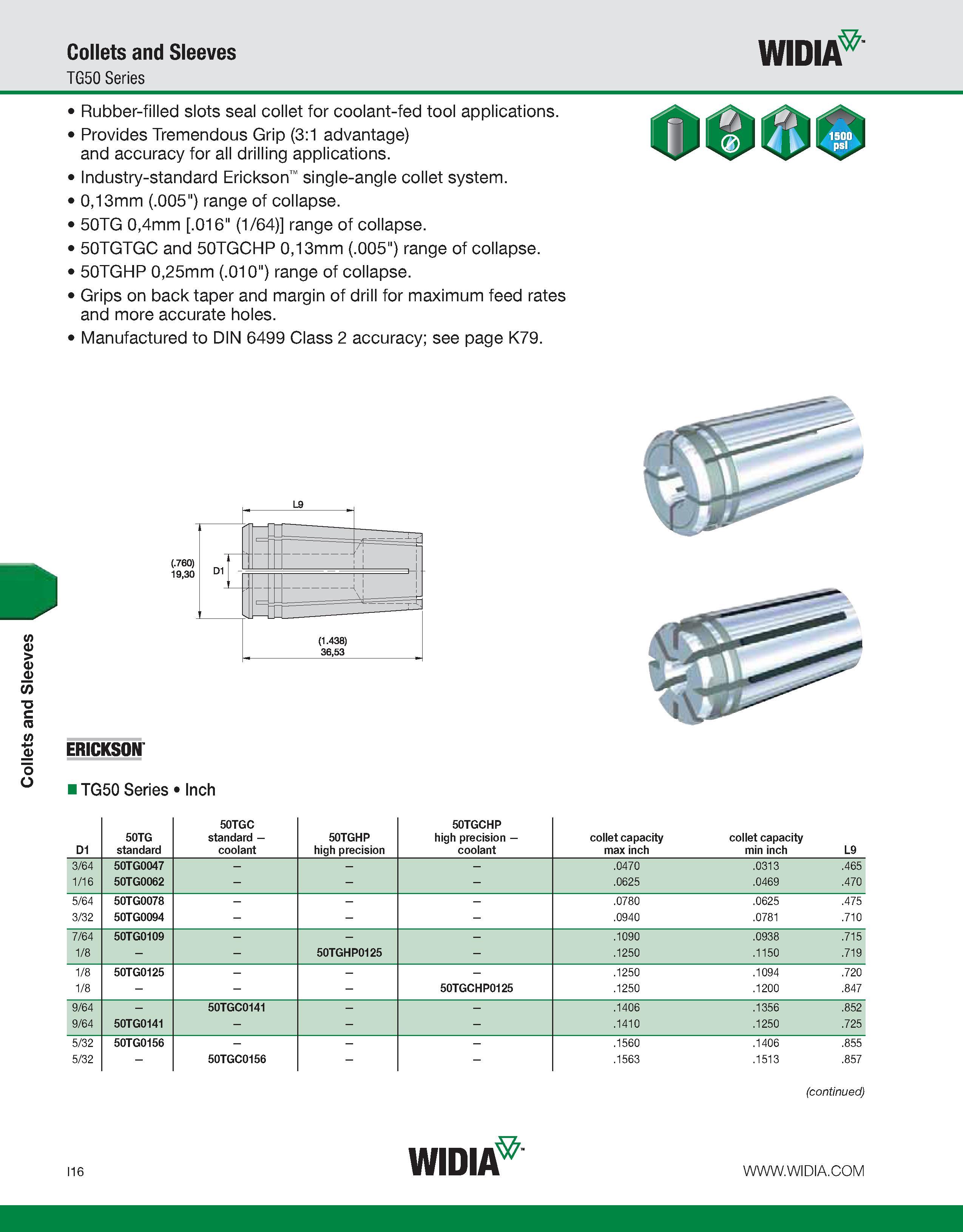

Collets and Sleeves Collets and Sleeves TG50 Series WIDIA Rubber-filled slots seal collet for coolant-fed tool applications. Provides Tremendous Grip (3:1 advantage) and accuracy for all drilling applications. Industry-standard Erickson single-angle collet system. 0,13mm (.005") range of collapse. 50TG 0,4mm .016" (1/64) range of collapse. 50TGTGC and 50TGCHP 0,13mm (.005") range of collapse. 50TGHP 0,25mm (.010") range of collapse. Grips on back taper and margin of drill for maximum feed rates and more accurate holes. Manufactured to DIN 6499 Class 2 accuracy; see page K79. ERICKSON i TG50 Series Inch (continued) I16 WIDIA
