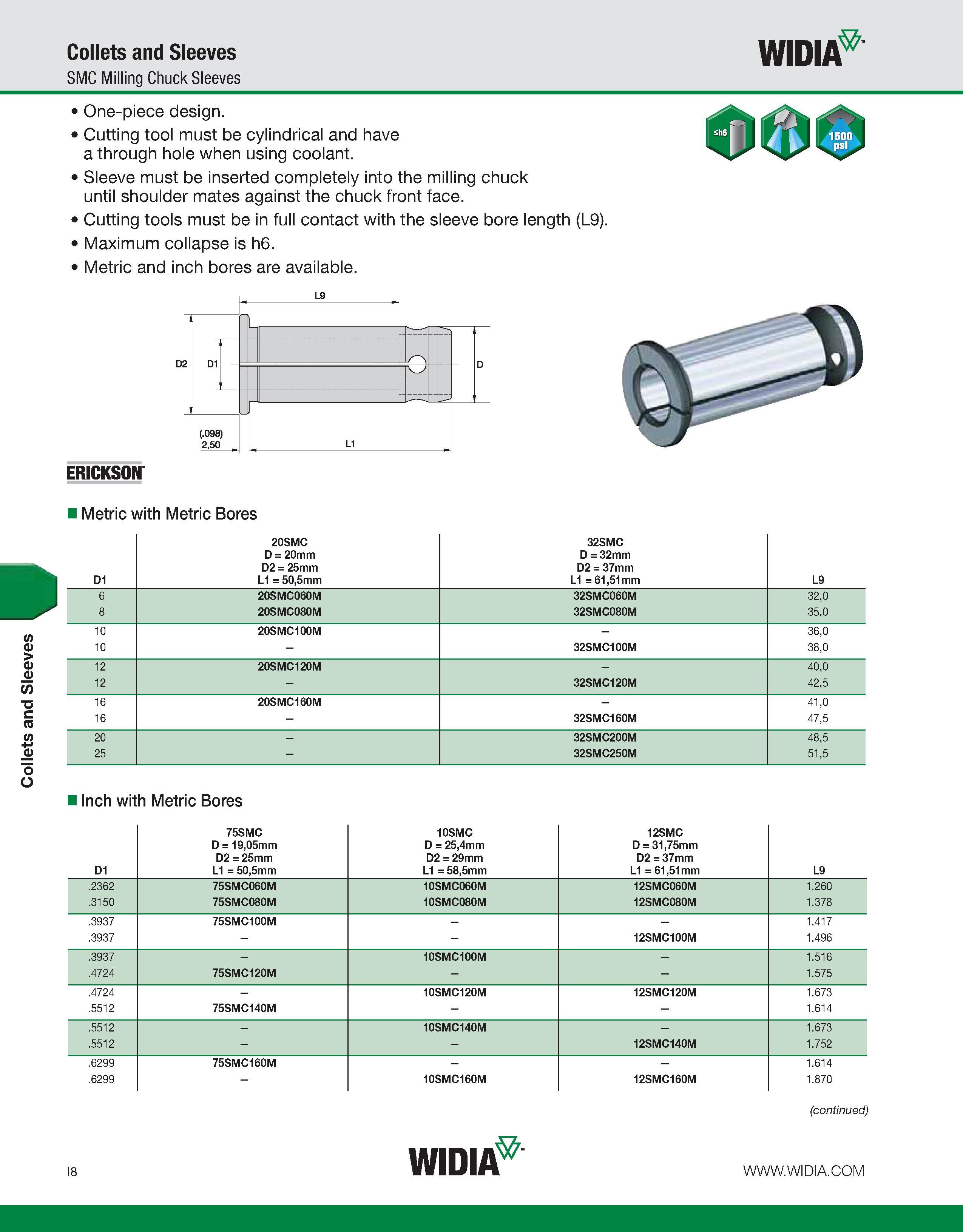

Collets and Sleeves Collets and Sleeves SMC Milling Chuck Sleeves WIDIA One-piece design. Cutting tool must be cylindrical and have a through hole when using coolant. Sleeve must be inserted completely into the milling chuck until shoulder mates against the chuck front face. Cutting tools must be in full contact with the sleeve bore length (L9) Maximum collapse is h6. Metric and inch bores are available. ERICKSON Metric with Metric Bores D1 20SMC D = 20mm D2 = 25mm L1 = 50,5mm 32SMC D = 32mm D2 = 37mm L1 = 61,51mm L9 6 20SMC060M 32SMC060M 32,0 8 20SMC080M 32SMC080M 35,0 10 20SMC100M - 36,0 10 - 32SMC100M 38,0 12 20SMC120M - 40,0 12 - 32SMC120M 42,5 16 20SMC160M - 41,0 16 - 32SMC160M 47,5 20 - 32SMC200M 48,5 25 - 32SMC250M 51,5 Inch with Metric Bores D1 75SMC D = 19,05mm D2 = 25mm L1 = 50,5mm 10SMC D = 25,4mm D2 = 29mm L1 = 58,5mm 12SMC D = 31,75mm D2 = 37mm L1 = 61,51mm L9 .2362 75SMC060M 10SMC060M 12SMC060M 1.260 .3150 75SMC080M 10SMC080M 12SMC080M 1.378 .3937 75SMC100M 1.417 .3937 12SMC100M 1.496 .3937 - 10SMC100M - 1.516 .4724 75SMC120M 1.575 .4724 - 10SMC120M 12SMC120M 1.673 .5512 75SMC140M 1.614 .5512 - 10SMC140M - 1.673 .5512 12SMC140M 1.752 .6299 75SMC160M 1.614 .6299 - 10SMC160M 12SMC160M 1.870 (continued)
