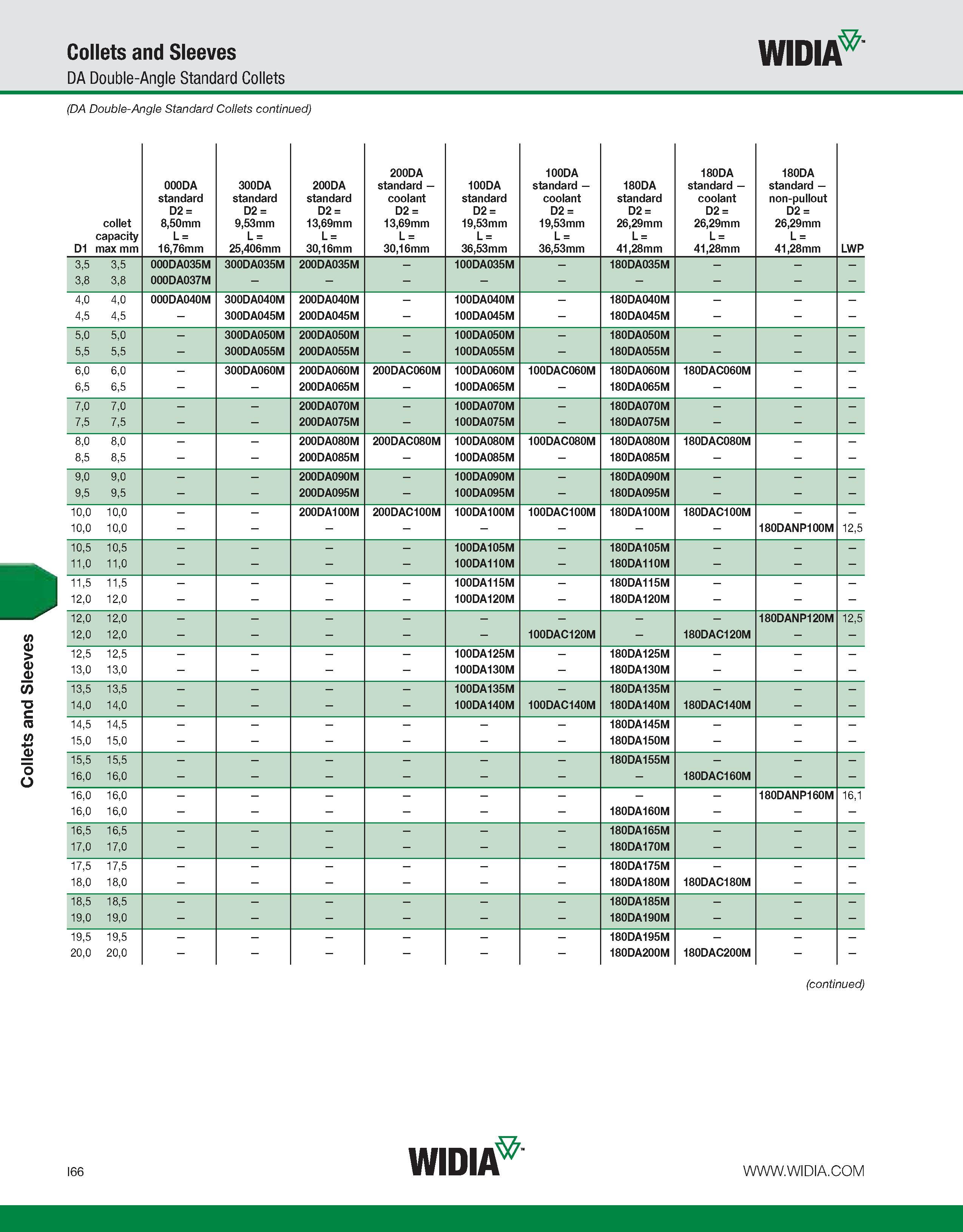

Collets and Sleeves Collets and Sleeves WIDIA DA Double-Angle Standard Collets (DA Double-Angle Standard Collets continued) D1 collet capacity max mm 000DA standard D2 = 8,50mm L = 16,76mm 300DA standard D2 = 9,53mm L = 25,406mm 200DA standard D2 = 13,69mm L = 30,16mm 200DA standard -coolant D2 = 13,69mm L = 30,16mm 100DA standard D2 = 19,53mm L = 36,53mm 100DA standard -coolant D2 = 19,53mm L = 36,53mm 180DA standard D2 = 26,29mm L = 41,28mm 180DA standard -coolant D2 = 26,29mm L = 41,28mm 180DA standard -non-pullout D2 = 26,29mm L = 41,28mm LWP 3,5 3,5 000DA035M 300DA035M 200DA035M - 100DA035M - 180DA035M - 3,8 3,8 000DA037M - 4,0 4,0 000DA040M 300DA040M 200DA040M - 100DA040M - 180DA040M - 4,5 4,5 - 300DA045M 200DA045M - 100DA045M - 180DA045M - 5,0 5,0 - 300DA050M 200DA050M - 100DA050M - 180DA050M - 5,5 5,5 - 300DA055M 200DA055M - 100DA055M - 180DA055M - 6,0 6,0 - 300DA060M 200DA060M 200DAC060M 100DA060M 100DAC060M 180DA060M 180DAC060M 6,5 6,5 200DA065M - 100DA065M - 180DA065M - 7,0 7,0 200DA070M - 100DA070M - 180DA070M - 7,5 7,5 200DA075M - 100DA075M - 180DA075M - 8,0 8,0 200DA080M 200DAC080M 100DA080M 100DAC080M 180DA080M 180DAC080M 8,5 8,5 200DA085M - 100DA085M - 180DA085M - 9,0 9,0 200DA090M - 100DA090M - 180DA090M - 9,5 9,5 200DA095M - 100DA095M - 180DA095M - 10,0 10,0 200DA100M 200DAC100M 100DA100M 100DAC100M 180DA100M 180DAC100M 10,0 10,0 180DANP100M 12,5 10,5 10,5 100DA105M - 180DA105M - 11,0 11,0 100DA110M - 180DA110M - 11,5 11,5 100DA115M - 180DA115M - 12,0 12,0 100DA120M - 180DA120M - 12,0 12,0 180DANP120M 12,5 12,0 12,0 - 100DAC120M - 180DAC120M 12,5 12,5 100DA125M - 180DA125M - 13,0 13,0 100DA130M - 180DA130M - 13,5 13,5 100DA135M - 180DA135M - 14,0 14,0 100DA140M 100DAC140M 180DA140M 180DAC140M 14,5 14,5 180DA145M - 15,0 15,0 180DA150M - 15,5 15,5 180DA155M - 16,0 16,0 - 180DAC160M 16,0 16,0 180DANP160M 16,1 16,0 16,0 180DA160M - 16,5 16,5 180DA165M - 17,0 17,0 180DA170M - 17,5 17,5 180DA175M - 18,0 18,0 180DA180M 180DAC180M 18,5 18,5 180DA185M - 19,0 19,0 180DA190M - 19,5 19,5 180DA195M - 20,0 20,0 180DA200M 180DAC200M (continued)
