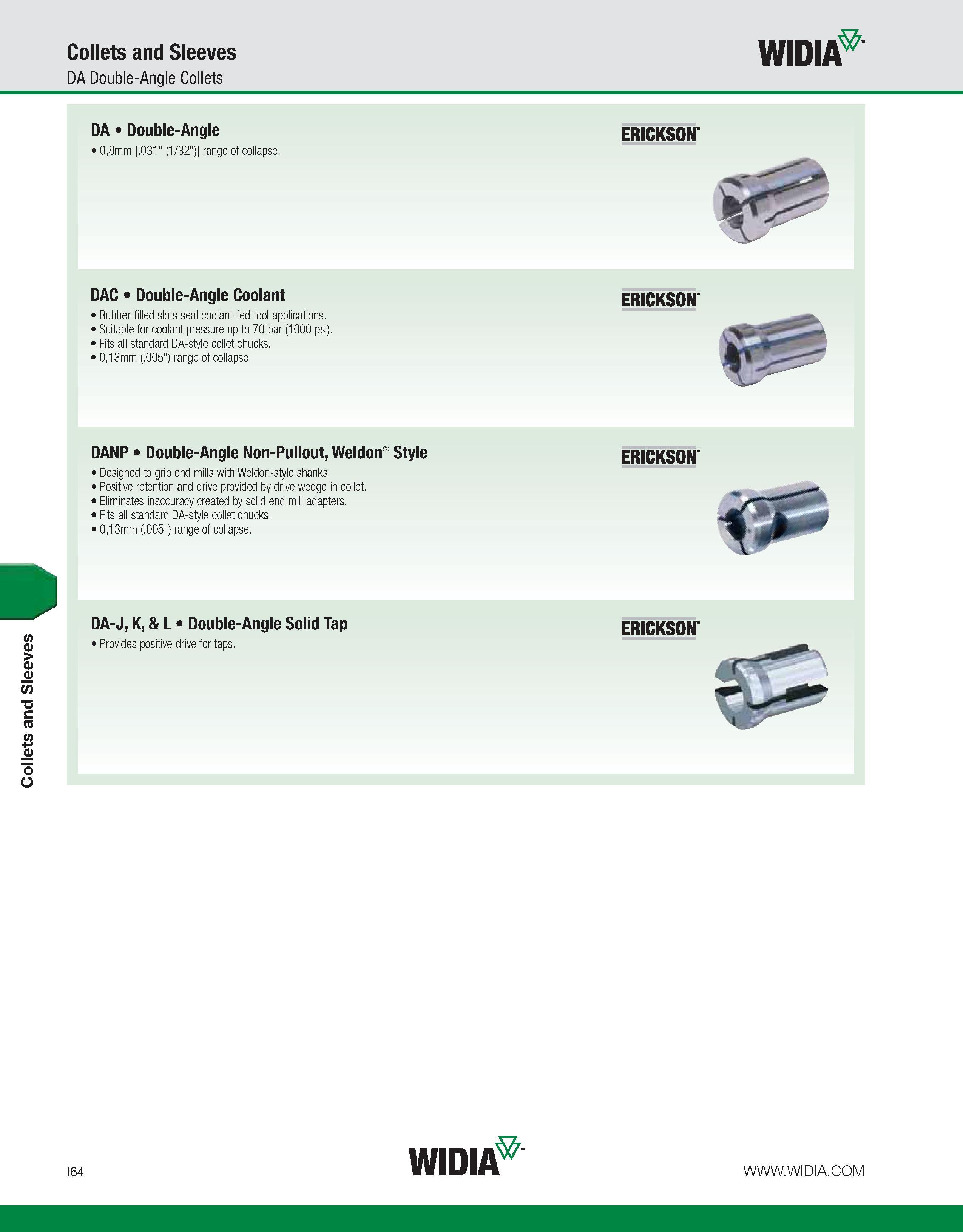

Collets and Sleeves Collets and Sleeves DA Double-Angle Collets WIDIA DA Double-Angle 0,8mm .031" (1/32") range of collapse. ERICKSON DAC Double-Angle Coolant Rubber-filled slots seal coolant-fed tool applications. Suitable for coolant pressure up to 70 bar (1000 psi). Fits all standard DA-style collet chucks. 0,13mm (.005") range of collapse. ERICKSON DANP Double-Angle Non-Pullout, Weldon Style Designed to grip end mills with Weldon-style shanks. Positive retention and drive provided by drive wedge in collet. Eliminates inaccuracy created by solid end mill adapters. Fits all standard DA-style collet chucks. 0,13mm (.005") range of collapse. DA-J, K, & L Double-Angle Solid Tap Provides positive drive for taps. ERICKSON I64 WIDIA
